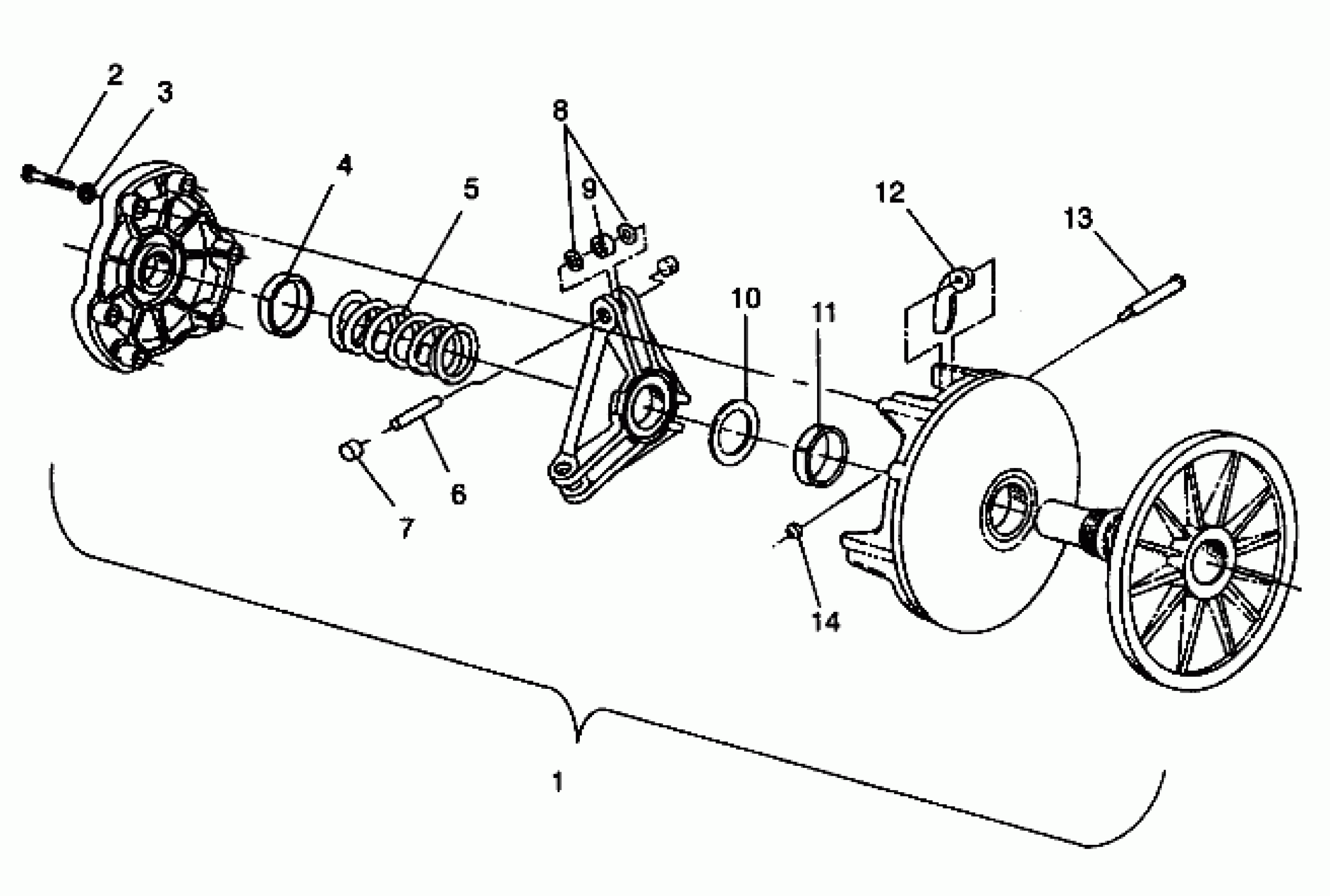

Polaris LITE GT - 0943133 DRIVE CLUTCH ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010021) Diagram

CLUTCH,BASIC,#42(DRIVE) (Incl. 2-4,6-11,13,14)

1321596

Unavailable

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

BEARING, COVER,(10)

3576510

$9.59

SPRING,CLUTCH,SIL/GOLD (Sil./Gold) (Lite GT)

7041286

$56.65

SPRING-(ORANGE) (Orange) (Star GT)

7041060

Unavailable

PIN-ROLLER

5020422

$2.39

BUTTON Substituted by 5430445

5430728

Unavailable

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321457

$40.46

SPACER(10)

5210754

Unavailable

SPACER(10)

5210752

Unavailable

SPACER(10)

5210753

Unavailable

BUSHING, DRIVEN

3576504

$23.99

WEIGHT, .010(6) Substituted by 1321526 (10) (Lite GT)

5630272

$40.46

WEIGHT,#10M RED(6) Substituted by 1321530 (10) (StarLite GT)

5630325

Unavailable

BOLT,SPECIAL(10)

7512266

$3.19

NUT FLEX LOC(10)

7541906

$3.19
