CRANKCASE and CYLINDER ASSEMBLY STARLITE GT 0943127 (49250125010032)

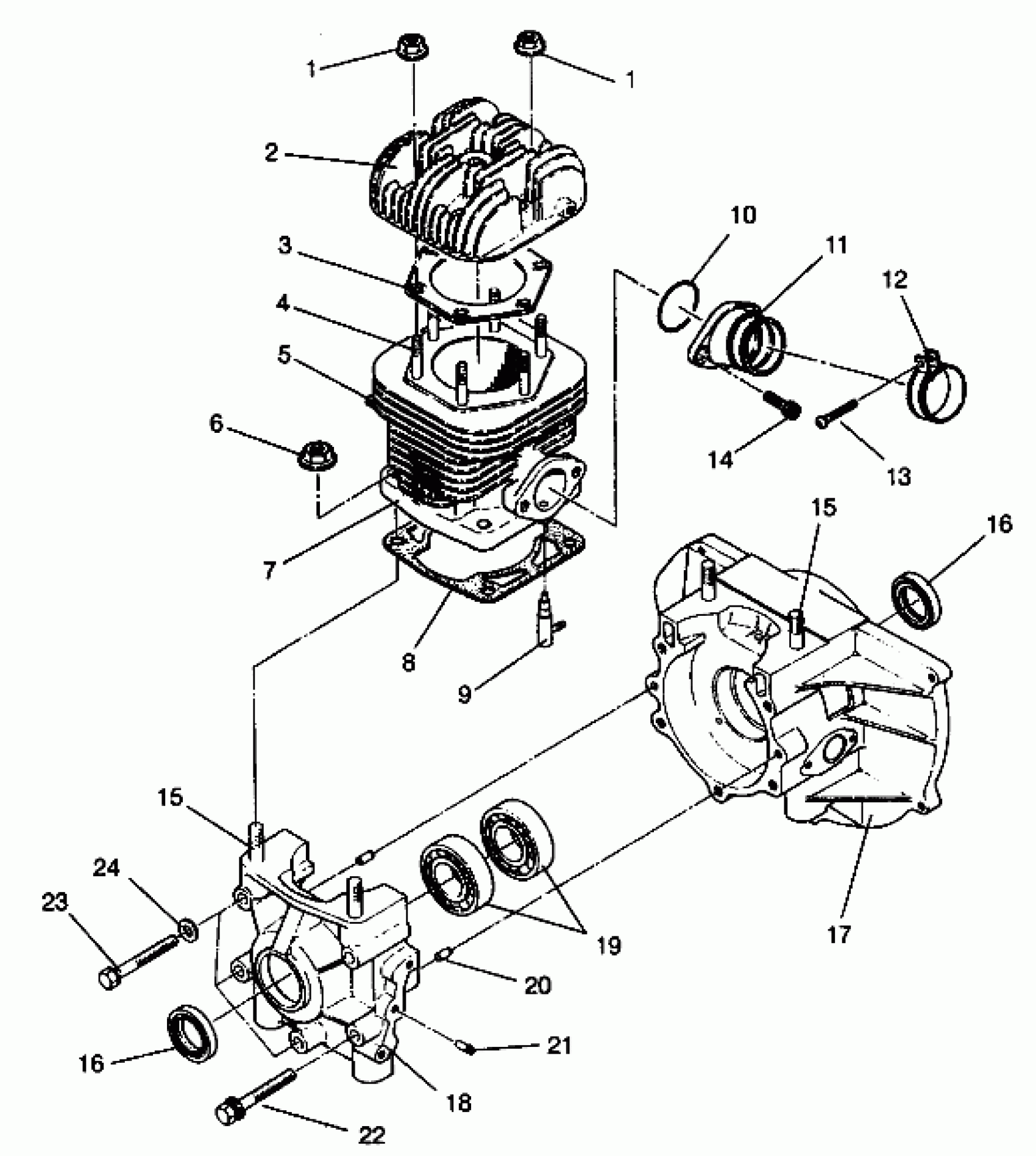

Polaris LITE GT - 0943133 CRANKCASE and CYLINDER ASSEMBLY STARLITE GT 0943127 (49250125010032) Diagram
#
Description
Price
1
NUT-FLANGE(10)
3082910
$2.39
1
NUT-FLANGE(10)
3082910
$2.39
2
HEAD CYLINDER
3081219
Unavailable
3
GASKET HEAD Substituted by 3084019
3081520
Unavailable
4
Stud
3080283
$12.94
5
STUD (10)
3080016
$5.75
6
NUT-FLANGE(10)
3082911
$1.99
7
CYLINDER (Incl. 4,5,9)
3084490
$474.99
8
GASKET,CYLINDER
3080301
Unavailable
9
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
10
O-Ring
3084292
Unavailable
11
ADAPTER
3084291
Unavailable
12
BAND-CARB MTG. (Incl. 13)
3082257
Unavailable
13
SCREW,(10)
3081497
$2.39
14
Bolt, Allen
3081330
$3.99
15
STUD Substituted by 3085713
3080746
Unavailable
15
STUD Substituted by 3085713
3080746
Unavailable
16
SEAL,OIL Substituted by 3082162
3080006
$38.60
16
SEAL,OIL Substituted by 3082162
3080006
$38.60
17
CRANKCASE ASM. (Incl. 15-20,22-24)
3083797
$263.89
17
Crankcase - Recoil Side
-------
Unavailable
18
Crankcase - PTO Side
-------
Unavailable
19
Bearing, Ball
3084580
$31.99
20
PIN, DOWEL Substituted by 3086838
3080103
$7.14
21
PIPE, PULSE
3083798
$9.52
22
BOLT AND WASHER ASSY.
3082096
$1.49
23
BOLT&WASHER ASM.
3083509
Unavailable
24
WASHER
3082505
Unavailable
