CHAINCASE ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010015)

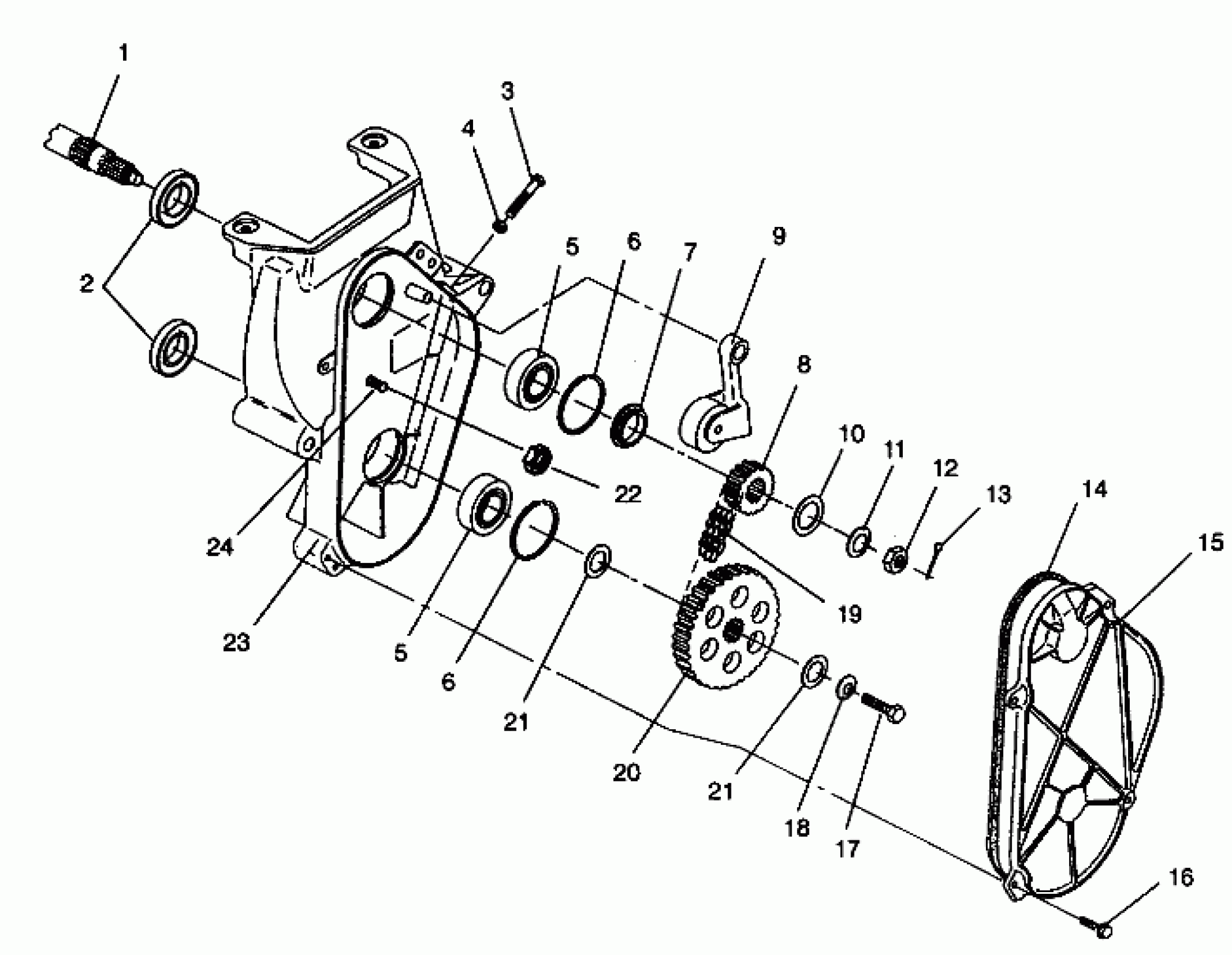

Polaris LITE GT - 0943133 CHAINCASE ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010015) Diagram
#
Description
Price
1
Asm., Jackshaft (See Pg. A17, Ref. 14)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,205,W/O SEAL
3514304
$15.99
5
BEARING,205,W/O SEAL
3514304
$15.99
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPROCKET 16 T (Lite GT)
3221032
Unavailable
8
SPROCKET 15 T (StarLite GT)
3221031
Unavailable
9
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7515350
$3.97
18
WASHER(10)
7571618
$6.39
19
CHAIN 64 PITCH (Lite GT)
3224023
Unavailable
19
CHAIN 66 PITCH (StarLite GT)
3224024
Unavailable
20
SPROCKET 39 T (Lite GT)
3222034
Unavailable
20
SPROCKET-41T (StarLite GT)
3222037
Unavailable
21
BUSHING(10)
7555864
$2.39
21
BUSHING(10)
7555864
$2.39
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
23
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
24
BOLT(10)
7515477
$34.99
