CARBURETOR ASSEMBLY LITE GT 0943133 (49250125010036)

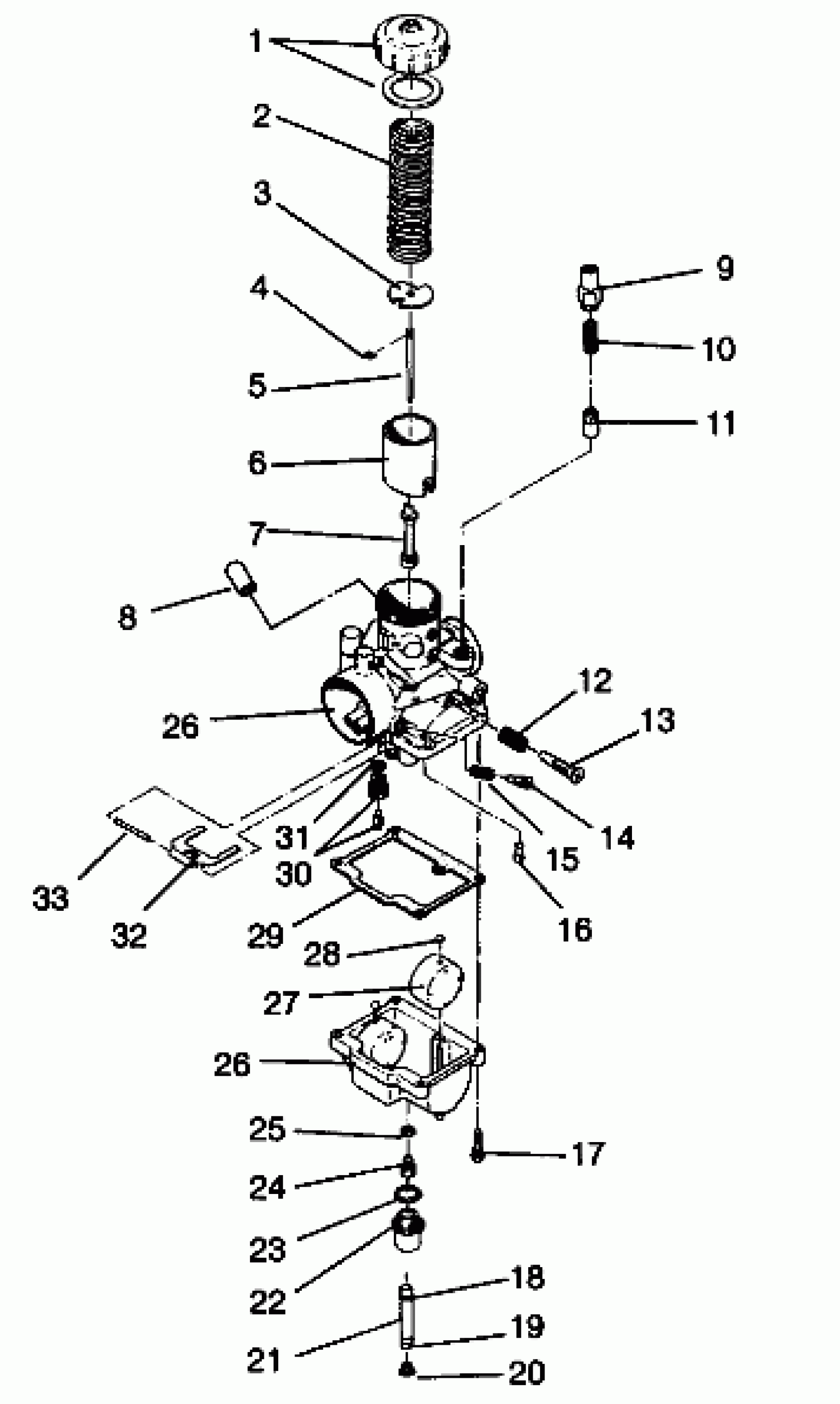

Polaris LITE GT - 0943133 CARBURETOR ASSEMBLY LITE GT 0943133 (49250125010036) Diagram
#
Description
Price
1
TOP,MIX CHAMBER (Incl. Gasket)
3130060
Unavailable
2
SPRING,THROTTLE
3130354
$28.32
3
PLATE,THROTTLE
3130002
$20.22
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE Substituted by 3130155 (5DP7-2)
3130356
$24.27
6
VALVE,THROTTLE,2.5 (2.5)
3130468
$36.41
7
NEEDLE JET, O-6 (169)
3130469
$32.37
8
CAP
3130479
$14.56
9
Cap, Plunger
3130359
$14.56
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
Screw, Throttle Stop
3130324
$19.84
14
SCREW,AIR
3130011
$19.99
15
SPRING,AIR ADJUST
3130012
$8.89
16
JET,PILOT,#35(10) (#35)
3130066
$8.89
17
SCREW & WASHER(10)
3130025
$3.19
18
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
19
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
20
TRAP-PLUG Substituted by 5431893
5431820
Unavailable
21
FUELLINE,600CM,5/16 ID.
8450057-600
Unavailable
22
FITTING,SEDIMENT,CARB. Substituted by 3130573
5020647
Unavailable
23
O RING
3130239
Unavailable
24
JET, MAIN, #145 Substituted by 3130112 (#145)
3130351
Unavailable
25
WASHER (10)
3130014
$1.59
26
CARBURETOR,(LITE) Substituted by 3130688 (Incl. 1-16,23-33)
3130467
Unavailable
26
CARBURETOR,(LITE) Substituted by 3130688 (Incl. 1-16,23-33)
3130467
Unavailable
27
FLOAT ASM
3130021
$40.46
28
CAP,(10)
3130237
$4.03
29
PACKING,FLOAT CHAMBER
3130020
$16.17
30
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
31
PACKING(10)
3130017
$4.03
32
ARM,FLOAT
3130018
$24.27
33
PIN,FLOAT
3130043
Unavailable
