TUNNEL and SEAT ASSEMBLY LITE GT/0933133 and STARLITE GT/0933127 (4923232323001A)

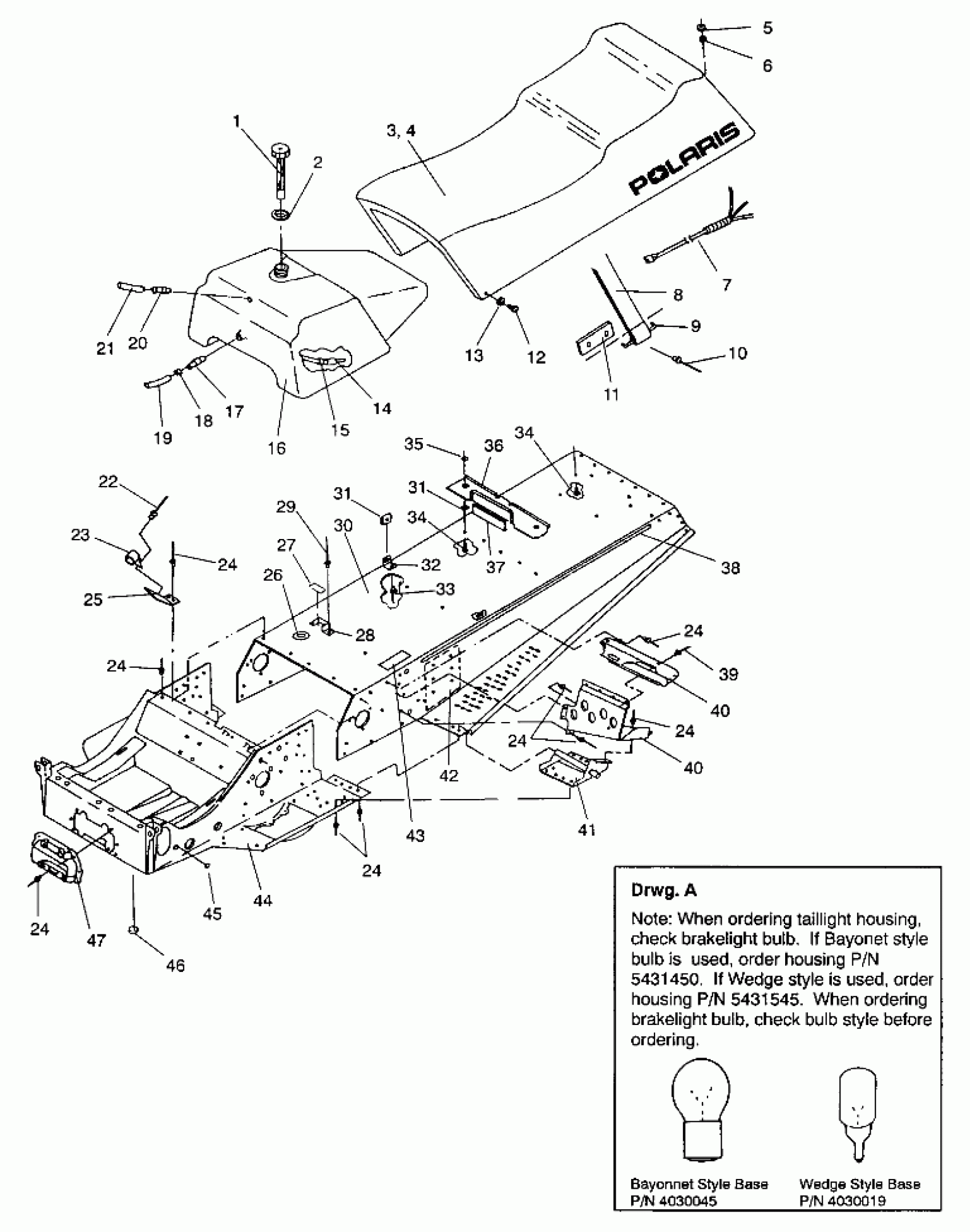

Polaris LITE GT - 0933133 TUNNEL and SEAT ASSEMBLY LITE GT/0933133 and STARLITE GT/0933127 (4923232323001A) Diagram
#
1
CAP, GAS,W/GAUGE Substituted by 2511245
2511213
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM,(LITE GT)
2681518
Unavailable
4
COVER,SEAT,(LITE GT)
2681519
Unavailable
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
WASHER WROUGHT(10)
7558403
$4.79
7
HARNESS-TAILLIGHT
2460237
Unavailable
8
Belt, Seat
7080434
$14.40
9
WIRE-SEAT-BELT
5223864
Unavailable
10
POP RIVET(50)
7621323
$1.49
11
PLATE-SEAT BELT
5210842
Unavailable
12
SCREW(10)
7515111
$7.19
13
WASHER(10)
7555798
$1.49
14
FUELPICKUP,W/STRAINER
7052037
$12.94
15
RING, COMPRESSION(10)
7080402
$1.60
16
TANK, FUEL Substituted by 2511214
5431353
Unavailable
16
TANK,FUEL,(LITE GT) Substituted by 2520179 (Lite GT) (Incl. 14, 15, 17, 19, 20)
2511214
Unavailable
16
TANK, FUEL (StarLite GT) (Incl. 14, 15, 17, 19, 20)
2511215
Unavailable
17
FITTING - OUTLET(10) (Lite GT)
7052023
$24.99
17
FITTING, OUTLET (StarLite GT)
7052056
$6.23
18
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
20
VENT FITTING,TANK Substituted by 5430579 (StarLite GT)
5430669
Unavailable
20
FITTING,(10) (Lite GT)
7052077
$6.39
21
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
22
RIVET,(50)
7621477
$1.19
23
GUIDE, RECOIL (StarLiteGT)
5431385
$10.51
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
BRKT,ROPE GUIDE,BLK. (StarLite GT)
5222687-067
$59.99
26
GROMMET RUBBER
5410021
Unavailable
27
Pad, Oil Tank
5810522
$1.35
28
BRKT,LOW.OILTANK
5222673
Unavailable
29
RIVET(50)
7621453
$3.19
30
TUNNEL, (LITE GT) (Incl. 31 & 42)
1011864
$366.65
31
SPEED NUT(10)
7670021
$6.99
31
SPEED NUT(10)
7670021
$6.99
32
BRKT,CONSOLE/SEAT MT.
5222452-067
$25.59
33
RIVET(50)
7621470
$3.17
34
BOLT(10)
7512193
$2.39
34
BOLT(10)
7512193
$2.39
35
NUT-LOCK(10)
7542122
$1.49
36
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
37
CUSHION,TANK H.D.
5420126
Unavailable
38
DECAL,(42''),TUNNEL [No Longer Available]
7073556
Unavailable
39
RIVET,(50)
7661827
Unavailable
40
FOOTREST ASM,LH
1011830
$140.79
40
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
40
FOOTREST ASM,LH
1011830
$140.79
40
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
41
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
41
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
42
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
43
Pad, Air Box
5810502
Unavailable
44
BULKHEAD,(LITE GT) (Lite GT)
1011815-067
Unavailable
44
BULKHEAD, (STARLITE) (StarLite GT)
1011885-067
Unavailable
45
PLUG, HOLE(10)
7080416
$5.65
46
PLUG-HOLE
7080398
$4.84
47
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
