RACK and TUNNEL EXTENSION LITE GT/0933133 and STARLITE GT/0933127 (4923232323005A)

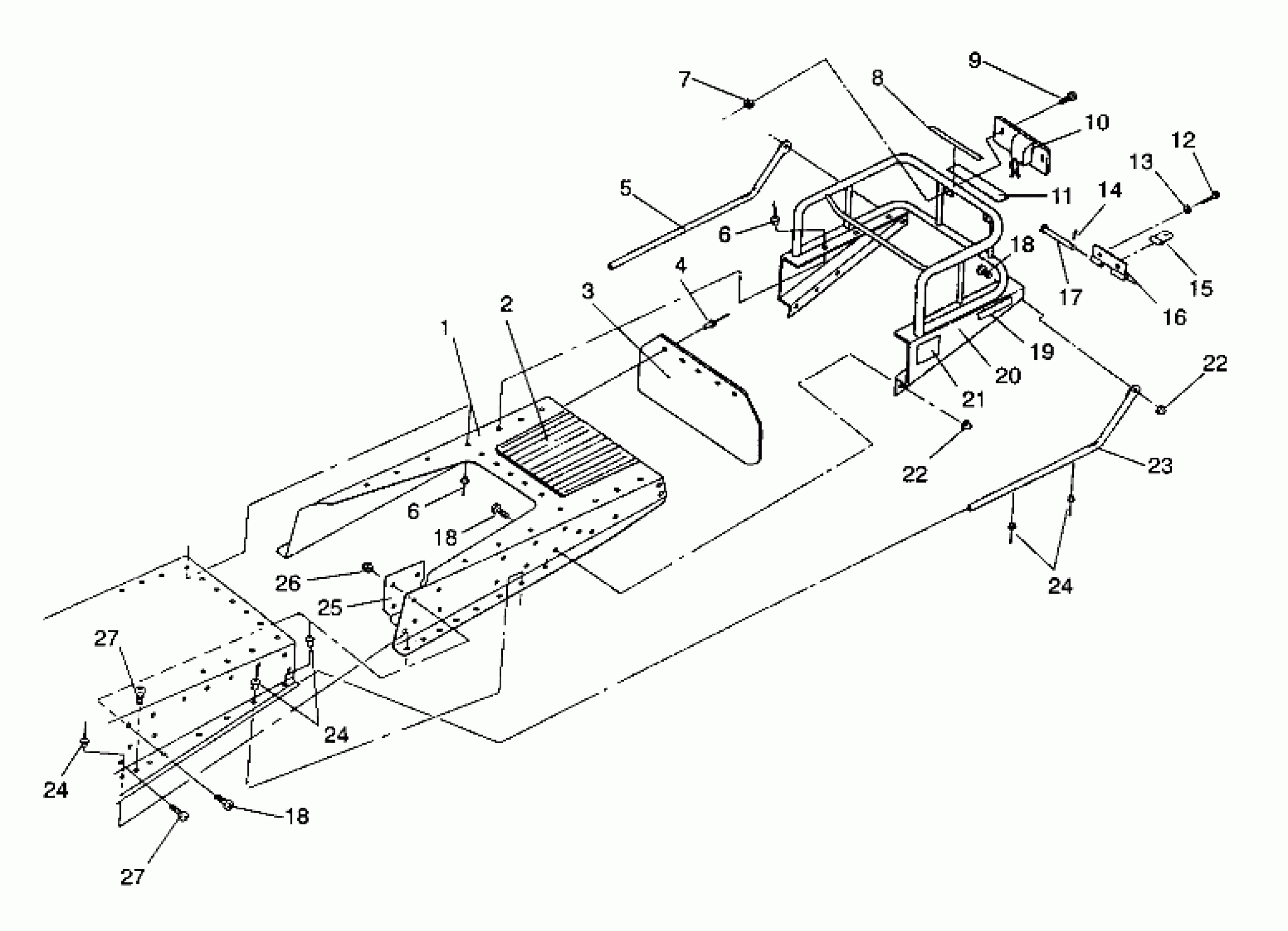

Polaris LITE GT - 0933133 RACK and TUNNEL EXTENSION LITE GT/0933133 and STARLITE GT/0933127 (4923232323005A) Diagram
#
1
PANEL,R.CLOSEOFF
5222608-067
Unavailable
2
Protector, Bed
5410619
$22.06
3
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
4
POP RIVET(50)
7621418
$1.49
5
TUBE,RH TUNNEL,BLK.
5224466-067
$28.95
6
RIVET(50)
7621470
$3.17
6
RIVET(50)
7621470
$3.17
7
NUT(10)
7541925
$1.49
8
DECAL,WARN.,RACK [No Longer Available]
7073290
Unavailable
9
SCREW(10)
7511985
Unavailable
10
TAILLIGHT ASM. (Incl. Bulb, Lens & Gasket)
4030041
$91.19
10
Gasket
4032015
Unavailable
10
LENS-TAIL-LIGHT
4032014
$36.41
10
BULB-TAIL-LIGHT Substituted by 4030063
4030038
Unavailable
10
SPRING,ADJ. (Incl. Bulb, Lens & Gasket)
4032041
Unavailable
11
DECAL,TRACK/RACK,LITE GT [No Longer Available]
7073291
Unavailable
12
SCREW(10)
7512490
$3.99
13
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
14
COTTER PIN(10)
7661401
$1.49
15
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
16
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
17
CLEVIS PIN(10)
7662209
$9.59
18
BOLT(10)
7515107
Unavailable
18
BOLT(10)
7515107
Unavailable
18
BOLT(10)
7515107
Unavailable
19
REFLECTOR RED
2670070
$9.91
20
RACK,REAR,BLK.
2670129-067
Unavailable
21
DECAL,LH,GT(LITE) [No Longer Available]
7073558
Unavailable
21
DECAL,RH.GT(LITE) [No Longer Available]
7073559
Unavailable
22
NUT, LOCK(10)
7542131
Unavailable
22
NUT, LOCK(10)
7542131
Unavailable
23
TUBE,LH TUNNEL,BLK.
5224461-067
Unavailable
24
RIVET(50)
7621453
$3.19
24
RIVET(50)
7621453
$3.19
24
RIVET(50)
7621453
$3.19
25
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
25
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
26
NUT HEX-LOCK(10)
7542101
$3.99
27
BOLT(10)
7515106
$2.39
27
BOLT(10)
7515106
$2.39
