ENGINE MOUNTING LITE GT / 0933133 (4923232323021A)

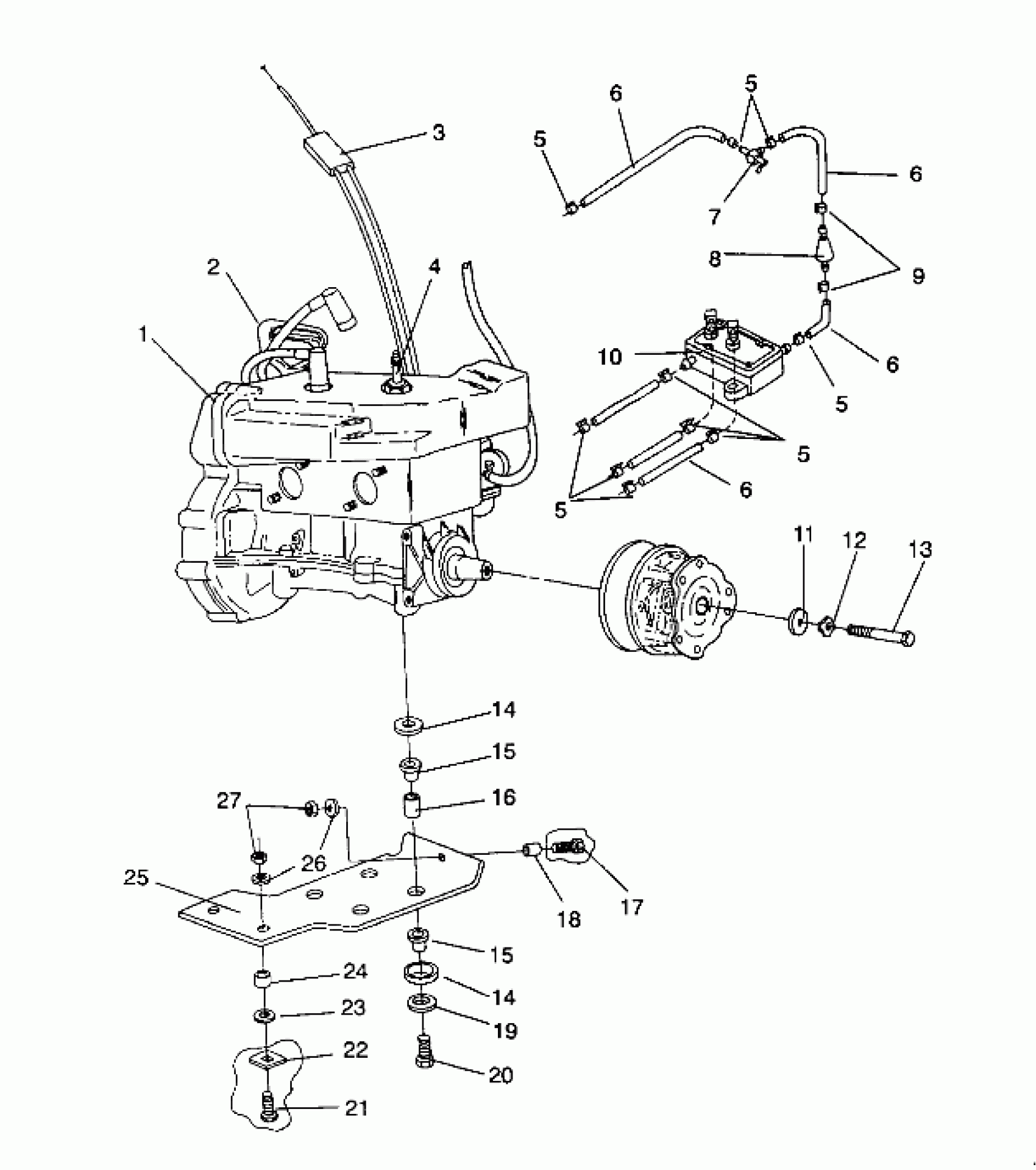

Polaris LITE GT - 0933133 ENGINE MOUNTING LITE GT / 0933133 (4923232323021A) Diagram
#
Description
Price
1
ENG,EC34PM-04 [No Longer Available]
1211523
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE, THROTTLE Substituted by 7080557
7080426
$154.99
4
SPARKPLUG (10)
3070156
$3.99
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
7
VALVE,FUEL SHUT-OFF
7052039
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
CLAMP, HOSE
7080490
Unavailable
10
Fuel Pump (See Pg. 37)
-------
Unavailable
11
WASHER,CLUTCH RETAINER
5010278
Unavailable
12
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
13
BOLT(10)
7512566
$30.79
14
CAP
5221901
Unavailable
14
CAP
5221901
Unavailable
15
DAMPNER-VIB.
5410320
Unavailable
15
DAMPNER-VIB.
5410320
Unavailable
16
BUSHING-MOTOR MT.
5010163
Unavailable
17
BOLT(10)
7515503
$5.43
18
BUSHING
5020397
Unavailable
19
WASHER LOCK(10)
7553101
$3.99
20
BOLT(10)
7512515
$3.19
21
BOLT(10)
7515510
$3.59
22
Plate, Spacer
5211201
$4.95
23
WASHER(10)
7555823
$3.99
24
BUSHING,THREADED
5020562
$3.83
25
PLATE,MOTOR MOUNT Substituted by 5224836
5222292
Unavailable
26
WASHER(10)
7555761
$2.39
27
NUT LOCK(10)
7542403
$3.99
