DRIVE TRAIN ASSEMBLY LITE GT/0933133 and STARLITE GT/0933127 (4923232323015A)

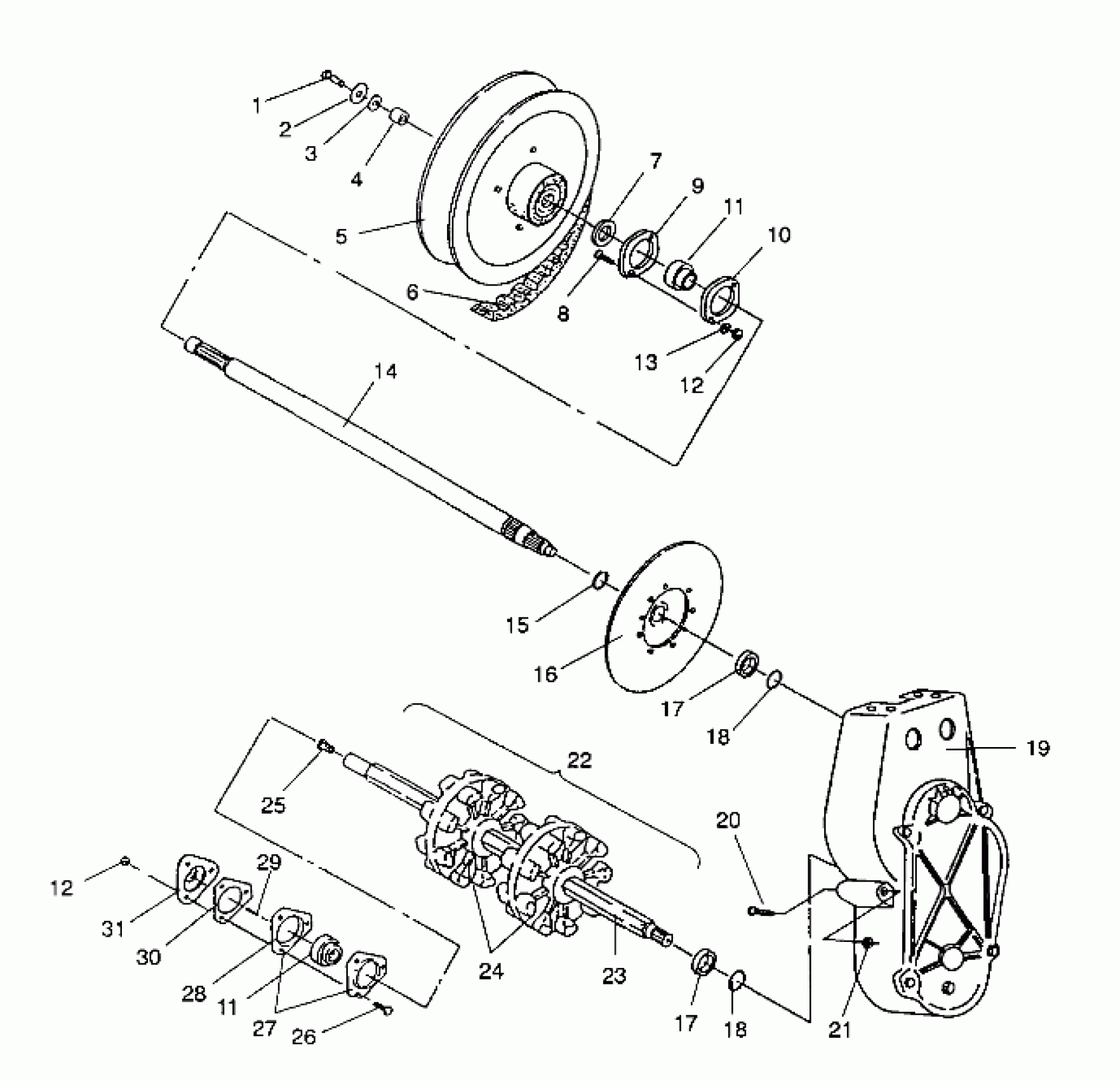

Polaris LITE GT - 0933133 DRIVE TRAIN ASSEMBLY LITE GT/0933133 and STARLITE GT/0933127 (4923232323015A) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
CLUTCH, DRIVEN,SPLINED (See pg. 19)
1322145
Unavailable
6
BELT, DRIVE(5) (Lite GT)
3211058
$79.99
6
BELT, DRIVE (StarLite GT)
3211060
Unavailable
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,(GREASABLE) (Greasable)
5222647
$24.27
10
FLANGETTE, (2-BOLT)
5222393
Unavailable
11
BEARING Substituted by 3514518
3514513
$64.99
11
BEARING Substituted by 3514518
3514513
$64.99
12
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
14
Asm., Jackshaft (See Page 13)
-------
Unavailable
15
RING, RETAINING(10)
7710422
$3.99
16
DISC ASM, BRAKE
1910086
Unavailable
17
SLEEVE, SEAL
5020588
$23.99
17
SLEEVE, SEAL
5020588
$23.99
18
O RING,(10)
5410613
$1.99
18
O RING,(10)
5410613
$1.99
19
Asm., Chaincase (See pg. 13)
-------
Unavailable
20
BOLT(10)
7515428
$4.79
21
NUT(10)
7542423
$3.99
22
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 23 - 25)
1590230
$285.70
23
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
24
SPROCKET, 9T
5430571
Unavailable
25
BUSHING METAL SPEEDO
3280019
$11.99
26
BOLT(10)
7512331
$3.99
27
FLANGETTE Substituted by 5222751 (Lite Gt)
5222591
Unavailable
28
FLANGETTE,W/GREASE GROOVE Substituted by 5240252 (StarLite GT)
5222581
Unavailable
29
KEY,SPEEDO,RH DRIVE (Lite GT)
3280117
Unavailable
30
GASKET,DRIVE ADAPTOR,(10) (Lite GT)
5830012
$2.41
31
ADAPTER,DRIVE,W/ZERK (Lite Gt)
3280116
$101.17
