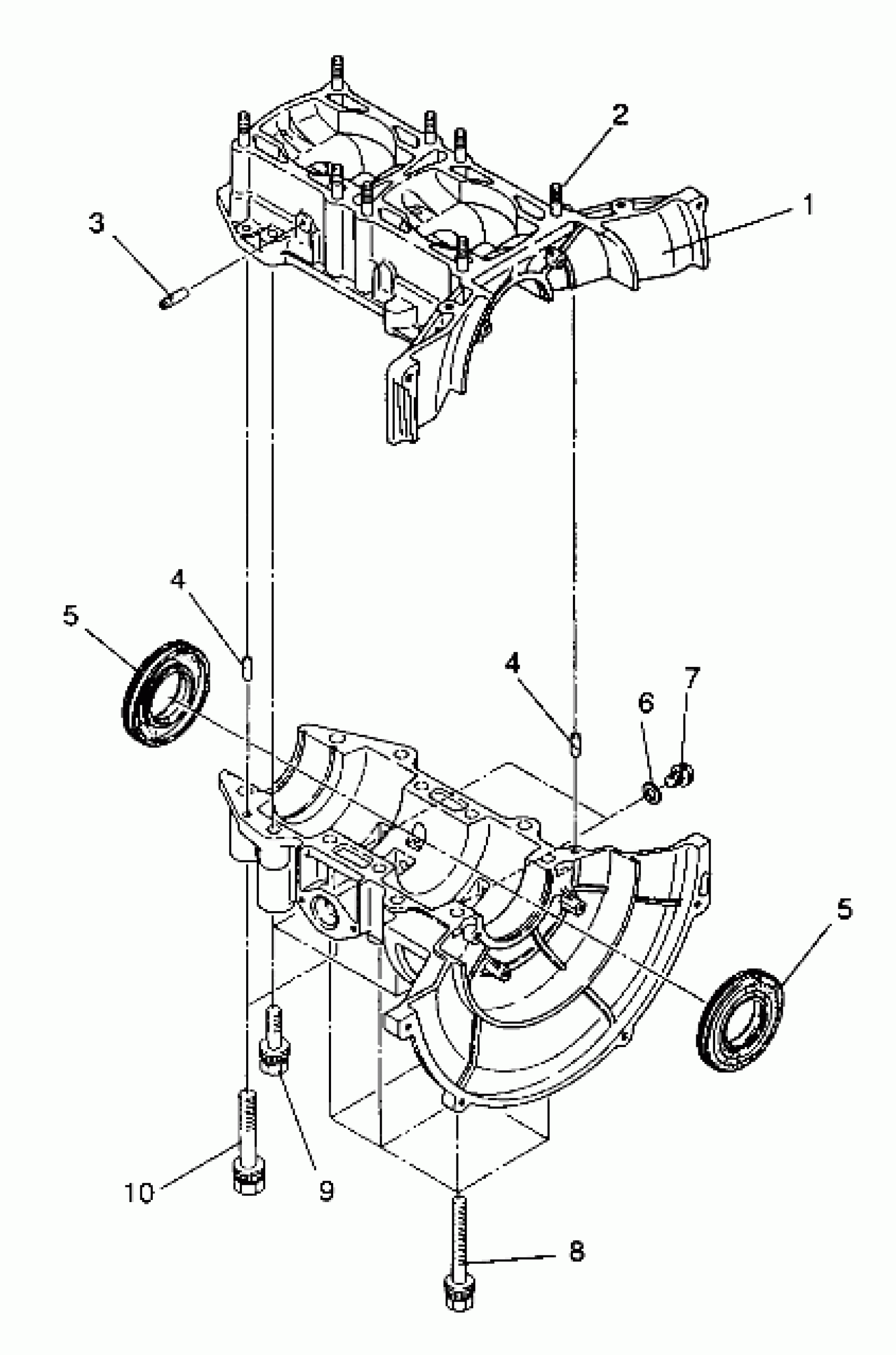

Polaris LITE GT - 0933133 CRANKCASE ASSEMBLY LITE GT/0933133 (4923232323027A) Diagram

#

Description

Price

1

CRANKCASE (Incl. 2-4 & 8-10)

3083980

Unavailable

2

Stud

3083564

$11.90

3

PIPE, PULSE

3083798

$9.52

4

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

4

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

5

SEAL, OIL(10)

3083045

$36.41

5

SEAL, OIL(10)

3083045

$36.41

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

BOLT W/WASHER

3080739

$6.39

9

BOLT&WASHER ASM.

3083566

$1.54

10

BOLT

3083565

$3.98
