CHAINCASE ASSEMBLY LITE GT/0933133 and STARLITE GT/0933127 (4923232323014A)

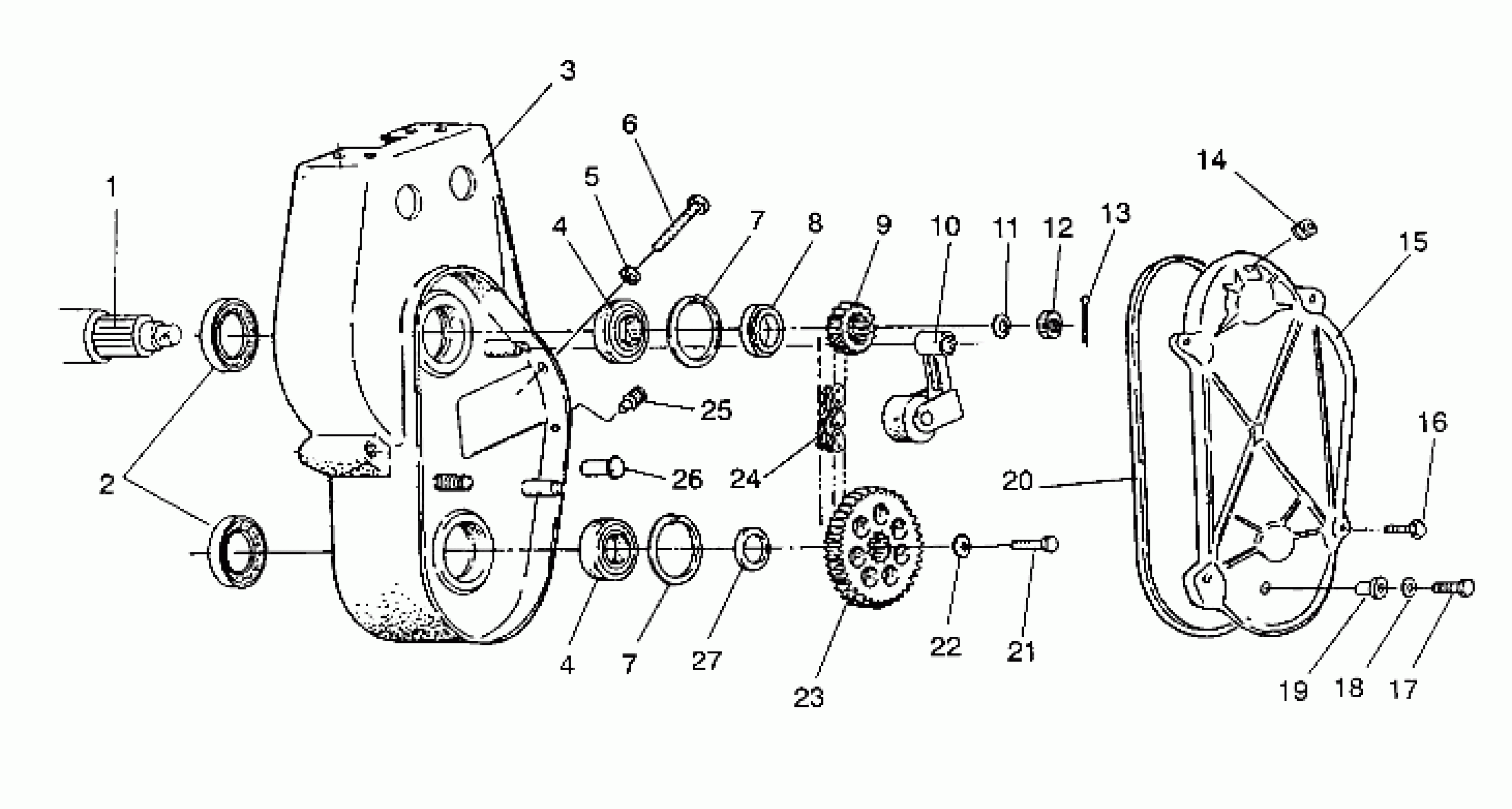

Polaris LITE GT - 0933133 CHAINCASE ASSEMBLY LITE GT/0933133 and STARLITE GT/0933127 (4923232323014A) Diagram
#
Description
Price
1
JACKSHAFT ASM.
1332146-067
Unavailable
2
SEAL-OIL
3610030
$20.22
3
CHAINCASE
5130795
Unavailable
4
BEARING,CHAINCASE
3514306
Unavailable
4
BEARING,CHAINCASE
3514306
Unavailable
5
NUT(10)
7542404
$1.59
6
SCREW(10)
7515511
$3.99
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
8
SPACER, SPROCKET
5010270
Unavailable
9
SPROCKET 16 T (Lite GT)
3221032
Unavailable
9
SPROCKET 15 T (StarLite GT)
3221031
Unavailable
10
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
PLUG(10)
7051520
$8.79
15
COVER
5130817
$33.33
16
SCREW(10)
7512242
$2.39
17
SCREW(10)
7511909
$3.99
18
WASHER, FLAT(10)
7558201
$5.79
19
NUT-WELL(10)
7541918
Unavailable
20
GASKET-CHAINCASE
5410277
$24.99
21
SCREW(10)
7515350
$3.97
22
WASHER(10)
7571618
$6.39
23
SPROCKET 39 T (Lite GT)
3222034
Unavailable
23
SPROCKET-41T (StarLite GT)
3222037
Unavailable
24
CHAIN 64 PITCH (Lite GT)
3224023
Unavailable
24
CHAIN 66 PITCH (StarLite GT)
3224024
Unavailable
25
PLUG, MAGNETIC
7051518
$12.35
26
CAP, STUD COVER
5020569
Unavailable
27
BUSHING(10)
7555864
$2.39
