CARBURETOR ASSEMBLY STARLITE GT / 0933127 (4923232323033A)

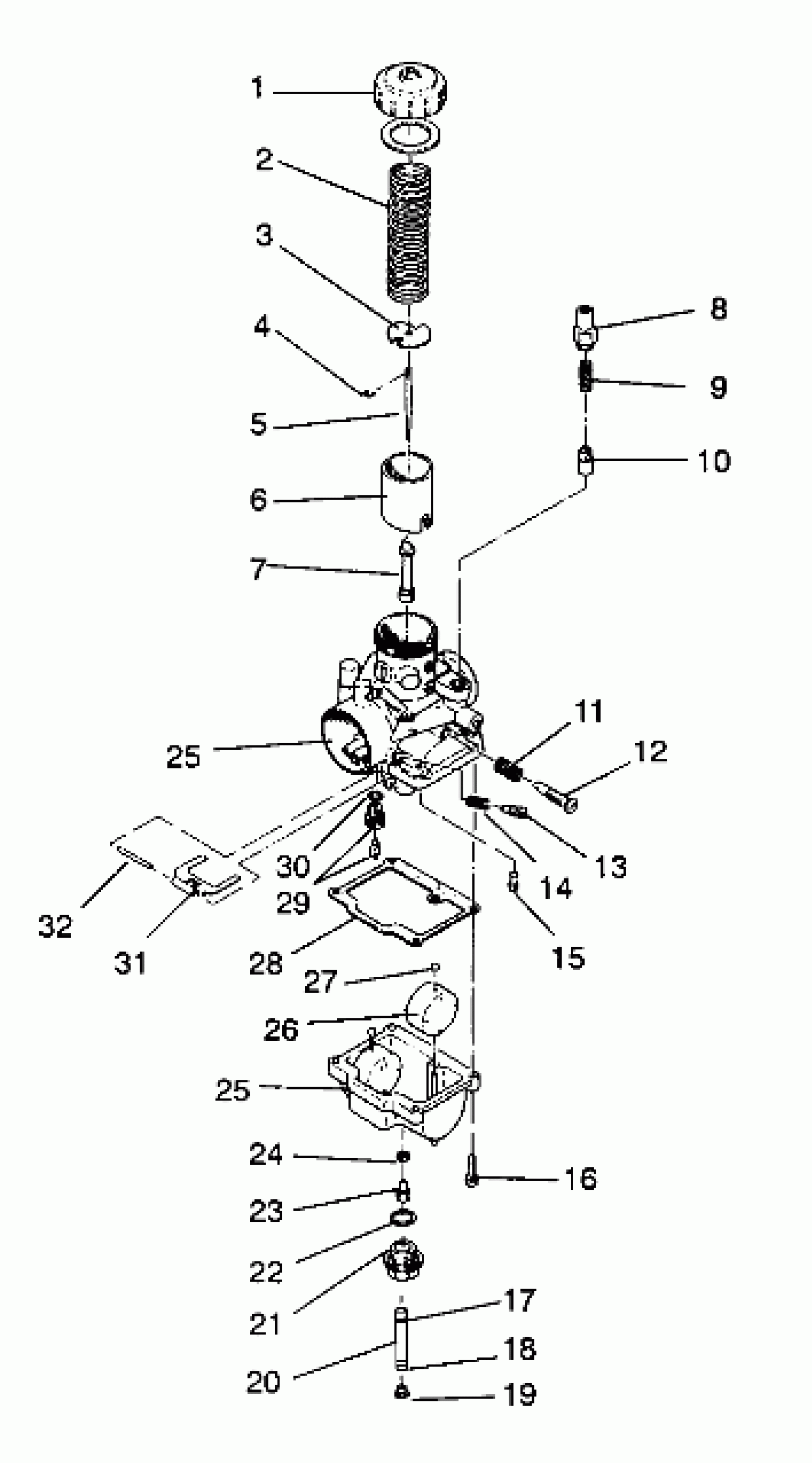

Polaris LITE GT - 0933133 CARBURETOR ASSEMBLY STARLITE GT / 0933127 (4923232323033A) Diagram
#
Description
Price
1
TOP,MIX CHAMBER (Incl. Gasket)
3130060
Unavailable
2
SPRING-THROTTLE Substituted by 3130344
3130281
Unavailable
3
PLATE,THROTTLE
3130002
$20.22
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE(5DT2-3) (5DT2-3)
3130473
Unavailable
6
VALVE, THROTTLE (3.0)
3130323
Unavailable
7
NEEDLE JET, O-8 (169)
3130453
$23.99
8
Cap, Plunger
3130359
$14.56
9
SPRING,PLUNGER
3130006
$8.89
10
PLUNGER ASM, STARTER
3130328
$32.37
11
SPRING,THROTTLE ADJ.
3130010
$8.89
12
Screw, Throttle Stop
3130324
$19.84
13
SCREW,AIR
3130011
$19.99
14
SPRING,AIR ADJUST
3130012
$8.89
15
JET,PILOT,#60(10) (#60)
3130071
Unavailable
16
SCREW & WASHER(10)
3130025
$3.19
17
CLAMP-HOSE,(10)
7080236
$1.59
18
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
19
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
20
FUEL LINE,3/8(GAUGE) Substituted by 8450003
8450041
Unavailable
21
FITTING,SEDIMENT,CARB. Substituted by 3130573
5020647
Unavailable
22
O RING
3130239
Unavailable
23
JET,MAIN,HX.HD#140 (#140)
3130111
Unavailable
24
WASHER (10)
3130014
$1.59
25
CARBURETOR,(STARLITE) (Incl. 1-16, 21-32)
3130472
Unavailable
25
CARBURETOR,(STARLITE) (Incl. 1-16, 21-32)
3130472
Unavailable
26
FLOAT ASM
3130021
$40.46
27
CAP,(10)
3130237
$4.03
28
PACKING,FLOAT CHAMBER
3130020
$16.17
29
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
30
PACKING(10)
3130017
$4.03
31
ARM,FLOAT
3130018
$24.27
32
PIN,FLOAT
3130043
Unavailable
