BLOWER HOUSING & RECOIL STARTER ASSEMBLY LITE GT/0933133 (4923232323039A)

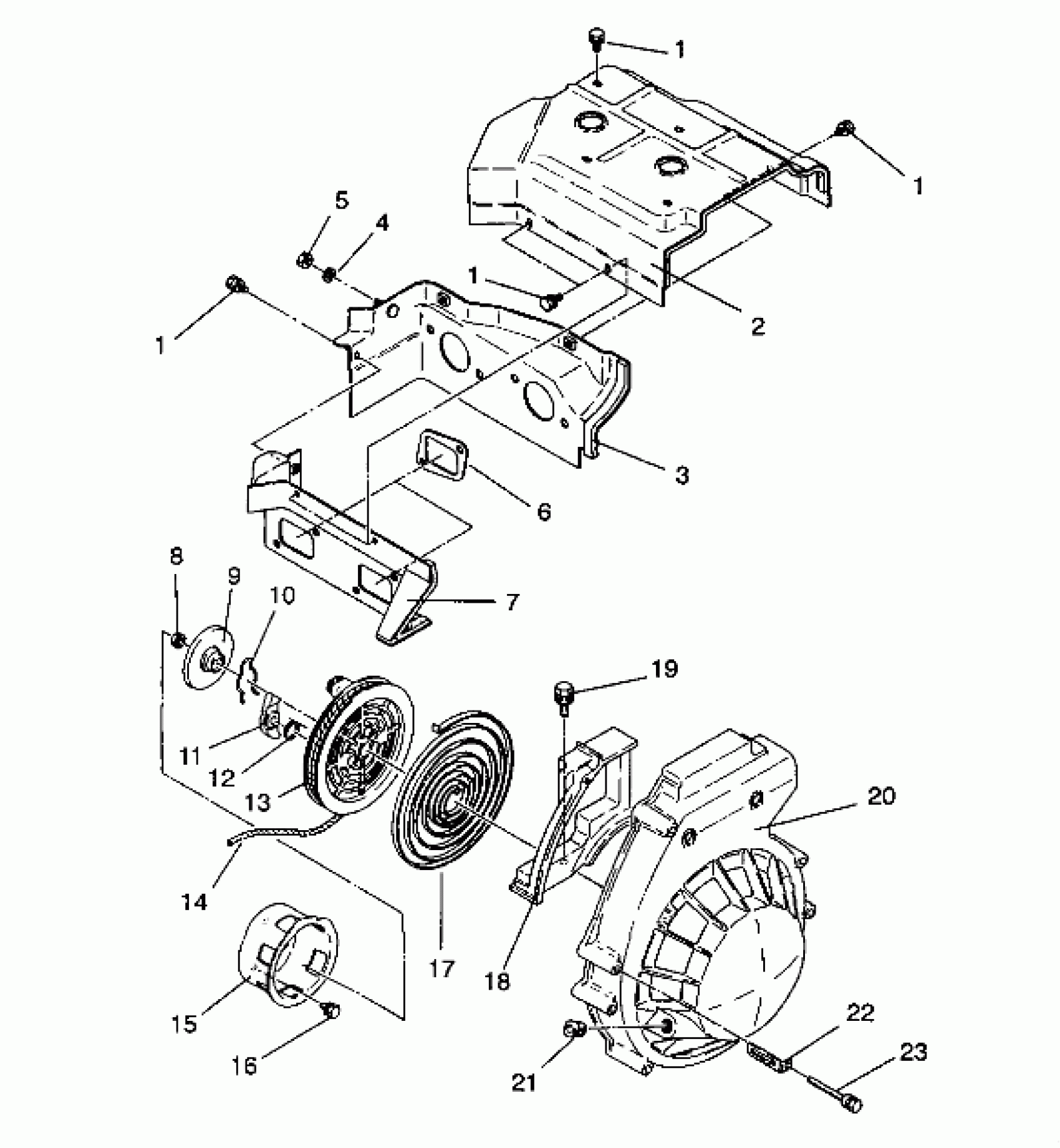

Polaris LITE GT - 0933133 BLOWER HOUSING & RECOIL STARTER ASSEMBLY LITE GT/0933133 (4923232323039A) Diagram
#
Description
Price
1
BOLT&WASHER ASM(10)
3083715
$0.63
1
BOLT&WASHER ASM(10)
3083715
$0.63
1
BOLT&WASHER ASM(10)
3083715
$0.63
1
BOLT&WASHER ASM(10)
3083715
$0.63
2
BAFFLE#1, CYL.
3084420
Unavailable
3
BAFFLE#2, CYL.
3084421
$79.03
4
WASHER SPRING(10)
3080077
$2.39
5
NUT(10)
3084375
$2.99
6
GASKET, INTAKE Substituted by 3085846
3083595
Unavailable
7
BAFFLE#3, CYL. Substituted by 3085847
3084422
$81.17
8
NUT, FLANGE ,(10)
3083381
$2.99
9
Plate, Friction
3083464
$28.32
10
Spring, Friction
3083379
$24.27
11
Ratchet
3083378
$20.22
12
Spring, Return
3083463
$4.03
13
REEL, REWIND
3083377
$56.65
14
ROPE,100 FT,NYL.STARTER (Bulk, Cut to Fit)
2870621
$34.99
15
PULLEY-STARTING
3083108
$29.52
16
BOLT,(10)
3081665
$3.19
17
Spring, Spiral
3083376
$179.11
18
HOUSING, BLOWER#2
3083591
$17.43
19
BOLT & WASHER
3081663
$1.49
20
CASE, STARTER
3083589
$148.79
20
RECOIL STARTER (Incl. 8-14, 17, 20 & 21)
3083588
Unavailable
21
GUIDE-ROPE
3083107
Unavailable
22
Clamp
3083590
$3.99
23
BOLT&WASHER
3083729
$3.49
