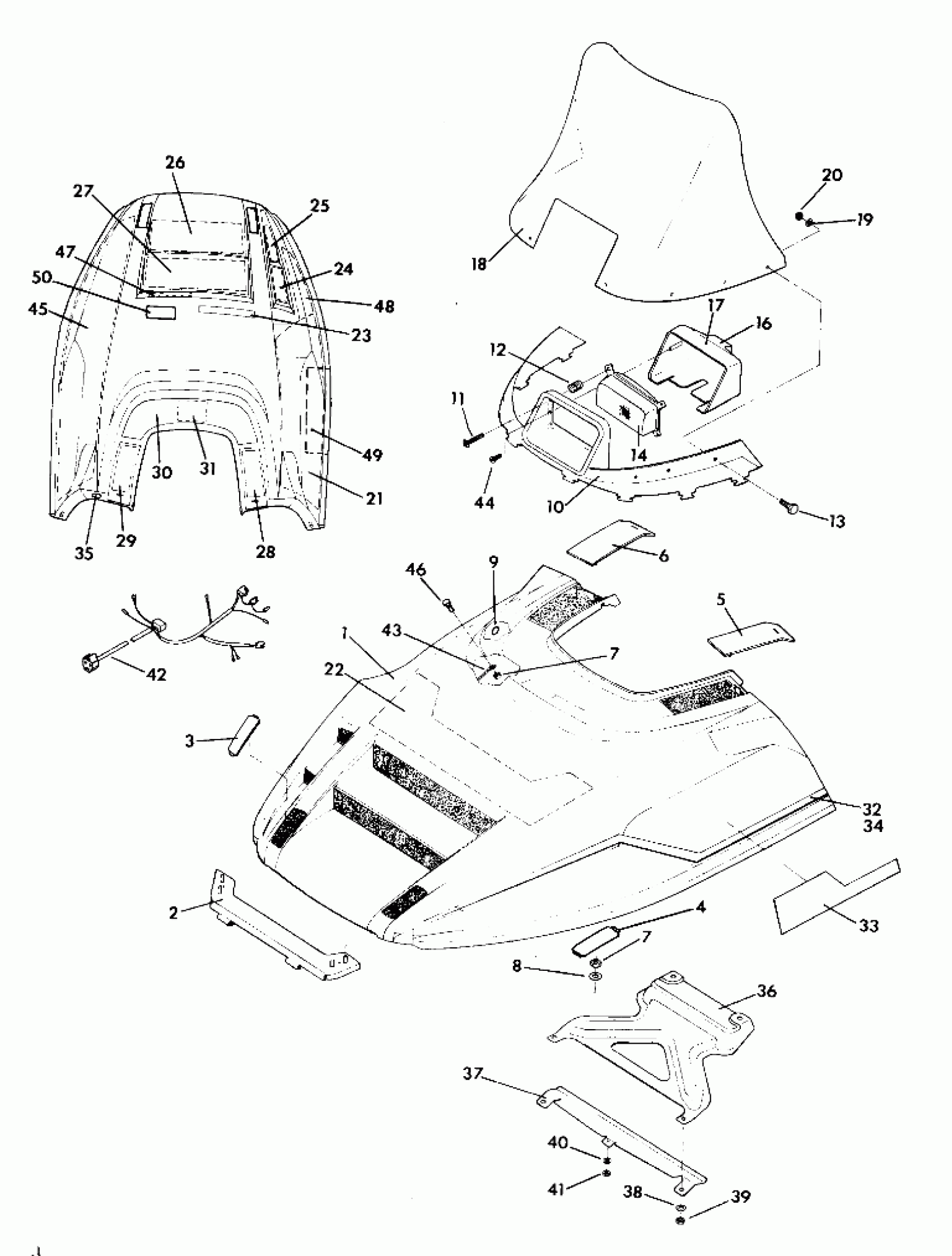

Polaris LITE GT - 0913133 HOOD INDY LITE GT (4920132013003A) Diagram
#
1
HOOD,(LITE/LITE GT) Substituted by 2631571-136
5431153-136
Unavailable
2
HINGE Substituted by 2635009-067
2635009
Unavailable
3
COVER,LH,HINGE,RED
5431217-136
Unavailable
4
COVER,RH,HINGE,RED
5431218-136
Unavailable
5
COVER,LH,TOOL,RED Substituted by 2652131-136
5431215-136
Unavailable
6
COVER,RH,TOOL,RED Substituted by 2652132-136
5431216-136
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
7
NUT-LOCK(10)
7542122
$1.49
8
WASHER,WROUGHT(10)
7558302
$1.59
9
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
10
MOUNT,W/S,BLK.
5431208-070
Unavailable
11
SCREW, ADJ.(10)
4032003
Unavailable
12
SPRING-ADJ
4032002
Unavailable
13
SCREW(10)
7512023
Unavailable
14
HEADLIGHT ASM.
4032038
Unavailable
16
COVER, HEADLAMP
5431209-070
Unavailable
17
DECAL,OPER.CAUTION [No Longer Available]
7072930
Unavailable
18
WINDSHIELD Substituted by 5431483
5431207
Unavailable
19
WASHER(10) Substituted by 7558201
7555799
Unavailable
20
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
21
FOAM,HOOD, RH
5810483
Unavailable
22
FOAM, CTR.HOOD
5810461
Unavailable
23
DECAL, 'POLARIS' [No Longer Available]
7072941
Unavailable
24
TAPE, FOIL
5810473
Unavailable
25
TAPE, FOIL
5810474
Unavailable
26
TAPE, FOIL
5810471
Unavailable
27
TAPE, FOIL
5810472
Unavailable
28
DECAL,COVER WARN.(FR.) [No Longer Available]
7072927
Unavailable
29
DECAL,COVER WARN.(ENG.) [No Longer Available]
7072925
Unavailable
30
DECAL,WARN.(ENG.) [No Longer Available]
7072924
Unavailable
31
DECAL,SPEC.(LITE GT) [No Longer Available]
7073127
Unavailable
32
DECAL,LH HOODSTRIPE [No Longer Available]
7072931
Unavailable
33
DECAL, HOOD SIDE [No Longer Available]
7072928
Unavailable
34
DECAL,RH HOODSTRIPE [No Longer Available]
7072932
Unavailable
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
REINFORCEMENT,HOOD [No Longer Available]
5431235
Unavailable
37
DEFLECTOR, HOOD
5222477
Unavailable
38
WASHER(10)
7555806
$1.49
39
PUSH-ON NUT(10)
7670017
$1.83
40
WASHER, FLAT(10)
7558201
$5.79
41
NUT, PUSH-ON(10)
7670068
$2.39
42
HARNESS,HEADLIGHT
2460302
Unavailable
43
CABLE,HOOD RETAINER
7080414
Unavailable
44
SCREW(10)
7512026
$1.49
45
FOAM, LH HOOD
5810459
Unavailable
46
BOLT(10)
7512261
$4.99
47
TAPE, FOIL, HOOD
5810489
Unavailable
48
TAPE, FOIL, HOOD
5810490
Unavailable
49
TAPE,FOIL,HOOD#14
5810501
Unavailable
50
DECAL,HOOD,(GT) [No Longer Available]
7073113
Unavailable
