ENGINE MOUNTING Indy Lite GT (4920132013015A)

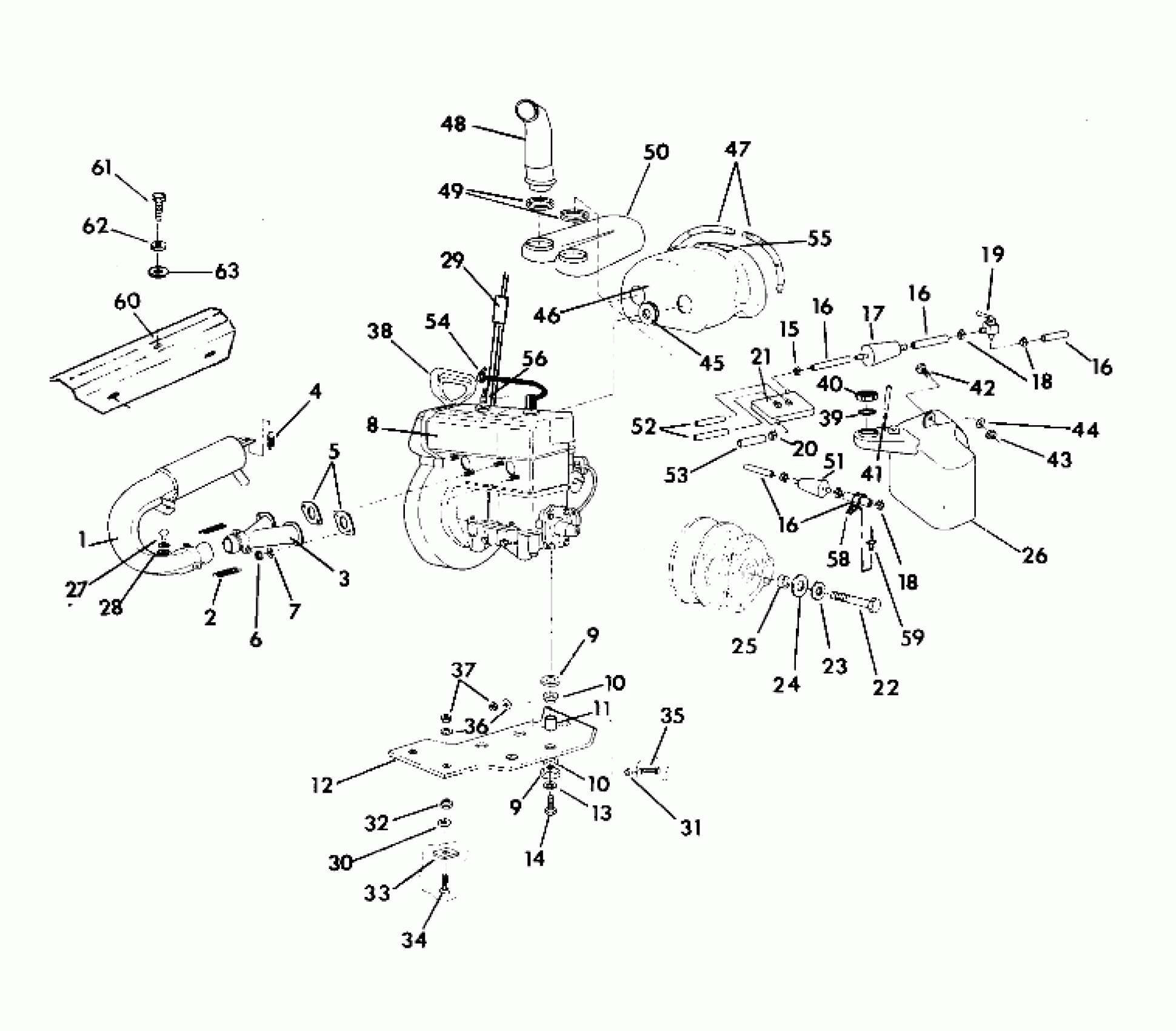

Polaris LITE GT - 0913133 ENGINE MOUNTING Indy Lite GT (4920132013015A) Diagram
#
1
MUFFLER, (GT) Substituted by 1260567-029
1260567
Unavailable
2
SPRING, EXHAUST(10)
7042031
$5.65
3
MANIFOLD Substituted by 1260570-029
1260570
Unavailable
4
SPRING-EXHAUST(10)
7042029
$4.84
5
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
6
NUT(10)
3080285
Unavailable
7
WASHER LOCK ,(10)
3080530
$3.19
8
ENG.EC34-2PM-04
1211494
Unavailable
9
CAP
5221901
Unavailable
9
CAP
5221901
Unavailable
10
DAMPNER-VIB.
5410320
Unavailable
10
DAMPNER-VIB.
5410320
Unavailable
11
BUSHING-MOTOR MT.
5010163
Unavailable
12
PLATE,MOTOR MOUNT Substituted by 5224836
5222292
Unavailable
13
WASHER LOCK(10)
7553101
$3.99
14
BOLT(10)
7512515
$3.19
15
CLAMP-HOSE(10)
7080134
Unavailable
16
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
16
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
16
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
16
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
17
FILTER FUEL,(10)
2530008
$4.84
18
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
18
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
19
VALVE,FUEL SHUT-OFF
7052039
Unavailable
20
HOSE CLAMP, RED
7080003
$1.49
21
PUMP, FUEL
3083596
Unavailable
22
BOLT(10)
7512566
$30.79
23
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
24
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
25
BUSHING-.437 X.770 X.50
5430261
$7.19
26
TANK, OIL
5431225
Unavailable
27
DAMPNER, VIB.
5410467
$8.79
28
WASHER, THRUST(10)
7555788
$4.99
29
CABLE, THROTTLE Substituted by 7080557
7080426
$154.99
30
WASHER(10)
7555823
$3.99
31
BUSHING
5020397
Unavailable
32
BUSHING,THREADED
5020562
$3.83
33
Plate, Spacer
5211201
$4.95
34
BOLT(10)
7515510
$3.59
35
BOLT(10)
7515503
$5.43
36
WASHER(10)
7555761
$2.39
37
NUT LOCK(10)
7542403
$3.99
38
HANDLE-RECOIL
5430520
Unavailable
39
GASKET-OIL CAP
5810141
$2.39
40
CAP,OIL TANK
5430779
$14.56
41
FITTING, OUTLET
7052042
$8.99
42
BOLT(10)
7512240
$3.99
43
NUT-LOCK(10)
7542122
$1.49
44
WASHER,WROUGHT(10)
7558302
$1.59
45
BOOT-SILENCER
5410311
Unavailable
46
BOX, SILENCER
5431212
Unavailable
47
SPRING,HOLDDOWN
7041244
$11.79
48
DUCT,INTAKE,UPPER
5431206
Unavailable
49
Seal
5810462
$4.95
50
SILENCER,INTAKE,LOWER
5431203
Unavailable
51
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
52
BULK-3/16IDX1FT.LINE Substituted by 8450037-600
8450037
Unavailable
53
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
54
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
55
DECAL,SILENCER [No Longer Available]
7072087
Unavailable
56
SPARKPLUG (10)
3070156
$3.99
58
CLIP, HALF(10)
7080393
$3.19
59
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
60
SHIELD, MUFFLER [No Longer Available]
5222597
Unavailable
61
BOLT(10)
7515354
$3.99
62
LOCK WASHER(10)
7552901
$1.49
63
WASHER(10)
7555734
$1.49
