BRAKE AND CHAINCASE Indy Lite GT (4920132013013A)

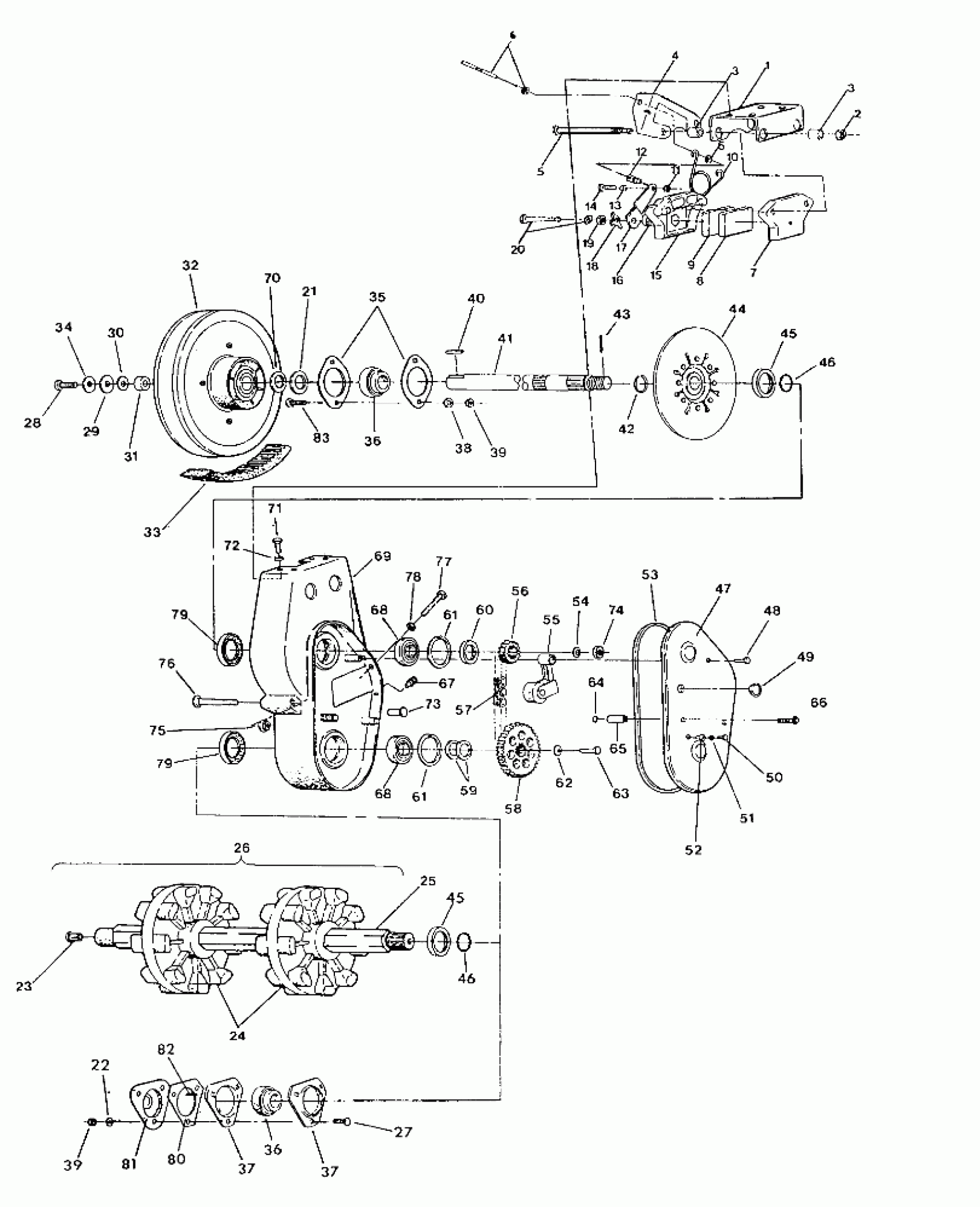

Polaris LITE GT - 0913133 BRAKE AND CHAINCASE Indy Lite GT (4920132013013A) Diagram
#
1
BRACKET Substituted by 5220514-067
5220514
Unavailable
2
NUT(10)
7542425
$1.75
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRKT,BRAKE,BLK. Substituted by 5220211-067
5220211
Unavailable
5
BOLT(10)
7515478
$11.43
6
CABLE, BRAKE
7080427
Unavailable
6
CABLE, BRAKE
7080427
Unavailable
7
CALIPER
5630305
$36.41
8
PUCK
1930592
Unavailable
9
PAD, BRAKE,(THICK)
1930588
Unavailable
10
SPRING, BRAKE RETURN
7041147
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
12
PIN, CLEVIS
7080316
Unavailable
13
BUSHING
5332795
$5.56
14
BOLT(10)
7512240
$3.99
15
CALIPER (Incl. 16-20)
1930593
Unavailable
16
Shaft
-------
Unavailable
17
Lever
-------
Unavailable
18
Locking Tab
-------
Unavailable
19
Jam Nut
-------
Unavailable
20
Bolt and Stop
-------
Unavailable
21
BUSHING,MACHINERY(10)
7555790
$1.59
22
WASHER(10)
7555725
Unavailable
23
BUSHING METAL SPEEDO
3280019
$11.99
24
SPROCKET, 9T
5430571
Unavailable
25
SHAFT, DRIVE Substituted by 6230067
5130799
Unavailable
26
DRIVESHAFT ASM. Substituted by 1590249
1590224
Unavailable
27
BOLT(10)
7512331
$3.99
28
BOLT(10)
7515347
Unavailable
29
WASHER FLAT(10)
7555701
$3.99
30
WASHER(10)
7555734
Unavailable
31
SPACER
5020566
$9.83
32
CLUTCH, DRIVEN
1322141
Unavailable
33
BELT, DRIVE
3211053
$79.99
34
WASHER,SHAKEPROOF,5/16(10)
7577901
Unavailable
35
FLANGETTE, (2-BOLT)
5222393
Unavailable
36
BEARING
3514501
Unavailable
36
BEARING
3514501
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
38
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
KEY-SQUARE(10)
7721204
$3.19
41
SHAFT, INPUT Substituted by 1332134-067
5130786
Unavailable
42
RING, RETAINING(10)
7710422
$3.99
43
COTTER PIN(10)
7661401
$1.49
44
DISC, BRAKE Substituted by 1910064
5210744
Unavailable
45
SLEEVE, SEAL
5020588
$23.99
45
SLEEVE, SEAL
5020588
$23.99
46
O RING,(10)
5410613
$1.99
46
O RING,(10)
5410613
$1.99
47
COVER,CHAINCASE
5222579
Unavailable
48
BOLT(10)
7512246
Unavailable
49
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
50
SCREW(10)
7511909
$3.99
51
WASHER, FLAT(10)
7558201
$5.79
52
NUT-WELL(10)
7541918
Unavailable
53
GASKET-CHAINCASE
5410277
$24.99
54
WASHER, SLOTTED(10)
7571620
$7.19
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 39 T
3222034
Unavailable
56
DESC NOT_AVAILABLE
1322032
Unavailable
57
CHAIN 64 PITCH
3224023
Unavailable
59
WASHER SPECIAL(10)
7556509
$1.59
60
SPACER, SPROCKET
5010270
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
WASHER(10)
7571618
$6.39
63
SCREW(10)
7515350
$3.97
64
O RING
5410565
Unavailable
65
STAND-OFF,C/C COVER
5333033
Unavailable
66
BOLT, S.S.(10)
7512293
Unavailable
67
PLUG, MAGNETIC
7051518
$12.35
68
BEARING,CHAINCASE
3514306
Unavailable
68
BEARING,CHAINCASE
3514306
Unavailable
69
CHAINCASE
5130795
Unavailable
70
BUSHING(10)
7555819
Unavailable
72
LOCK WASHER(10)
7552801
$1.59
73
CAP, STUD COVER
5020569
Unavailable
74
NUT, SLOTTED(10)
7542810
$3.19
75
NUT(10)
7542423
$3.99
76
BOLT(10)
7515428
$4.79
77
SCREW(10)
7515511
$3.99
78
BOLT(10)
7512404
$3.99
79
SEAL-OIL
3610030
$20.22
79
SEAL-OIL
3610030
$20.22
80
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
81
DRIVE, ANGLE Substituted by 3280116
3280016
Unavailable
82
KEY,SPEEDO,RH DRIVE
3280117
Unavailable
83
BOLT(10) Substituted by 7512377
7512394
Unavailable
