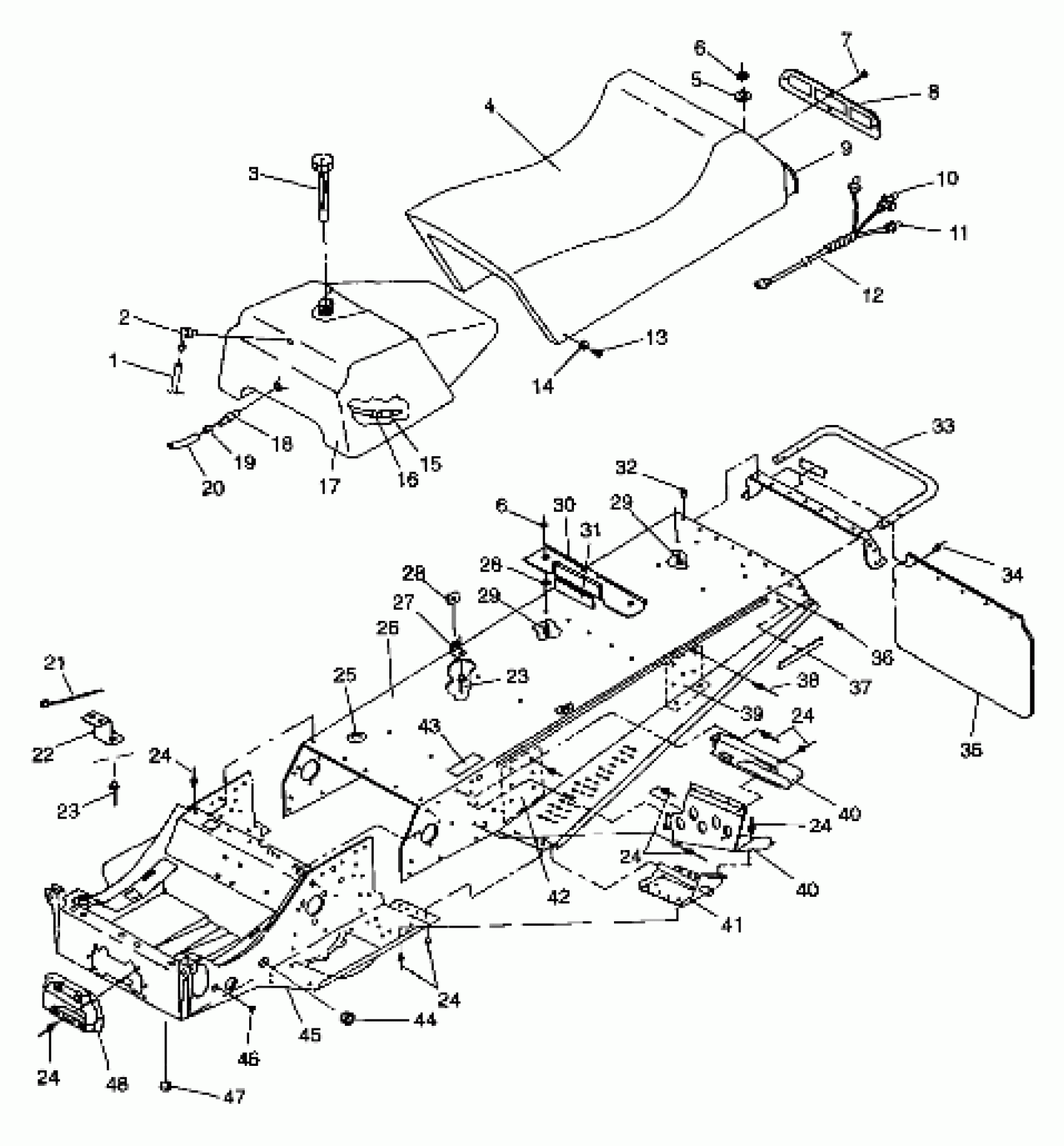

Polaris LITE - 0983433 TUNNEL and SEAT - 0983431 (4941864186a005) Diagram
#
1
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
1
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
2
FITTING,90 DEG,1/8,(10)
7052095
$4.79
3
CAP,GAS,W/GAUGE
2511245
Unavailable
4
SEAT ASM,LITE DLX (Incl. 7-12)
2682146
$429.99
4
COVER,SEAT,LITE DLX (Deluxe)
2682149
Unavailable
4
COVER ASM,SEAT (Lite)
2682256
Unavailable
4
SEAT ASM. (Incl. 7-12)
2682257
$444.99
5
WASHER,WROUGHT(10)
7558302
$1.59
6
NUT-LOCK(10)
7542122
$1.49
6
NUT-LOCK(10)
7542122
$1.49
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
BULB,TAILLIGHT(10)
4030024
$4.84
12
Harness, Taillight
2460399
Unavailable
13
SCREW(10)
7515111
$7.19
14
WASHER(10)
7555798
$1.49
15
FUELPICKUP,W/STRAINER
7052037
$12.94
16
RING, COMPRESSION(10)
7080402
$1.60
17
TANK,FUEL,(LITE GT) Substituted by 2520179 (Incl. 1,2,15-18)
2511214
Unavailable
18
FITTING - OUTLET(10)
7052023
$24.99
19
HOSE CLAMP, RED
7080003
$1.49
20
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
21
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
22
BRKT,STAND,BLK.
5220520-067
$4.13
23
RIVET(50)
7621453
$3.19
23
RIVET(50)
7621453
$3.19
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
25
GROMMET RUBBER
5410021
Unavailable
26
TUNNEL,LITE (Incl. 39,42)
1012504
$405.94
27
BRKT,CONSOLE/SEAT MT.
5222452-067
$25.59
28
SPEED NUT(10)
7670021
$6.99
28
SPEED NUT(10)
7670021
$6.99
29
BOLT(10)
7512193
$2.39
29
BOLT(10)
7512193
$2.39
30
STRAP,GASTANK,BLK.
5222330-067
Unavailable
31
CUSHION,TANK H.D.
5420126
Unavailable
32
RIVET ,(50)
7661836
$0.63
33
BUMPER,REAR,XL,BLK
5224766-067
Unavailable
34
POP RIVET(50)
7621418
$1.49
35
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
36
SCREW(10)
7512252
Unavailable
37
REFLECTOR RED
2670070
$9.91
38
RIVET ,(50)
7661837
$1.49
39
PAD,LH,R.SUSP MT,XL
5241670-067
$5.56
39
PAD,RH,R.SUSP.MT,XL
5241671-067
$8.73
40
FOOTREST ASM,LH
1011830
$140.79
40
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
40
FOOTREST ASM,LH
1011830
$140.79
40
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
41
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
41
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
42
PAD,FR.SUSP.MT,(XL)
5211705-067
$6.63
43
Pad, Air Box
5810502
Unavailable
44
BUSHING,SNAP(10)
7080404
Unavailable
45
BULKHEAD,BLK
1012587-067
$649.99
46
PLUG, HOLE(10)
7080416
$5.65
47
PLUG-HOLE
7080398
$4.84
48
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
