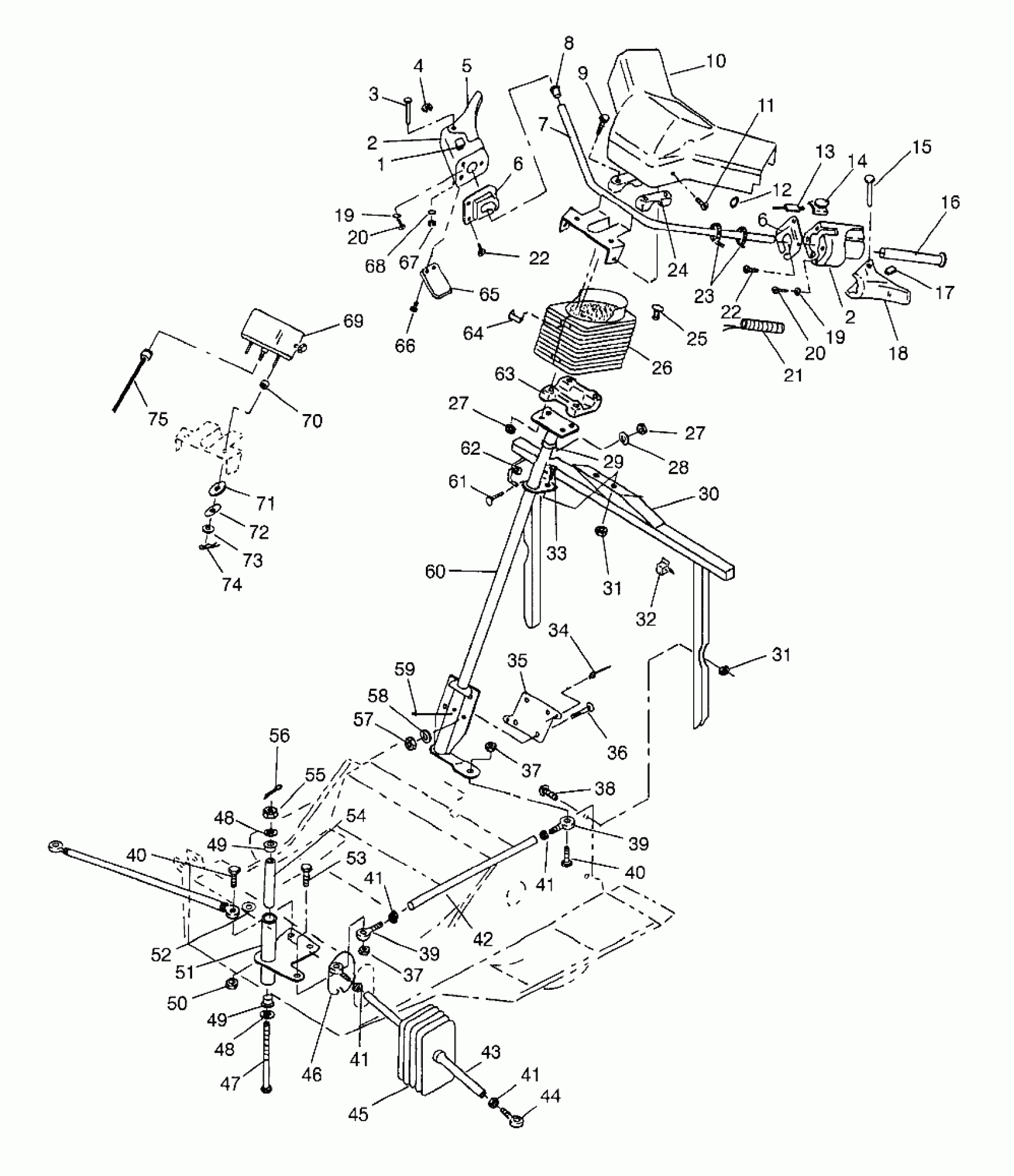

Polaris LITE - 0983433 STEERING - 0983433 (4941864186B003) Diagram
#
1
SWITCH,AUX.SHUT-OFF
4110106
$94.99
2
BLOCK,THROTTLE/BRAKE
5431592
$49.99
2
BLOCK,THROTTLE/BRAKE
5431592
$49.99
3
PIN-RETAINING .186X1.780-AL
7661624
$12.79
4
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
5
LEVER-THROTTLE (Lite)
5430601
Unavailable
5
LEVER,30 MM,W/HTR. (Deluxe)
2010147
Unavailable
6
BLOCK-ADAPTER
5430604
$13.75
6
BLOCK-ADAPTER
5430604
$13.75
7
HANDLEBAR,ADJ,BLK.
1843036-067
$43.75
8
CAPLUG(10) (Deluxe)
7080467
Unavailable
9
SCREW,(10)
7517238
$4.79
10
COVER,H'BAR W/SPEEDO
5431232-070
Unavailable
11
SCREW,(10)
7512024
$4.79
12
O RING
5410591
Unavailable
13
Switch, Brake Light
4110105
Unavailable
14
Switch, Dimmer
4110104
Unavailable
15
RIVET,(50)
7661617
$4.03
16
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
17
CLIP-SPEED.(10)
7670044
$4.79
18
LEVER-BRAKE
5430602
$36.41
19
RIVET BURR(50)
7555727
$1.49
19
RIVET BURR(50)
7555727
$1.49
20
SCREW-SEMS(10) (Deluxe)
7511848
$3.99
20
SCREW-SEMS(10) (Lite)
7511848
$3.99
20
SCREW-SEMS(10) (Deluxe)
7511848
$3.99
20
SCREW-SEMS(10) (Lite)
7511848
$3.99
21
HEATER GRIP ASM. (Deluxe)
2460313
Unavailable
22
SCREW(10)
7512465
$3.99
22
SCREW(10)
7512465
$3.99
23
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
24
BLOCK,H'BAR,UPPER,BLK.
5630382-067
Unavailable
25
FASTENER, DART(10)
7080431
Unavailable
26
BOOT,STRG.POST
5431234-070
Unavailable
27
NUT-LOCK(10)
7542122
$1.49
27
NUT-LOCK(10)
7542122
$1.49
28
WASHER,WROUGHT(10)
7558302
$1.59
29
CLIP(10)
7080278
$2.63
30
HOOP,STRG,BLK.
1011863-067
$38.71
31
NUT, LOCK(10)
7542103
$5.59
31
NUT, LOCK(10)
7542103
$5.59
32
CLIP ,(10)
5222672
Unavailable
33
BOLT(10) Substituted by 7512269
7515101
Unavailable
34
RIVET-3/16-.090-.290
7661637
$1.49
35
BRKT, BOLT RETAINER
5222421
$5.52
36
BOLT(10) Substituted by 7512377
7512394
Unavailable
37
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
37
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
38
BOLT(10)
7512298
$3.99
39
ROD END,LH
7060166
$48.56
39
ROD END,RH
7060167
$48.56
39
ROD END,LH
7060166
$48.56
39
ROD END,RH
7060167
$48.56
40
BOLT(10)
7512404
$3.99
40
BOLT(10)
7512404
$3.99
41
NUT HEX(10)
7542401
$2.39
41
NUT
7542424
$1.49
41
NUT HEX(10)
7542401
$2.39
41
NUT
7542424
$1.49
41
NUT HEX(10)
7542401
$2.39
41
NUT
7542424
$1.49
41
NUT HEX(10)
7542401
$2.39
41
NUT
7542424
$1.49
42
ROD, DRAG LINK
5333005
Unavailable
43
ROD,TIE,BLK
5020910-067
Unavailable
44
ROD END, RH.
7060165
$48.56
44
ROD END, LH.
7060164
$48.56
45
BOOT, TIE ROD Substituted by 5411652
5410639
$19.84
46
RETAINER, BOOT
5222283
Unavailable
47
BOLT(10)
7512572
$13.19
48
WASHER(10)
7555817
Unavailable
48
WASHER(10)
7555817
Unavailable
49
BUSHING
5630371
$5.03
49
BUSHING
5630371
$5.03
50
NUT LOCK(10)
7542403
$3.99
51
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067
1823141-067
$49.21
52
BUSHING,OPEN/CLOSE(10) (Deluxe)
7080399
$2.39
53
SCREW(10)
7515434
Unavailable
54
BUSHING, SPACER
5333009
$11.99
55
NUT, CASTLE(10)
7542523
Unavailable
56
PIN COTTER(10)
7661203
$1.49
57
NUT FLEX-LOC(10)
7542303
$6.39
58
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
59
FITTING,LUB/VEN(10)
7080561
$4.79
60
POST, STRG.,BLK.
1823155-067
Unavailable
61
BOLT(10)
7512193
$2.39
62
RINGMOUNT,RECOIL,BLK.
5224442-067
$21.43
63
BLOCK,HANDLEBAR
5630187-067
$44.99
64
CLIP, STRG.BOOT(10)
7670073
Unavailable
65
HOLDER-WIRE (Deluxe)
5432261
$24.27
66
SCREW(10) (Deluxe)
7511858
$3.99
67
RING-RETAINING EXTERNAL
7710401
$3.99
68
WASHER(10)
7555730
$3.99
69
SPEEDOMETER
3280112
Unavailable
70
SPACER
5410592
Unavailable
71
SPACER,SPEEDO.MTG.
5810442
$10.99
72
PLATE,MTG,(SPEEDO)
5211189
$12.99
73
WASHER, FLAT(10)
7558201
$5.79
74
HAIRPIN, COTTER(10)
7660701
$1.99
75
CABLE,SPEEDOMETER
3280113
Unavailable
