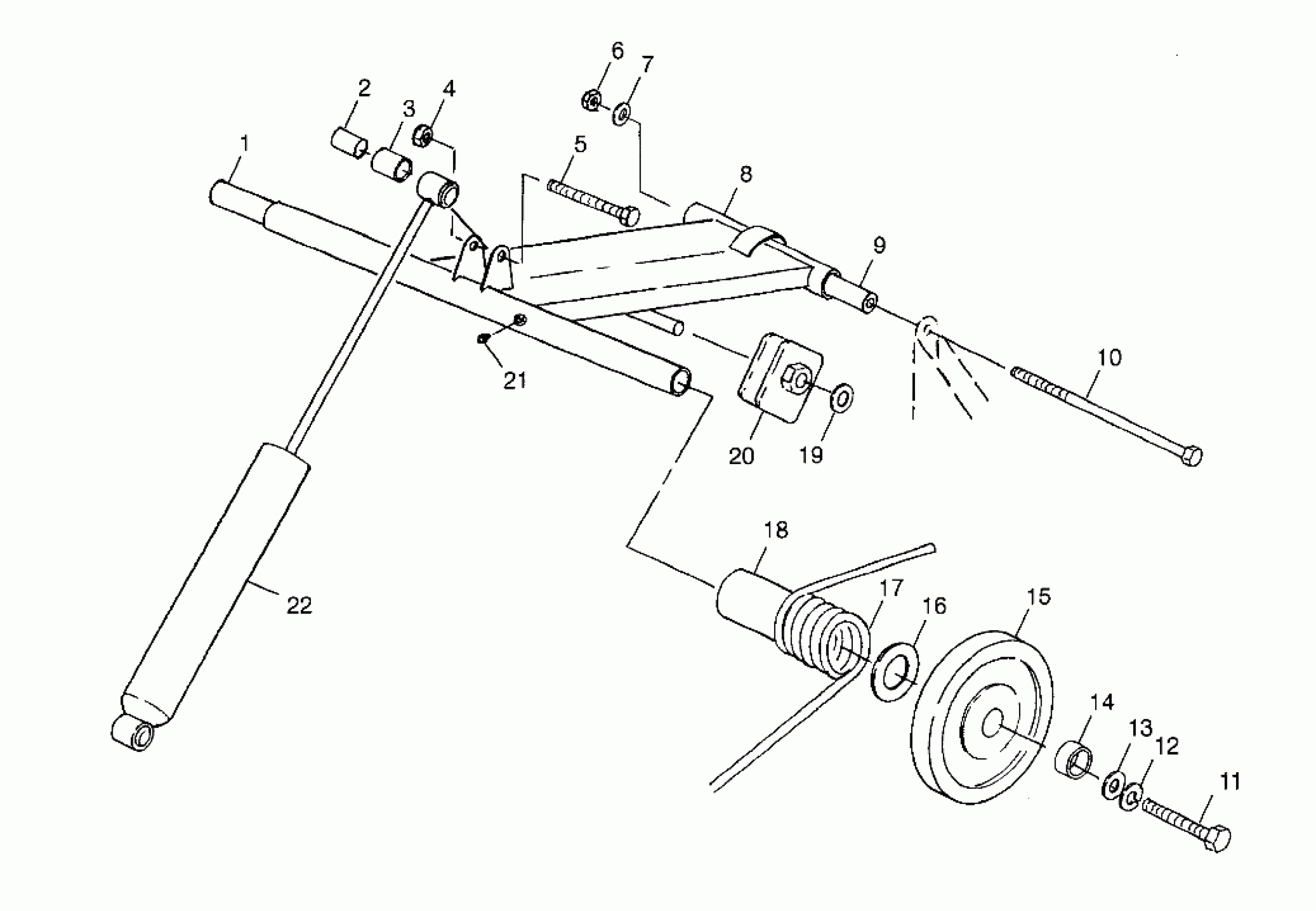

Polaris LITE - 0983433 REAR TORQUE ARM - 0983433 (4941864186B010) Diagram
#
Description
Price
1
SHAFT,R.MTG. Substituted by 5131996
5020907
$56.65
2
BUSHING
5430537
$3.99
3
BUSHING,R.SHOCK
5333030
Unavailable
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
BOLT(10)
7512329
$3.99
6
NUT FLEX LOC,(10)
7542319
$4.39
7
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
8
ARM,RR TORQ ARM,XL,BLK
1541105-067
$186.65
9
Tube
5333483
$11.59
10
SCREW Substituted by 7517757
7517206
$3.97
11
SCREW,(10)
7517247
$3.19
12
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
13
WASHER(10)
7555893
$1.49
14
SPACER-CARR.WHEEL
5332730
$14.99
15
WHEEL,CARRIER,ASM
1543022
$69.99
15
BEARING-5/8I.D. (1 Per Wheel)
3513504
$9.59
15
RETAINER(10) (1 Per Wheel)
7710403
$2.63
16
WASHER,THRUST(10)
7555877
$3.99
17
SPRING,LH,TORS. (.406 Dia.), Optional
7041521-067
Unavailable
17
SPRING,RH,TORS. (.406 Dia.), Optional
7041522-067
Unavailable
17
SPRING,LH,TORS,.393/77DEG. (.393 Dia.), Optional
7041555-067
$70.39
17
SPRING,RH,TORS,.393/77DEG. (.393 Dia.), Optional
7041556-067
Unavailable
17
SPRING,LH,TORS,.393/80DEG. (.393 Dia.)
7041557-067
Unavailable
17
SPRING,RH,TORS,.393/80DEG. (.393 Dia.)
7041558-067
Unavailable
18
Tube, Spring
5521234
Unavailable
19
CLIP-PUSH ON
7080394
$2.39
20
ROLLER, SPRING ADJ.
5431168
Unavailable
21
ZERK,FITTING,THREADED(10)
7080433
$1.49
22
SHOCK,R.TRACK Substituted by 7041739
7041665
Unavailable
