NOSEPAN and CONSOLE - 0983431 (4941864186a007)

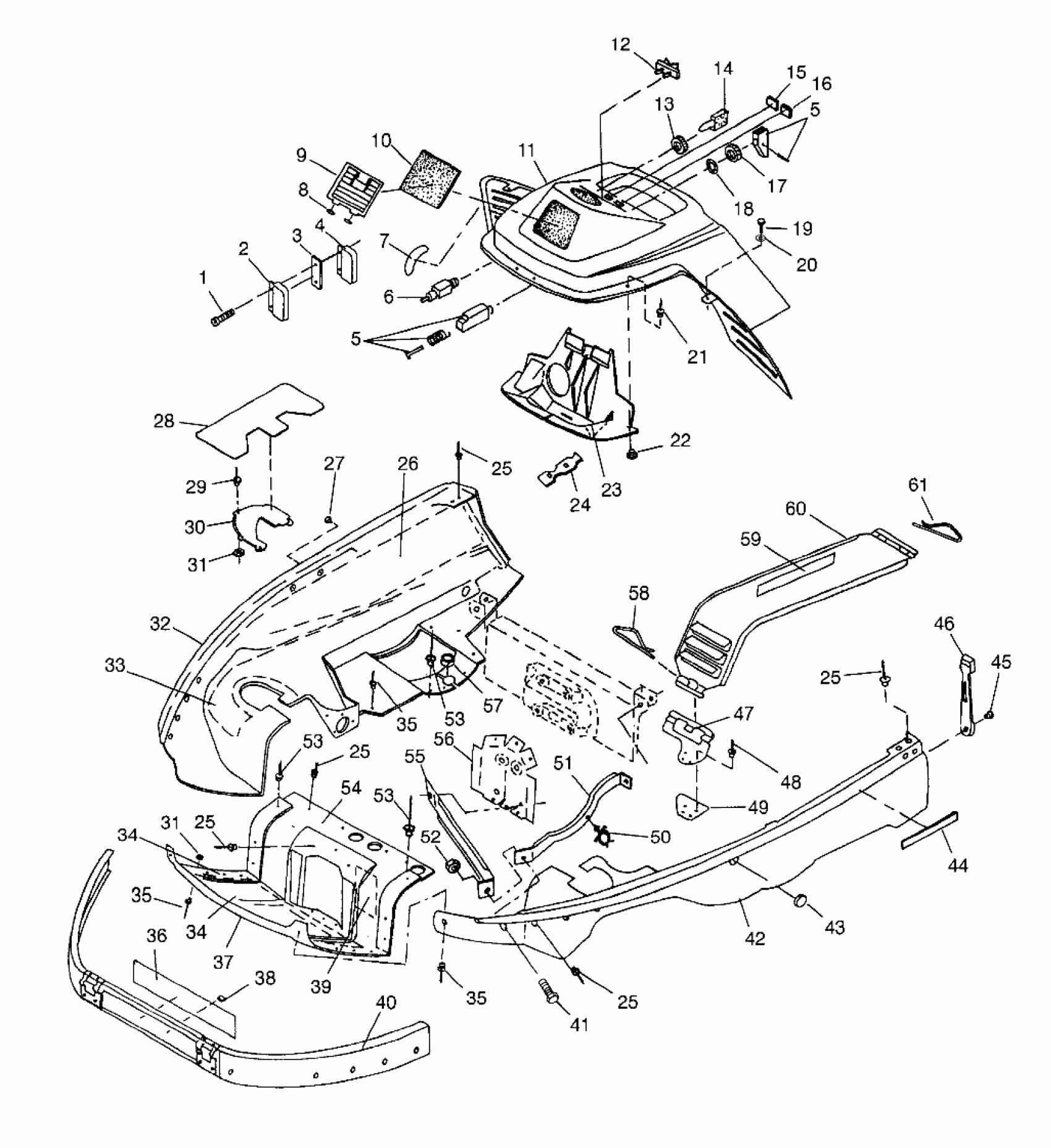

Polaris LITE - 0983433 NOSEPAN and CONSOLE - 0983431 (4941864186a007) Diagram
#
1
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
2
REGULATOR,14 VAC.LR-9
4060122
Unavailable
3
HEAT SINK
5210650
Unavailable
4
RECTIFIER, LR-4 (Deluxe)
4060104
Unavailable
5
KIT-CHOKE CONTROL
2200188
$24.27
5
CABLE,CHOKE
7080661
Unavailable
5
KIT-CHOKE CONTROL
2200188
$24.27
5
CABLE,CHOKE
7080661
Unavailable
6
SWITCH IGNITION (Lite)
4110038
$44.51
6
SWITCH-E/S (Deluxe)
4110061
Unavailable
7
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
8
SEAL, O RING,(10)
5410374
$1.83
9
LOUVER, INTAKE
5431211-070
Unavailable
10
Foam, Intake
5810458
Unavailable
11
CONSOLE (Lite)
5431157-070
Unavailable
11
CONSOLE,BLK,(94DLX.) Substituted by 5431636-070 (Deluxe)
5431636
Unavailable
12
SWITCH,ROCKER,W/INDIC. (Deluxe)
4110195
Unavailable
13
NUT,IGNITION
7547034
Unavailable
14
KEY, IGNITION
5410378
$13.75
15
INDICATOR'LOW-OIL'WARN. (Deluxe)
4040012
Unavailable
16
INDICATOR,'ACC'WARN. (Deluxe)
4040014
Unavailable
17
Nut
7080229
$19.99
18
WASHER-LOCK(10)
7571610
$3.99
19
BOLT(10)
7517468
Unavailable
20
WASHER(10) Substituted by 7558301
7555776
Unavailable
21
RIVET,(50)
7621336
$1.59
22
RIVET BURR(50)
7555727
$1.49
23
CONSOLE, INNER
5431214-070
$66.39
24
STRAP,TOOL COMPARTMENT
5410425
Unavailable
25
RIVET(50)
7621472
$1.49
25
RIVET(50)
7621472
$1.49
25
RIVET(50)
7621472
$1.49
25
RIVET(50)
7621472
$1.49
25
RIVET(50)
7621472
$1.49
26
TAPE, FOIL
5810478
Unavailable
27
Clip, Dart
7670067
$3.99
28
TAPE, FOIL,(PAN)
5810482
Unavailable
29
RIVET(50)
7621457
$1.49
30
COVER, RH SHOCK
5431253
Unavailable
30
COVER, LH SHOCK
5431252
Unavailable
31
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
31
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
32
NOSEPAN,RH,BLK.
5431156-070
Unavailable
33
TAPE, FOIL
5810477
Unavailable
34
Tape, Foil
5810475
Unavailable
34
Tape, Foil
5810475
Unavailable
35
RIVET, BLIND(50)
7621467
$1.49
35
RIVET, BLIND(50)
7621467
$1.49
35
RIVET, BLIND(50)
7621467
$1.49
36
SCREEN
5211267-067
Unavailable
37
NOSEPAN, CTR.
5431154-070
Unavailable
38
FASTENER-U TYPE CLIP
7670040
$3.99
39
TAPE, FOIL
5810509
Unavailable
40
HINGE,LOWER,BLK.
2635010-067
Unavailable
41
BOLT(10)
7512297
$5.59
42
NOSEPAN,LH,BLK.
5431155-070
Unavailable
43
PLUG,CATCH HOLE
5410582
$7.27
44
REFLECTOR AMBER
2670071
Unavailable
45
RIVET,(50)
7621601
Unavailable
46
STRAP, HOOD
5410573
Unavailable
47
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
48
RIVET(50)
7621449
$3.19
49
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
50
CLIP, PLASTIC(10)
4020139
$4.79
51
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
51
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
52
NUT-LOCK(10)
7542122
$1.49
53
RIVET(50)
7621479
$1.99
53
RIVET(50)
7621479
$1.99
53
RIVET(50)
7621479
$1.99
54
TAPE, FOIL
5810476
Unavailable
55
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
55
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
56
BRKT,SUPPORT,BLK.
5222356-067
$38.19
57
SHIELD,NOSEPAN DRAIN HOLE
5811078
Unavailable
58
PIN
5224440
Unavailable
59
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
60
GUARD, CLUTCH Substituted by 5243761
5230124
Unavailable
61
PIN, FRONT
7080311
Unavailable
