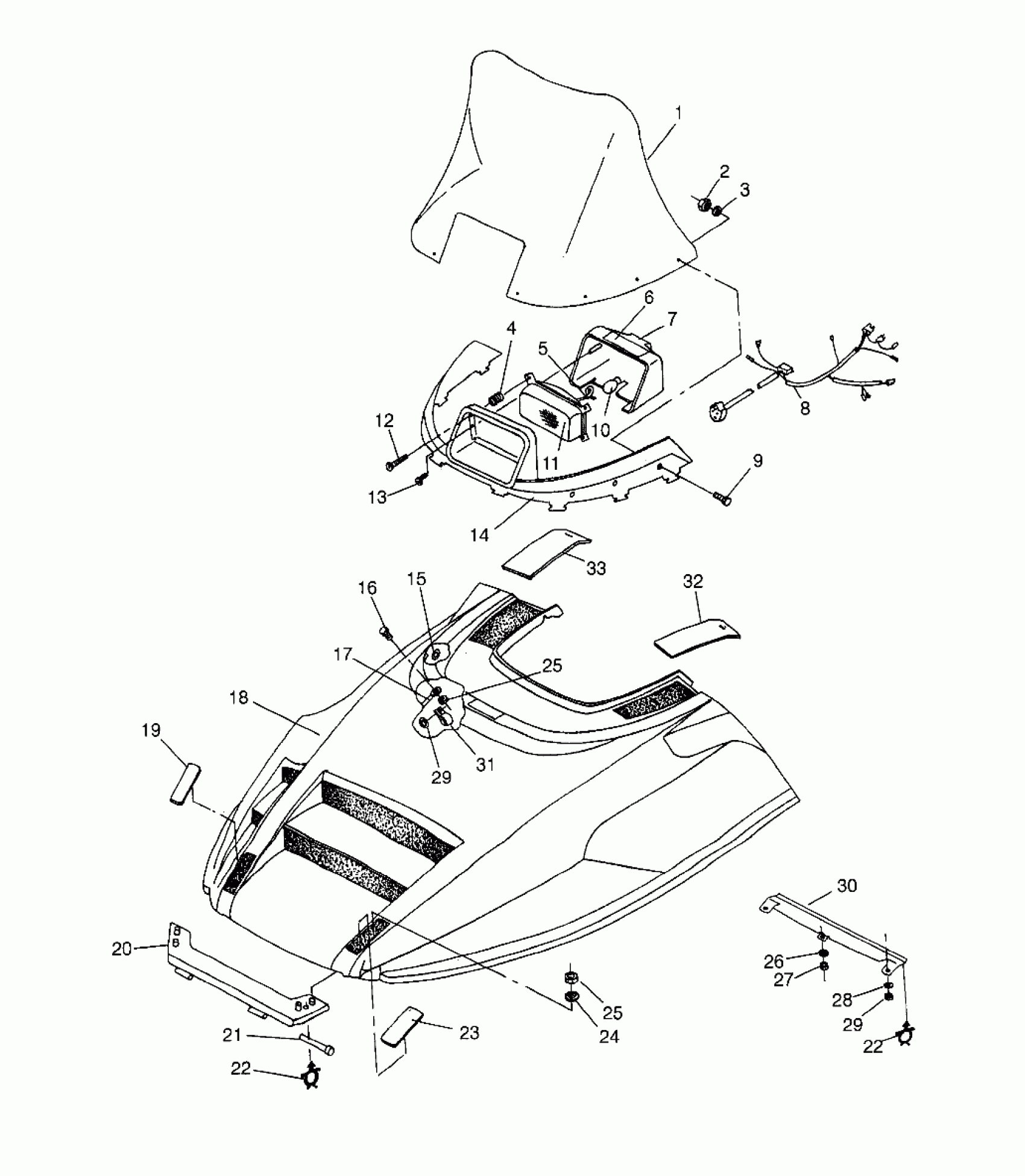

Polaris LITE - 0983433 HOOD - 0983431 (4941864186a009) Diagram
#
1
WINDSHIELD,LO,CLR,(LITE)
5431483
Unavailable
2
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
3
WASHER(10) Substituted by 7558201
7555799
Unavailable
4
SPRING-ADJ
4032002
Unavailable
5
RETAINER,H/L BULB
4032063
Unavailable
6
DECAL,OPER.CAUTION
7075356
Unavailable
7
COVER, HEADLAMP
5431209-070
Unavailable
8
HARNESS,HEADLIGHT (Lite)
2460302
Unavailable
8
HARNESS,MAIN WIRE (Deluxe)
2460505
Unavailable
9
SCREW(10)
7512023
Unavailable
10
BULB, H/L
4030028
$29.99
11
HEADLIGHT ASM. (Incl. 5,10)
4032038
Unavailable
12
SCREW, ADJ.(10)
4032003
Unavailable
13
SCREW(10)
7512054
$2.39
14
MOUNT,W/S,TEAL (Deluxe)
5431208-168
Unavailable
14
MOUNT,W/S,P.RED MET. (Lite)
5431208-245
Unavailable
15
RETAINER,WINDSHIELD,(10)
5410970
$1.49
16
BOLT(10)
7512261
$4.99
17
CABLE,HOOD RETAINER
7080414
Unavailable
18
HOOD ASM,(LITE),TEAL MET. (Incl. Foam/Foil) (Deluxe)
2631747-168
Unavailable
18
HOOD,LITE,SP,P.RED (Incl. Foam/Foil) (Lite)
2631747-245
Unavailable
19
COVER,RH,HINGE,TEAL (Deluxe)
5431218-168
$19.84
19
COVER,RH,HINGE,POR.RED MET. (Lite)
5431218-245
Unavailable
20
HINGE, BLK.
2635009-067
Unavailable
21
RIVET(50)
7661626
Unavailable
22
CLIP, PLASTIC(10)
4020139
$4.79
22
CLIP, PLASTIC(10)
4020139
$4.79
23
COVER,LH,HINGE,TEAL (Deluxe)
5431217-168
Unavailable
23
COVER,LH,HINGE,POR.RED MET. (Lite)
5431217-245
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
NUT-LOCK(10)
7542122
$1.49
25
NUT-LOCK(10)
7542122
$1.49
26
WASHER, FLAT(10)
7558201
$5.79
27
NUT, PUSH-ON(10)
7670068
$2.39
28
WASHER(10)
7555806
$1.49
29
PUSH-ON NUT(10)
7670017
$1.83
29
PUSH-ON NUT(10)
7670017
$1.83
30
DEFLECTOR, HOOD
5222477
Unavailable
31
CLAMP(10)
7080583
Unavailable
32
COVER ASM,RH,TOOL,TEAL (Deluxe)
2652132-168
$27.22
32
COVER,RH,TOOL,POR.RED MET. (Lite)
5431216-245
$27.22
33
COVER ASM,LH,TOOL,TEAL (Deluxe)
2652131-168
Unavailable
33
COVER,LH,TOOL,POR.RED MET. (Lite)
5431215-245
$27.22
