FRONT SUSPENSION and SKI - 0983433 (4941864186B001)

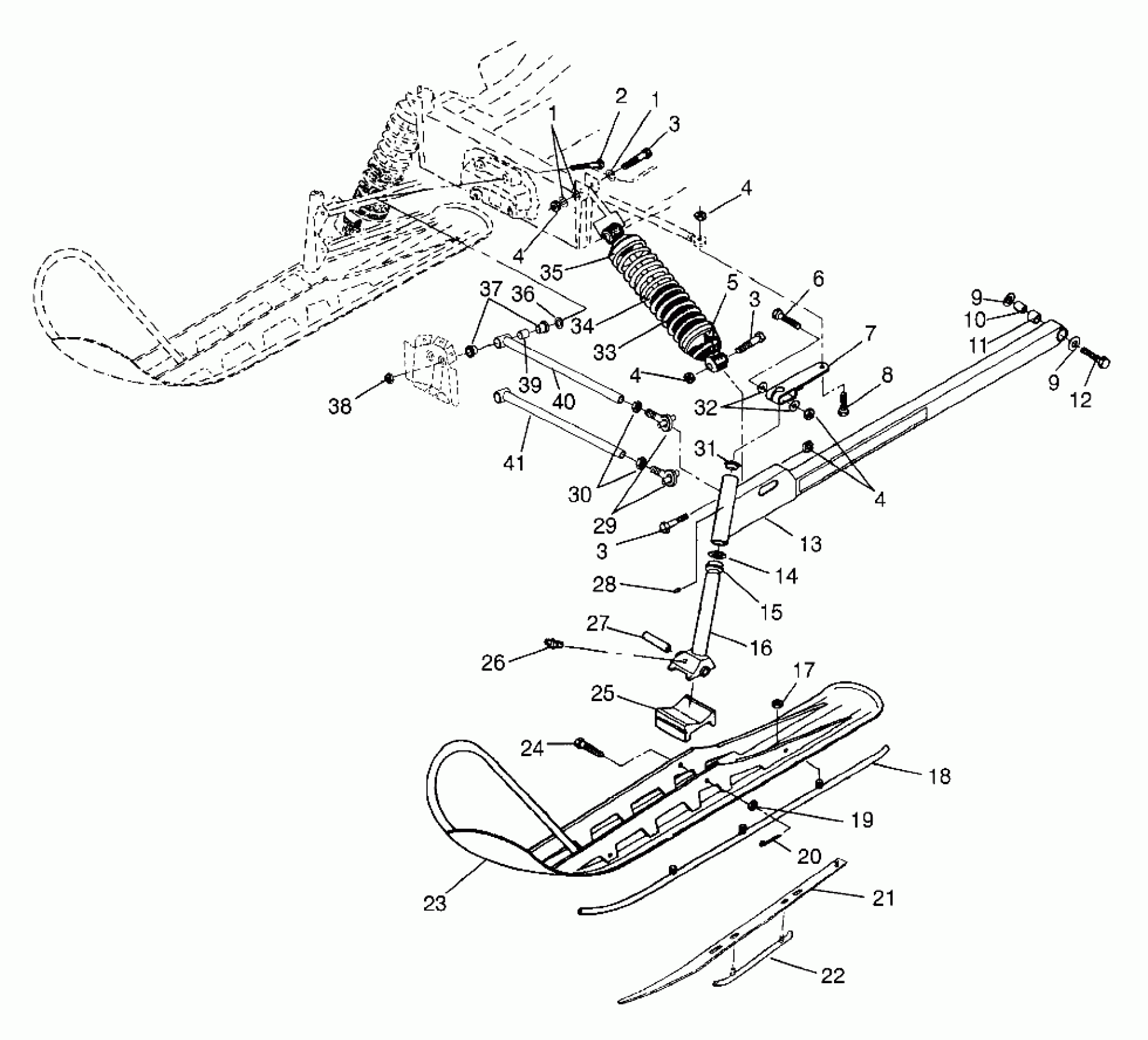

Polaris LITE - 0983433 FRONT SUSPENSION and SKI - 0983433 (4941864186B001) Diagram
#
1
WASHER(10)
7555806
$1.49
1
WASHER(10)
7555806
$1.49
2
BOLT(10)
7515417
$4.79
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
SHOCK,FR.SUSP.
7041284
Unavailable
6
BOLT(10) Substituted by 7517583
7515491
Unavailable
7
Arm, Steering
5220326-067
Unavailable
8
BOLT Substituted by 7512404
7515490
Unavailable
9
WASHER(10)
7555721
$1.49
9
WASHER(10)
7555721
$1.49
10
TUBE,TRAILING ARM
5010187
Unavailable
11
PIVOT-TRAILING ARM
5410382
Unavailable
12
BOLT(10)
7512557
$7.60
13
ARM,LH TRLG,BLK.
1823136-067
Unavailable
13
ARM,RH TRLG,BLK.
1823137-067
$266.49
14
WASHER SPECIAL(10)
7556509
$1.59
15
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
16
SPINDLE, BLK.
6230073-067
Unavailable
17
NUT-5/16-18 NYLOK-Y
7542324
$1.49
18
SKAG,SHORT(20) (Lite)
1820267
$23.99
19
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
20
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
21
PLATE, SKAG (Deluxe)
1011829-067
$54.99
22
SKAG, BLK. (Deluxe)
1820318-067
$49.99
23
SKI, BLK.
1820333-067
Unavailable
24
BOLT(10)
7515462
$8.79
25
Stop, Rubber
5521231
Unavailable
26
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
27
BUSHING,PIVOT,(10)
5010158
$19.99
28
ZERK,FITTING,THREADED(10)
7080433
$1.49
29
ROD END,RH,WIDEBORE Substituted by 7061069
7060157
Unavailable
30
NUT JAM(10)
7542520
$2.39
31
BUSHING-FLANGE
3573909
$2.39
32
WASHER(10) Substituted by 7555832
7555851
Unavailable
33
SPACER,SHOCK RETAINER(10)
5210953
$6.39
34
SPRING,COMP.,BLK.
7041261-067
$164.99
35
RETAINER-TOP
5220225
$10.39
36
WASHER(10)
7555797
$3.99
37
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
38
NUT LOCK(10)
7542403
$3.99
39
Bushing
5010252
$1.59
40
ROD,RAD,UP.,BLK.
1822129-067
Unavailable
41
ROD,RAD,LOW.BLK.
1822128-067
Unavailable
