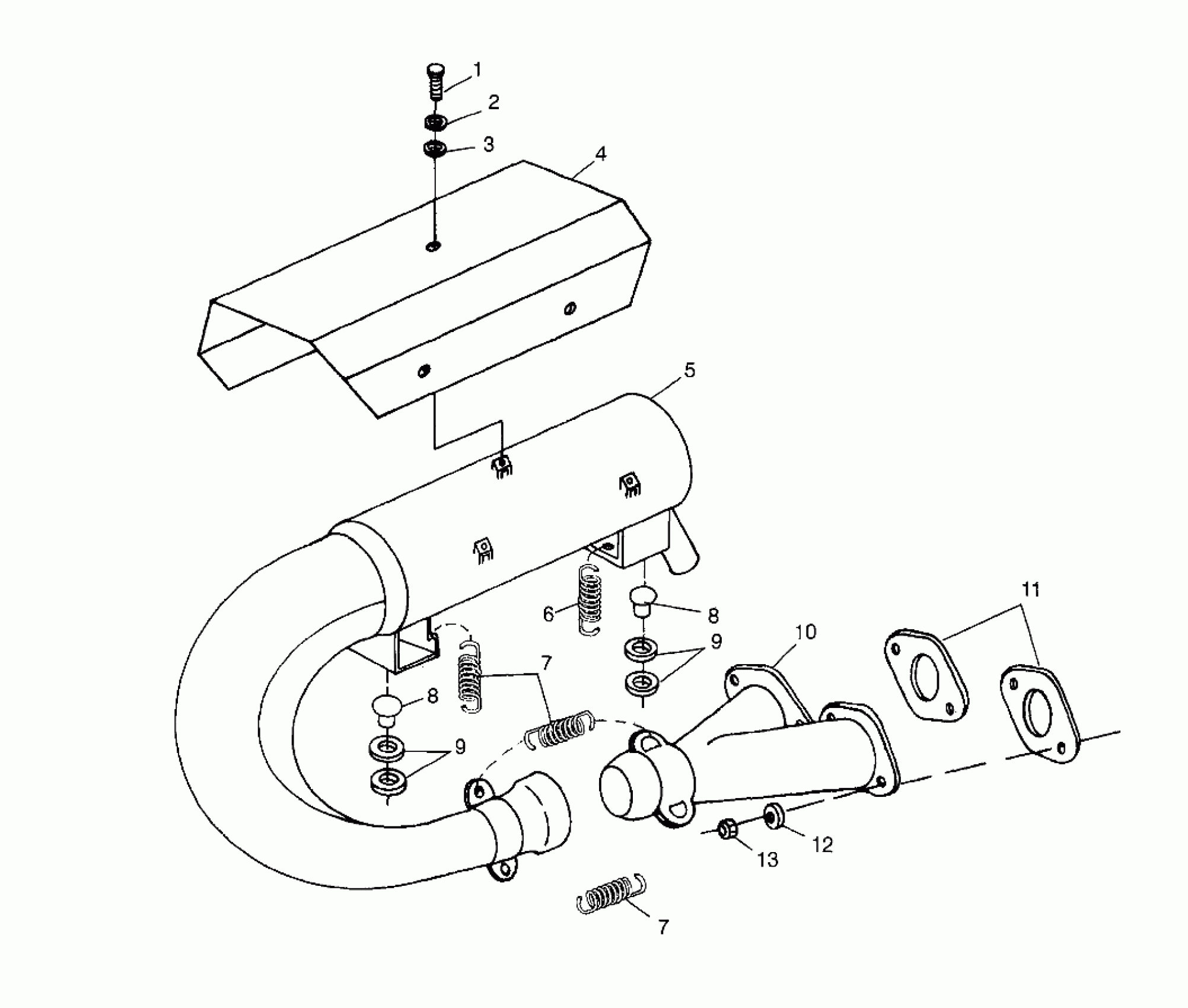

Polaris LITE - 0983433 EXHAUST SYSTEM - 0983433 (4941864186B014) Diagram

BOLT(10)

7515354

$3.99

WASHER(10)

7555734

$1.49

LOCK WASHER(10)

7552901

$1.49

SHIELD, MUFFLER

5222704

Unavailable

MUFFLER,(LITE GT)

1260578-029

Unavailable

SPRING-EXHAUST(10)

7042029

$4.84

SPRING, EXHAUST(10)

7042031

$5.65

SPRING, EXHAUST(10)

7042031

$5.65

DAMPNER, VIB.

5410467

$8.79

DAMPNER, VIB.

5410467

$8.79

WASHER, THRUST(10)

7555788

Unavailable

WASHER, THRUST(10)

7555788

Unavailable

Manifold

1260497-029

Unavailable

Gasket, Exhaust (See Footnote) (See Cylinder Page C4, Ref. 13)

-------

Unavailable

Washer, Lock (See Footnote) (See Cylinder Page C4, Ref. 14)

-------

Unavailable

Nut (See Footnote) (See Cylinder Page C4, Ref. 15)

-------

Unavailable
