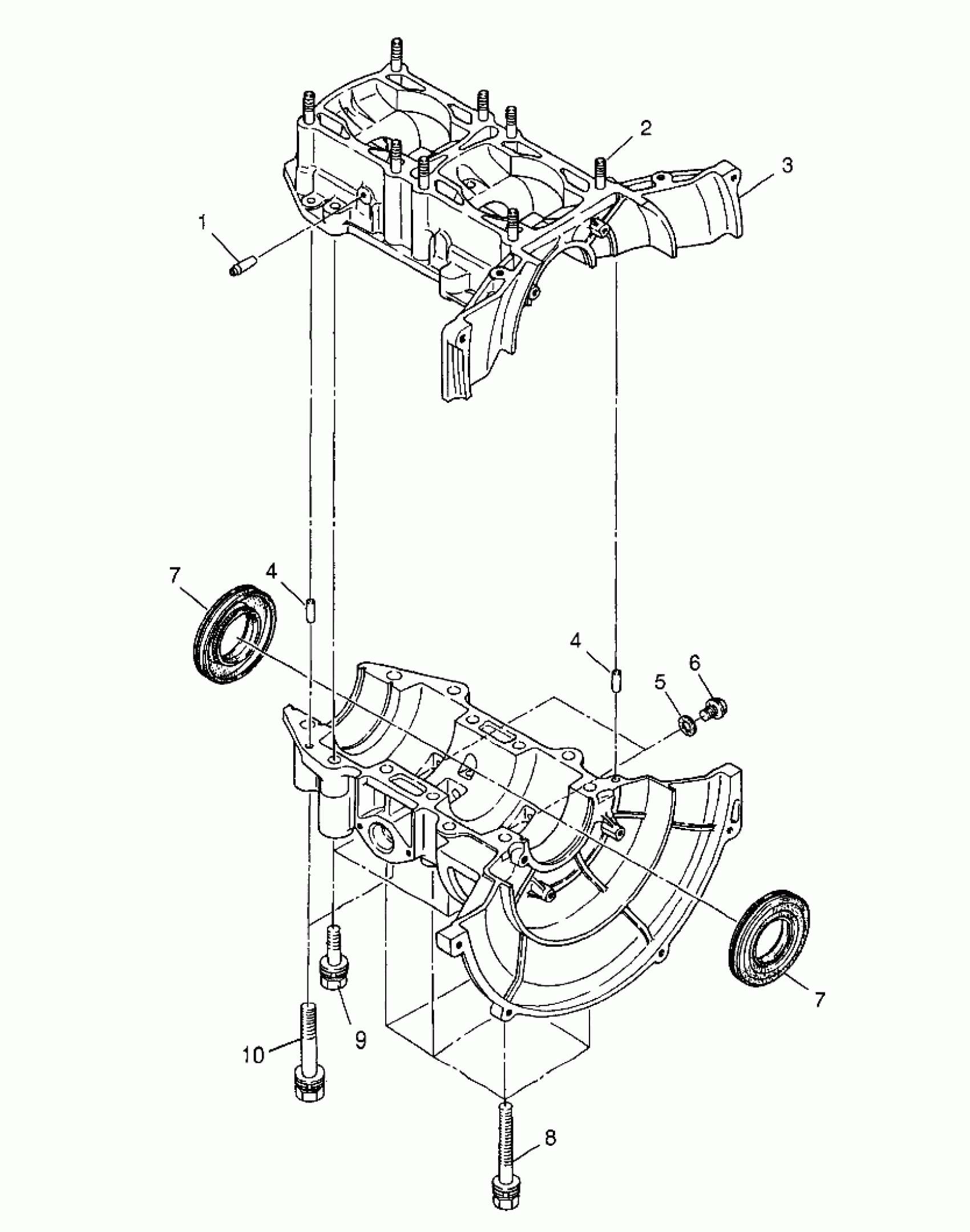

Polaris LITE - 0983433 CRANKCASE LITE 0983433 and LITE DELUXE 0983431 (4941864186C003) Diagram

#

Description

Price

1

PIPE, PULSE

3083798

$9.52

2

Stud

3083564

$11.90

3

CRANKCASE (Incl. 1-4, 8-10)

3083980

Unavailable

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

5

WASHER,FLAT,(10)

7555998

$1.49

6

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

SEAL, OIL(10)

3083045

$36.41

7

SEAL, OIL(10)

3083045

$36.41

8

BOLT W/WASHER

3080739

$6.39

9

BOLT&WASHER ASM.

3083566

$1.54

10

BOLT

3083565

$3.98
