CARBURETOR LITE 0983433 and LITE DELUXE 0983431 (4941864186C007)

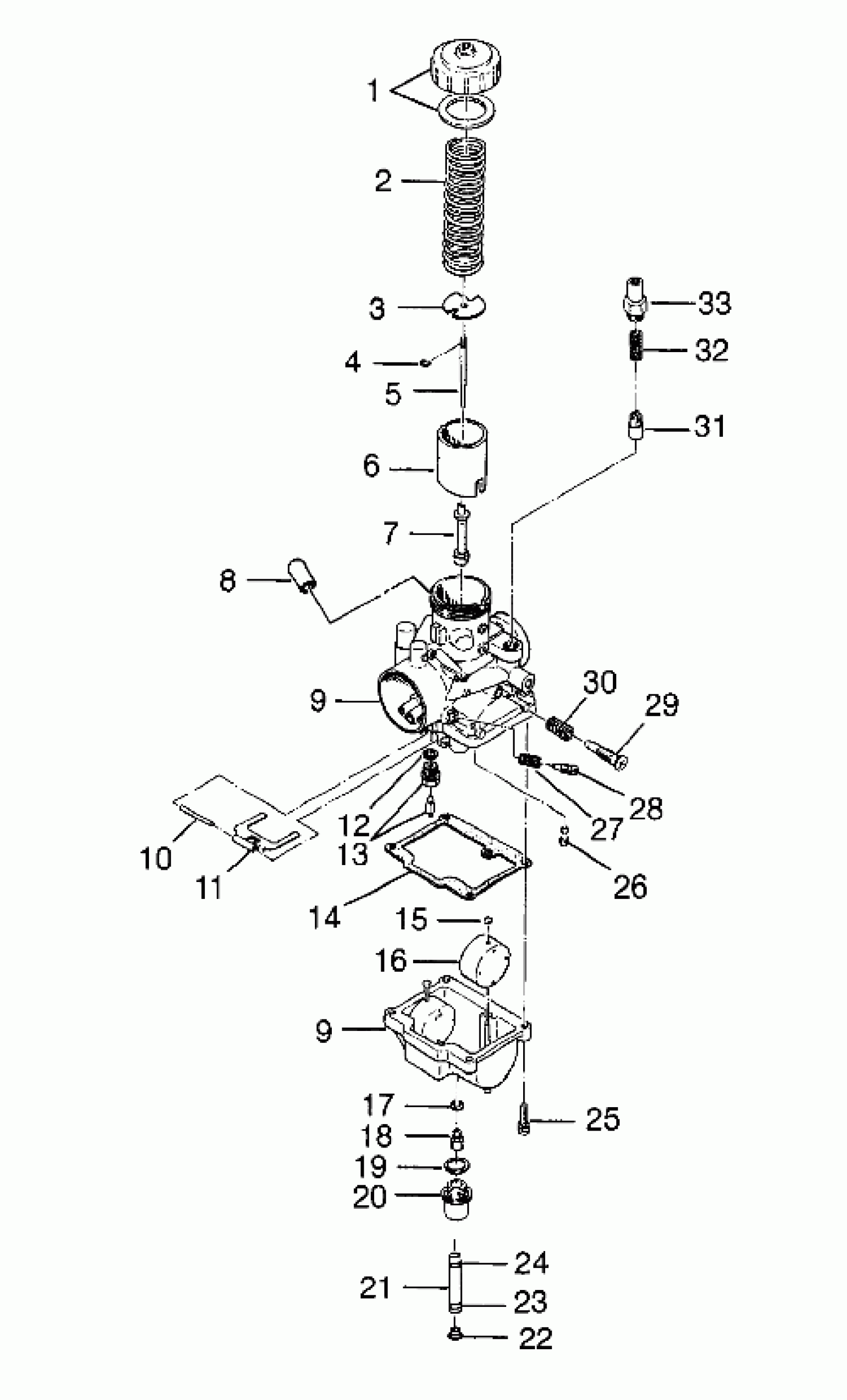

Polaris LITE - 0983433 CARBURETOR LITE 0983433 and LITE DELUXE 0983431 (4941864186C007) Diagram
#
Description
Price
1
TOP,MIX CHAMBER (Incl. Gasket)
3130060
Unavailable
2
SPRING,THROTTLE
3130354
$28.32
3
PLATE,THROTTLE
3130002
$20.22
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (5DP7-2)
3130155
$24.27
6
VALVE,THROTTLE,2.5 (2.5)
3130468
$36.41
7
NEEDLE JET, O-6 (169)
3130469
$32.37
8
CAP
3130479
$14.56
9
CARBURETOR (Incl. 1-20, 25-33)
3130688
Unavailable
9
CARBURETOR (Incl. 1-20, 25-33)
3130688
Unavailable
10
PIN, FLOAT
3130361
$8.89
11
ARM,FLOAT
3130018
$24.27
12
PACKING(10)
3130017
$4.03
13
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM
3130021
$40.46
17
WASHER (10)
3130014
$1.59
18
JET,MAIN,HX.HD#150 (#150)
3130113
Unavailable
19
O RING
3130239
Unavailable
20
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
21
FUEL LINE, 5 FT.
8450045-153
$99.99
22
PLUG,TRAP
5431893
$12.94
23
CLAMP,HOSE(10)
7080544
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
SCREW & WASHER(10)
3130025
$3.19
26
JET,PILOT,#35(10) (#35)
3130066
$8.89
27
SPRING,AIR ADJUST
3130012
$8.89
28
SCREW,AIR
3130011
$19.99
29
Screw, Throttle Stop
3130324
$19.84
30
SPRING,THROTTLE ADJ.
3130010
$8.89
31
PLUNGER ASM, STARTER
3130328
$32.37
32
SPRING,PLUNGER
3130006
$8.89
33
Cap, Plunger
3130359
$14.56
