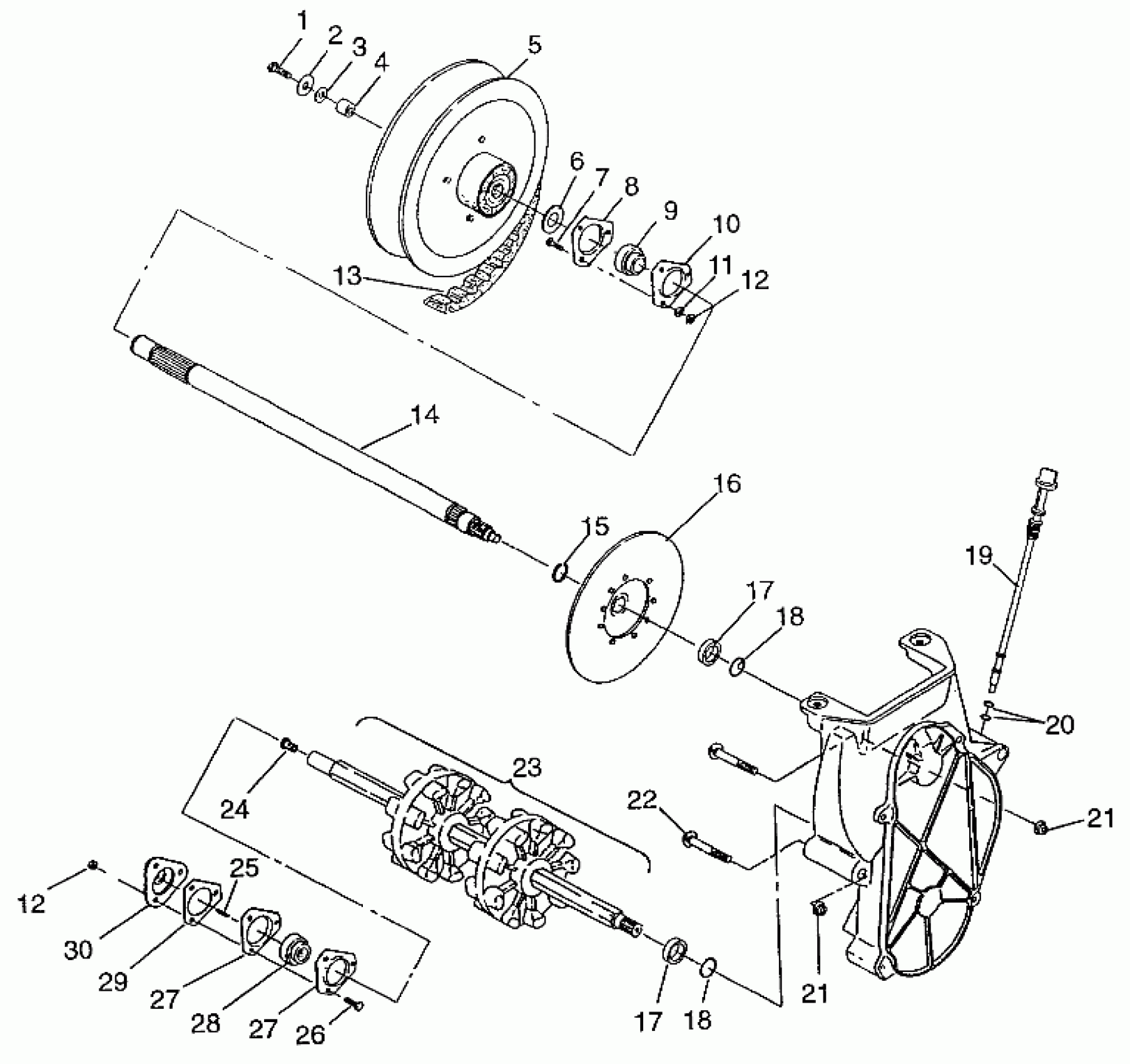

Polaris LITE - 0973433 DRIVE TRAIN - 0973433 (4938273827B006) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
Asm., Driven Clutch (See Pg. B12, Ref. 10)
-------
Unavailable
6
WASHER SPECIAL(10)
7556509
Unavailable
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
FLANGETTE,(GREASABLE)
5222647
$24.27
9
BEARING,JACKSHAFT
3514519
$64.99
10
FLANGETTE, (2-BOLT)
5222393
Unavailable
11
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
12
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
BELT, DRIVE(5)
3211058
$79.99
14
JACKSHAFT ASM. (Incl. 15)
1332146-067
Unavailable
15
RING, RETAINING(10)
7710422
$3.99
16
DISC ASM, BRAKE
1910086
Unavailable
17
SLEEVE, SEAL
5020588
$23.99
17
SLEEVE, SEAL
5020588
$23.99
18
O RING,(10)
5410613
$1.99
18
O RING,(10)
5410613
$1.99
19
DIPSTICK Substituted by 1332143
5431419
Unavailable
20
O-RING
5410675
$1.60
21
NUT(10)
7542423
$3.99
21
NUT(10)
7542423
$3.99
22
BOLT(10)
7515428
$4.79
23
DRIVESHAFT ASM,HD,NARROW (Incl. 24)
1590250
Unavailable
24
BUSHING METAL SPEEDO
3280019
$11.99
25
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
26
BOLT(10)
7512331
$3.99
27
FLANGETTE
5222751
$16.44
27
FLANGETTE
5222751
$16.44
28
BEARING,DRIVESHAFT
3514518
$64.99
29
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
30
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
