CARBURETOR LITE 0973433 and LITE DELUXE 0973431 (4938273827C006)

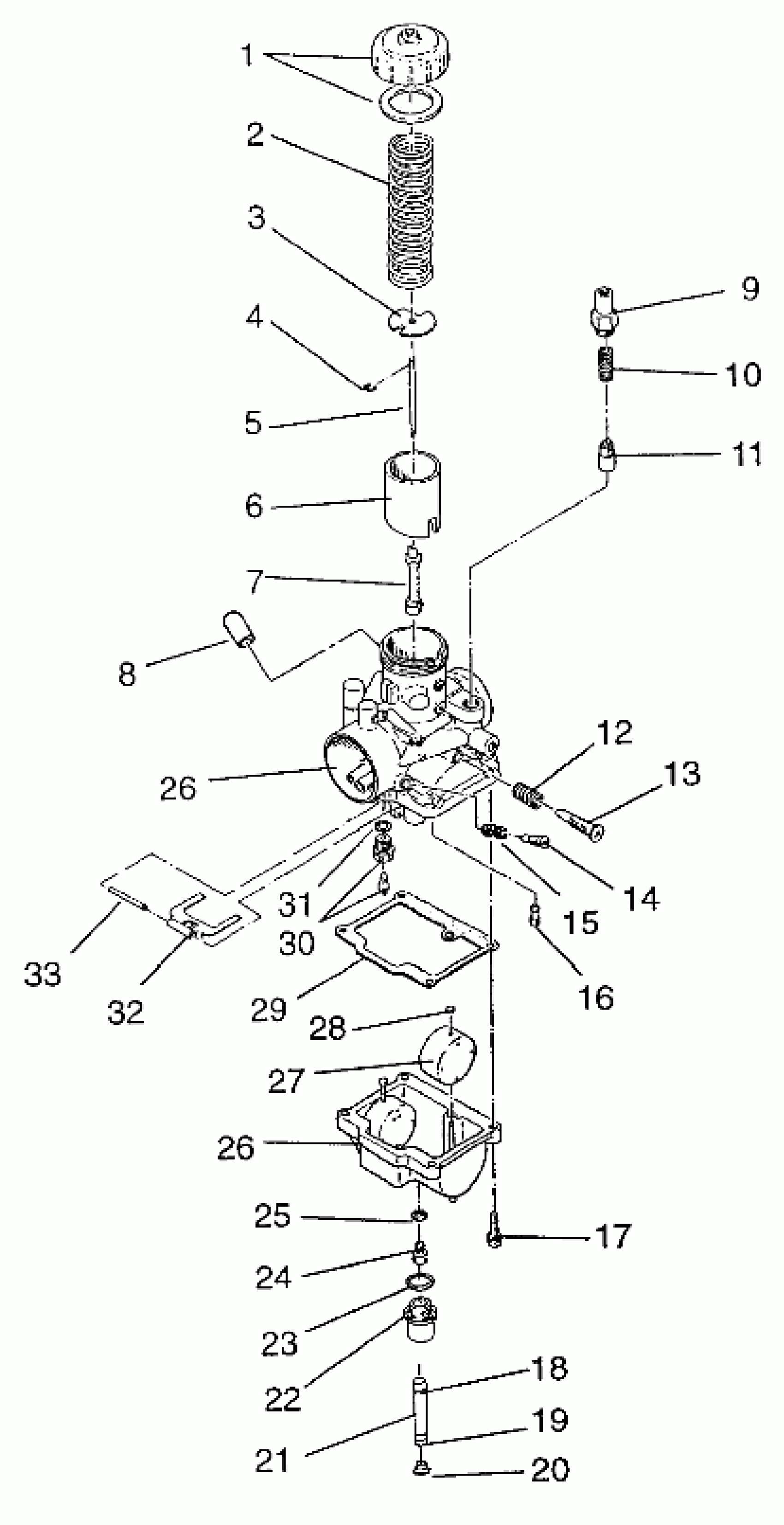

Polaris LITE - 0973433 CARBURETOR LITE 0973433 and LITE DELUXE 0973431 (4938273827C006) Diagram
#
Description
Price
1
TOP,MIX CHAMBER (Incl. Gasket)
3130060
Unavailable
2
SPRING,THROTTLE
3130354
$28.32
3
PLATE,THROTTLE
3130002
$20.22
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (5DP7-2)
3130155
$24.27
6
VALVE,THROTTLE,2.5 (2.5)
3130468
$36.41
7
NEEDLE JET, O-6 (169)
3130469
$32.37
8
CAP
3130479
$14.56
9
Cap, Plunger
3130359
$14.56
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
Screw, Throttle Stop
3130324
$19.84
14
SCREW,AIR
3130011
$19.99
15
SPRING,AIR ADJUST
3130012
$8.89
16
JET,PILOT,#35(10) (#35)
3130066
$8.89
17
SCREW & WASHER(10)
3130025
$3.19
18
CLAMP,SPRING,(10)
7080534
$1.59
19
CLAMP,HOSE(10)
7080544
Unavailable
20
PLUG,TRAP
5431893
$12.94
21
FUEL LINE, 5 FT.
8450045-153
$99.99
22
NIPPLE
3130573
$32.37
23
O RING
3130239
Unavailable
24
JET,MAIN,HX.HD#150 (#150)
3130113
Unavailable
25
WASHER (10)
3130014
$1.59
26
CARBURETOR (Incl. 1-17, 22-33)
3130688
Unavailable
26
CARBURETOR (Incl. 1-17, 22-33)
3130688
Unavailable
27
FLOAT ASM
3130021
$40.46
28
CAP,(10)
3130237
$4.03
29
PACKING,FLOAT CHAMBER
3130020
$16.17
30
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
31
PACKING(10)
3130017
$4.03
32
ARM,FLOAT
3130018
$24.27
33
PIN, FLOAT
3130361
$8.89
