BLOWER HOUSING & RECOIL LITE 0973433 and LITE DELUXE 0973431 (4938273827C010)

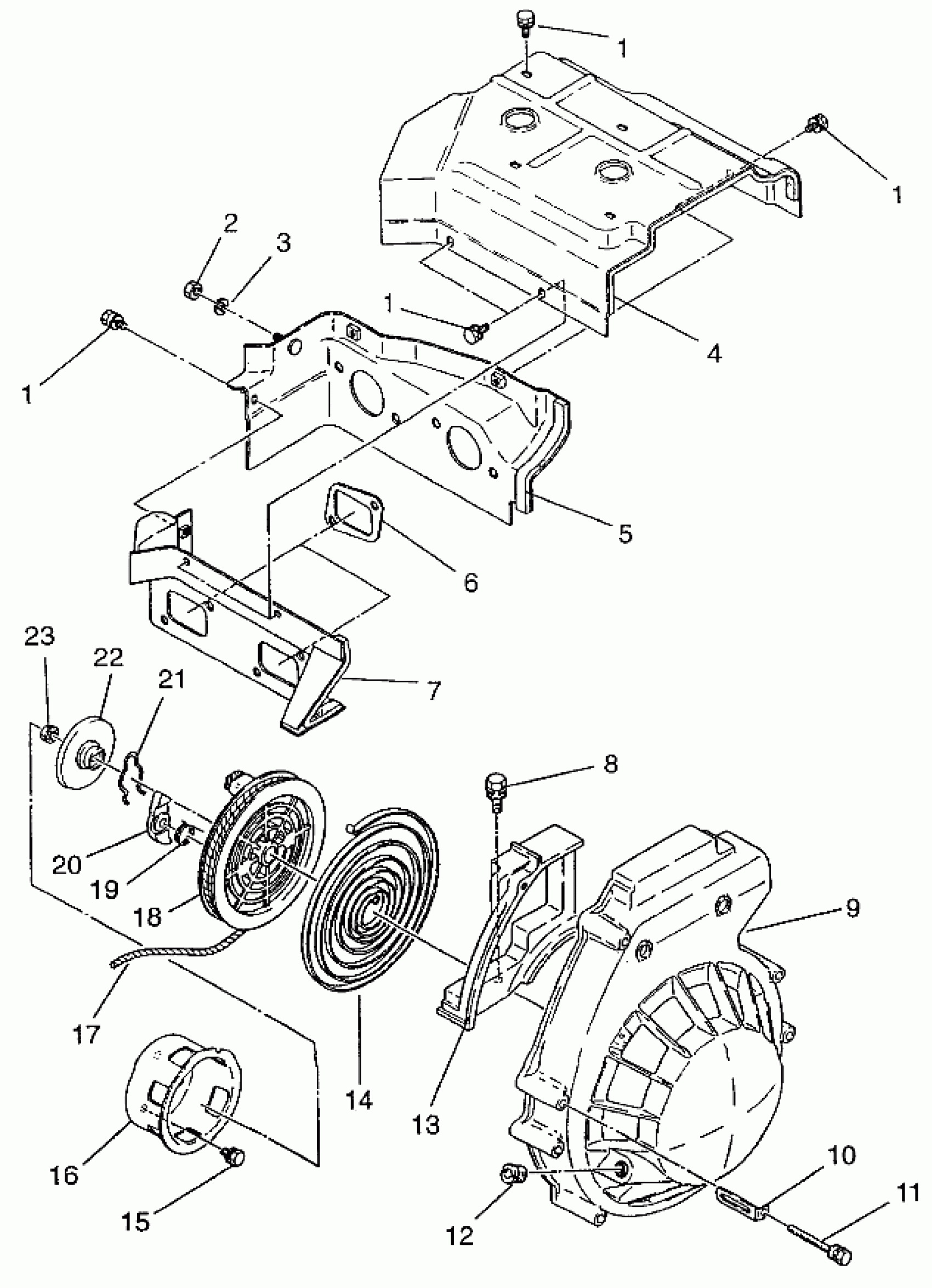

Polaris LITE - 0973433 BLOWER HOUSING & RECOIL LITE 0973433 and LITE DELUXE 0973431 (4938273827C010) Diagram
#
Description
Price
1
BOLT&WASHER ASM(10)
3083715
$0.63
1
BOLT&WASHER ASM(10)
3083715
$0.63
1
BOLT&WASHER ASM(10)
3083715
$0.63
1
BOLT&WASHER ASM(10)
3083715
$0.63
2
NUT(10)
3084375
$2.99
3
WASHER SPRING(10)
3080077
$2.39
4
BAFFLE#1, CYL.
3084420
Unavailable
5
BAFFLE#2, CYL.
3084421
$79.03
6
GASKET, INTAKE Substituted by 3085846
3084024
Unavailable
7
BAFFLE,CYL.#3 Substituted by 3085847 (Incl. 6) Non-Asbestos
3084423
$81.17
8
BOLT & WASHER
3081663
$1.49
9
CASE, STARTER
3083589
$148.79
9
RECOIL STARTER (Incl. 9, 12, 14, 17, 18, 19, 20, 21, 22, 23)
3083588
Unavailable
10
Clamp
3083590
$3.99
11
BOLT&WASHER
3083729
$3.49
12
GUIDE-ROPE
3083107
Unavailable
13
HOUSING, BLOWER#2
3083591
$17.43
14
Spring, Spiral
3083376
$179.11
15
BOLT,(10)
3081665
$3.19
16
PULLEY-STARTING
3083108
$29.52
17
ROPE,100 FT,NYL.STARTER (Bulk, Cut to Fit)
2870621
Unavailable
18
REEL, REWIND
3083377
$56.65
19
Spring, Return
3083463
$4.03
20
Ratchet
3083378
$20.22
21
Spring, Friction
3083379
$24.27
22
Plate, Friction
3083464
$28.32
23
NUT, FLANGE ,(10)
3083381
$2.99
