TUNNEL and SEAT ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 09 (4928902890A006)

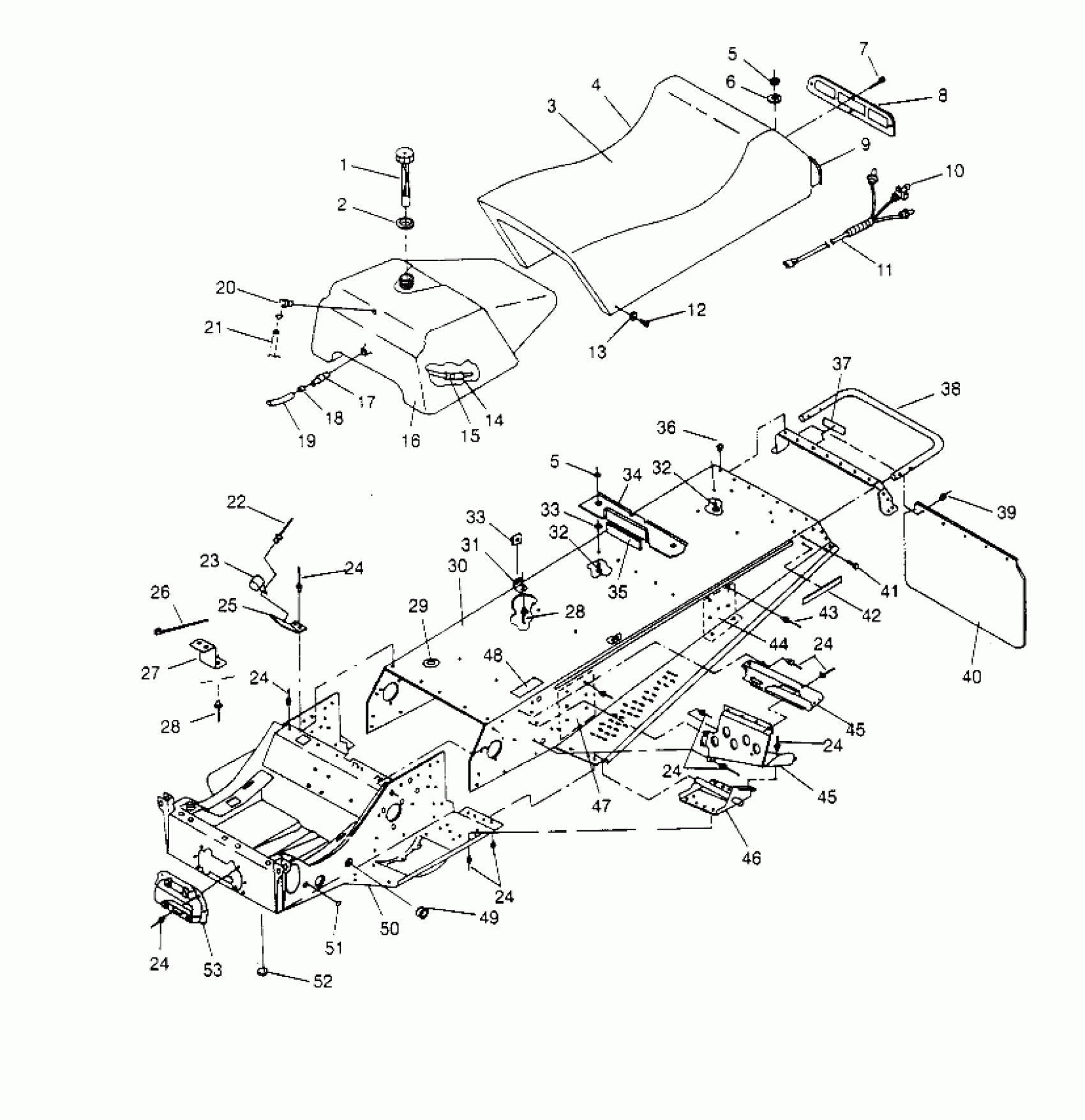

Polaris LITE - 0953433 TUNNEL and SEAT ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 09 (4928902890A006) Diagram
#
1
CAP,GAS,W/GAUGE
2511245
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM,(LITE DLX.) (Deluxe)
2681766
Unavailable
3
SEAT CUSHION,(STAR/LITE'94) (StarLite)
2681678
Unavailable
3
SEAT ASM,(LITE) [No Longer Available] (Lite)
2681764
Unavailable
4
COVER,SEAT (StarLite)
2681767
Unavailable
4
COVER SEAT,(STAR/LITE'94) (Deluxe)
2681679
Unavailable
4
COVER,SEAT,(LITE) (Lite)
2681765
Unavailable
5
NUT-LOCK(10)
7542122
$1.49
5
NUT-LOCK(10)
7542122
$1.49
6
WASHER,WROUGHT(10)
7558302
$1.59
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
Harness, Taillight
2460399
Unavailable
12
SCREW(10)
7515111
$7.19
13
WASHER(10)
7555798
$1.49
14
FUELPICKUP,W/STRAINER
7052037
$12.94
15
RING, COMPRESSION(10)
7080402
$1.60
16
TANK,FUEL,(LITE GT) Substituted by 2520179 (Lite, Lite Deluxe)
2511214
Unavailable
16
TANK, FUEL (StarLIte)
2511215
Unavailable
17
FITTING - OUTLET(10) (Lite, Deluxe)
7052023
$24.99
17
FITTING, OUTLET (StarLite)
7052056
$6.23
18
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
19
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
20
FITTING,90 DEG,1/8,(10) (Lite, Deluxe)
7052095
$4.79
20
FITTING,(10) (StarLIte)
7052077
$6.39
21
DESC NOT_AVAILABLE
8360009-175
Unavailable
22
RIVET,(50) (StarLite)
7621477
$1.19
23
GUIDE, RECOIL (StarLite)
5431385
$10.51
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
25
BRKT,ROPE GUIDE,BLK. (StarLite)
5222687-067
$59.99
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
BRKT,STAND,BLK.
5220520-067
$4.13
28
RIVET(50)
7621453
$3.19
28
RIVET(50)
7621453
$3.19
29
GROMMET RUBBER
5410021
Unavailable
30
TUNNEL ASM,(LITE) (Incl. 33, 44, 47)
1011881
$420.41
31
BRKT,CONSOLE/SEAT MT.
5222452-067
$25.59
32
BOLT(10)
7512193
$2.39
32
BOLT(10)
7512193
$2.39
33
SPEED NUT(10)
7670021
$6.99
33
SPEED NUT(10)
7670021
$6.99
34
STRAP,GASTANK,BLK.
5222330-067
Unavailable
35
CUSHION,TANK H.D.
5420126
Unavailable
36
RIVET ,(50)
7661836
$0.63
37
DECAL,TRACK/SEAT(CPSC)
7074254
Unavailable
38
BUMPER, REAR
5224480-067
Unavailable
39
POP RIVET(50)
7621418
$1.49
40
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
41
SCREW(10)
7512252
Unavailable
42
REFLECTOR RED
2670070
$9.91
43
RIVET ,(50)
7661837
$1.49
44
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
44
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
45
FOOTREST ASM,LH
1011830
$140.79
45
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
45
FOOTREST ASM,LH
1011830
$140.79
45
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
46
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
46
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
47
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
48
Pad, Air Box
5810502
Unavailable
49
BUSHING,SNAP(10) (Lite, Deluxe)
7080404
Unavailable
50
BULKHEAD, (STARLITE) (StarLite)
1011885-067
Unavailable
50
BULKHEAD,BLK,(94LITE) Substituted by 1012587-067 (Lite, Deluxe)
1011983-067
$649.99
51
PLUG, HOLE(10)
7080416
$5.65
52
PLUG-HOLE (Lite Only)
7080398
$4.84
53
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
