SUSPENSION ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 0953431 (4928902890B009)

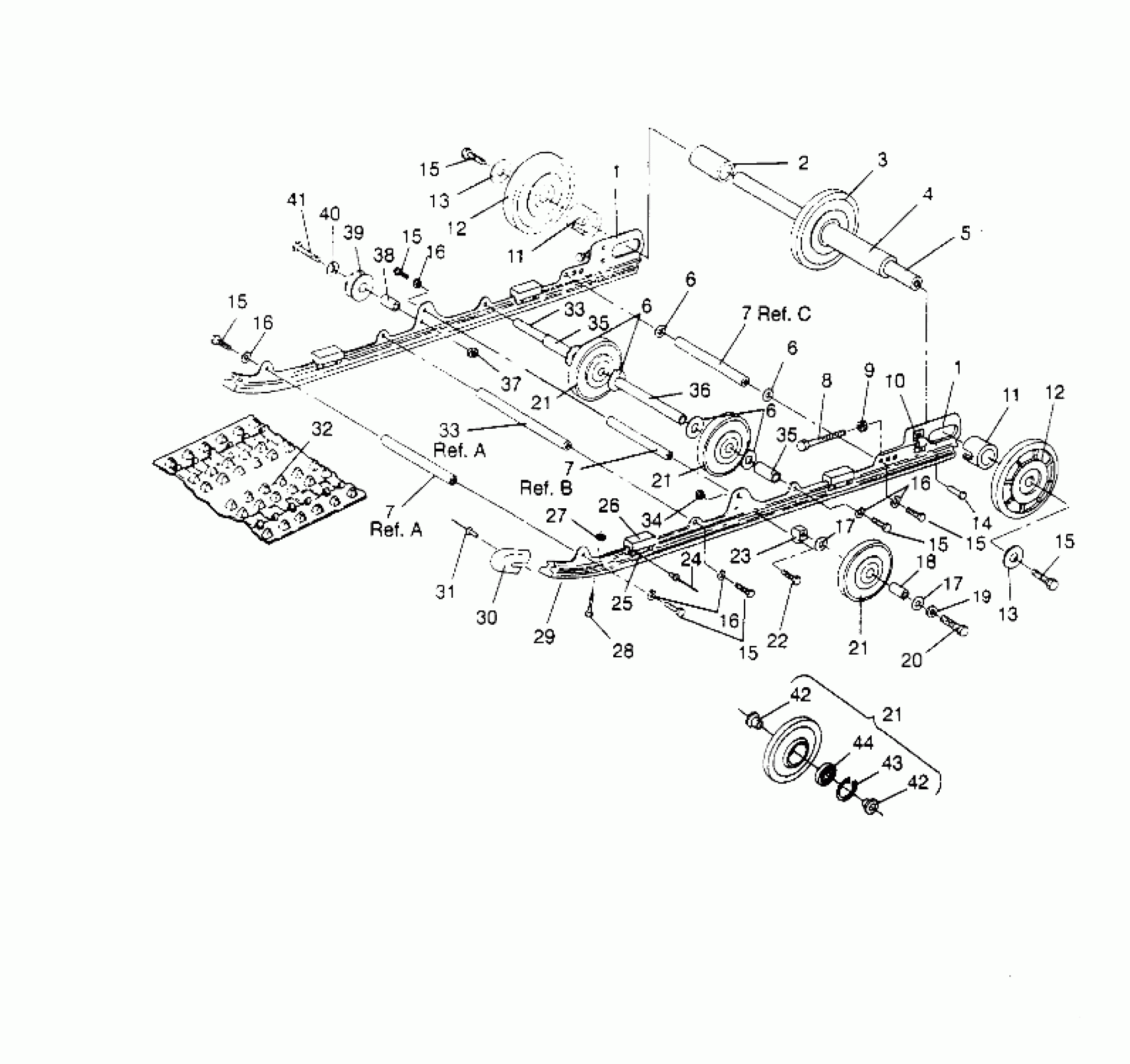

Polaris LITE - 0953433 SUSPENSION ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 0953431 (4928902890B009) Diagram
#
1
RAIL ASM,RH, SILVER (Incl. 10, 25, 26, 30)
1540554
Unavailable
1
RAIL ASM, LH,SILVER (Incl. 10, 25, 26, 30)
1540553
Unavailable
1
RAIL ASM,RH, SILVER (Incl. 10, 25, 26, 30)
1540554
Unavailable
1
RAIL ASM, LH,SILVER (Incl. 10, 25, 26, 30)
1540553
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
SHAFT,PIVOT ARM
5020723
$29.99
7
SHAFT,PIVOT ARM
5020723
$29.99
7
SHAFT,PIVOT ARM
5020723
$29.99
8
BOLT, ADJUSTER(10)
7515455
$29.99
9
NUT(10)
7542440
Unavailable
10
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
11
SPACER-IDLER-OUTER
5332641
Unavailable
11
SPACER-IDLER-OUTER
5332641
Unavailable
12
WHEEL,IDLER,PURPLE"C" (Lite)
1594060
Unavailable
12
WHEEL,IDLER,TEAL (Deluxe)
1594050
Unavailable
12
WHEEL,IDLER,BLUE (StarLite)
1594038
Unavailable
12
WHEEL,IDLER,PURPLE"C" (Lite)
1594060
Unavailable
12
WHEEL,IDLER,TEAL (Deluxe)
1594050
Unavailable
12
WHEEL,IDLER,BLUE (StarLite)
1594038
Unavailable
13
WASHER(10) Substituted by 7556130
7571629
Unavailable
13
WASHER(10) Substituted by 7556130
7571629
Unavailable
14
RIVET,(50)
7621501
$2.39
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
15
BOLT(10)
7515526
$1.19
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
17
WASHER(10)
7555804
$3.99
17
WASHER(10)
7555804
$3.99
18
SPACER
5332786
$7.99
19
LOCK WASHER(10)
7553201
$3.99
20
BOLT(10)
7512659
$7.99
21
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl. 42-44)
1543018
$56.65
22
BOLT(10)
7512404
$3.99
23
BRACKET,BOGIE WHEEL
5130570
$48.56
24
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
25
REINF., BUMPER
5222629
$13.75
26
BUMPER, RAIL
5810554
$7.27
27
NUT-LOCK(10)
7542122
$1.49
28
SCREW(10)
7512227
$3.19
29
SLIDER,BLACK(2)
5521320
Unavailable
30
COVER-RAIL TIP
5430627
$32.37
31
RIVET(50)
7621435
$1.49
32
TRACK,('LITE'94)
5410792
Unavailable
33
SHAFT,PIVOT ARM
5020724
$29.99
33
SHAFT,PIVOT ARM
5020724
$29.99
34
NUT LOCK(10)
7542403
$3.99
35
SPACER, OUTER
5332784
Unavailable
35
SPACER, OUTER
5332784
Unavailable
36
TUBE, SUSPENSION
5332783
Unavailable
37
NUT-LOCK(10)
7542439
$1.49
38
Spacer
5332787
Unavailable
39
ROLLER-SPRING
5430540
Unavailable
40
WASHER(10)
7555743
Unavailable
41
BOLT Substituted by 7515491
7515433
$1.59
42
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
42
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
43
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
44
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
