STEERING ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 0953431 (4928902890B004)

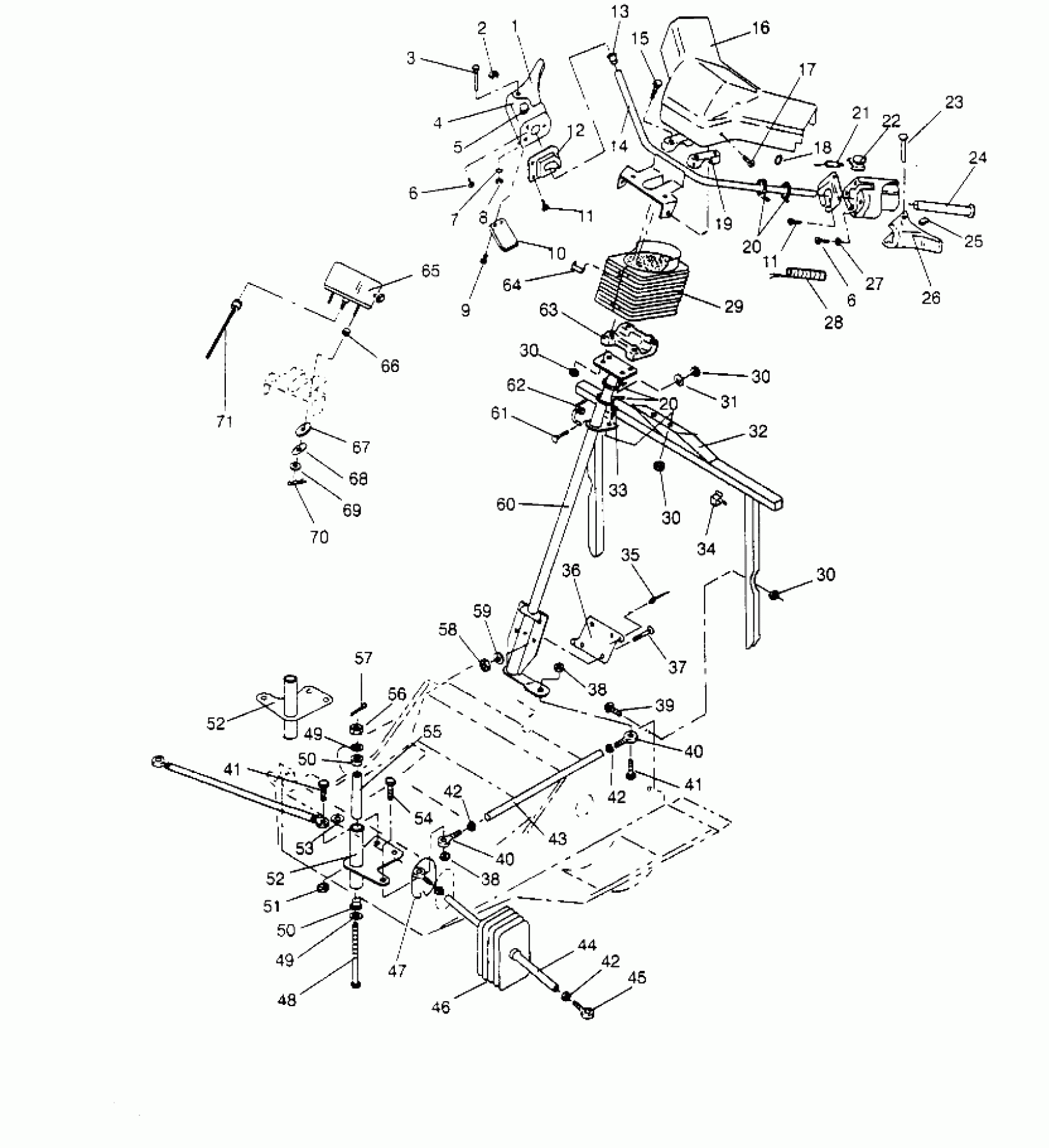

Polaris LITE - 0953433 STEERING ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 0953431 (4928902890B004) Diagram
#
1
LEVER,30 MM,W/HTR. (Deluxe)
2010147
Unavailable
3
PIN-RETAINING .186X1.780-AL
7661624
$12.79
4
BLOCK,THROTTLE/BRAKE
5431592
$49.99
5
SWITCH,AUX.SHUT-OFF
4110106
$94.99
6
SCREW-SEMS(10) (Deluxe)
7511848
$3.99
6
SCREW-SEMS(10) (Lite, StarLite)
7511848
$3.99
6
SCREW-SEMS(10) (Deluxe)
7511848
$3.99
6
SCREW-SEMS(10) (Lite, StarLite)
7511848
$3.99
7
WASHER(10)
7555730
$3.99
8
RING-RETAINING EXTERNAL
7710401
$3.99
9
SCREW(10) (Deluxe)
7511858
$3.99
10
PLATE,BLK,WIREHOLDER Substituted by 5432261 (Deluxe)
5240256-067
$24.27
11
SCREW(10)
7512465
$3.99
11
SCREW(10)
7512465
$3.99
12
BLOCK-ADAPTER
5430604
$13.75
13
CAPLUG(10) (Deluxe)
7080467
Unavailable
14
HANDLEBAR,ADJ,BLK.
1843036-067
$43.75
15
BOLT
7515144
Unavailable
16
COVER,H'BAR W/SPEEDO (Lite, Deluxe)
5431232-070
Unavailable
16
COVER,H'BAR(W/O SPEEDO) (StarLite)
5431233-070
Unavailable
17
SCREW,(10)
7512024
$4.79
18
O RING
5410591
Unavailable
19
BLOCK,H'BAR,UPPER,BLK.
5630382-067
Unavailable
20
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
21
Switch, Brake Light
4110105
Unavailable
22
Switch, Dimmer
4110104
Unavailable
23
RIVET,(50)
7661617
$4.03
24
GRIP,H'BAR,BLACK Substituted by 5432634 (Lite, StarLite)
5410272-067
$24.27
24
GRIP,H'BAR,RED Substituted by 5410272-067 (Deluxe)
5410272-093
$24.27
25
CLIP-SPEED.(10)
7670044
$4.79
26
LEVER-BRAKE
5430602
$36.41
27
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
28
HEATER GRIP ASM. (Deluxe)
2460313
Unavailable
29
BOOT,STRG.POST
5431234-070
Unavailable
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
31
WASHER,WROUGHT(10)
7558302
$1.59
32
HOOP,STRG,BLK.
1011863-067
$38.71
33
BOLT(10) Substituted by 7512269
7515101
Unavailable
34
CLIP ,(10)
5222672
Unavailable
35
RIVET-3/16-.090-.290
7661637
$1.49
36
BRKT, BOLT RETAINER
5222421
$5.52
37
BOLT(10) Substituted by 7512377
7512394
Unavailable
38
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
38
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
39
BOLT(10)
7512298
$3.99
40
ROD END, LH Substituted by 7060166
7060151
$48.56
40
ROD END, RH Substituted by 7060167
7060152
$48.56
40
ROD END, LH Substituted by 7060166
7060151
$48.56
40
ROD END, RH Substituted by 7060167
7060152
$48.56
41
BOLT(10)
7512404
$3.99
41
BOLT(10)
7512404
$3.99
42
NUT HEX(10)
7542401
$2.39
42
NUT
7542424
$1.49
42
NUT HEX(10)
7542401
$2.39
42
NUT
7542424
$1.49
42
NUT HEX(10)
7542401
$2.39
42
NUT
7542424
$1.49
43
ROD, DRAG LINK
5333005
Unavailable
44
ROD,TIE,BLK.
5333006-067
Unavailable
45
ROD END,LH Substituted by 7060164
7060124
$48.56
45
ROD END RH Substituted by 7060165
7060125
$48.56
46
BOOT, TIE ROD Substituted by 5411652
5410639
$19.84
47
RETAINER, BOOT
5222283
Unavailable
48
BOLT(10)
7512572
$13.19
49
WASHER(10)
7555817
Unavailable
49
WASHER(10)
7555817
Unavailable
50
BUSHING
5630371
$5.03
50
BUSHING
5630371
$5.03
51
NUT LOCK(10)
7542403
$3.99
52
STRG.CTR.WELD,RH,BLK. (StarLite)
1823146-067
$42.68
52
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067 (Lite, Deluxe)
1823141-067
$49.21
52
STRG.CTR.WELD,RH,BLK. (StarLite)
1823146-067
$42.68
52
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067 (Lite, Deluxe)
1823141-067
$49.21
53
BUSHING,OPEN/CLOSE(10) (Deluxe)
7080399
$2.39
54
SCREW(10)
7515434
Unavailable
55
BUSHING, SPACER
5333009
$11.99
56
NUT, CASTLE(10)
7542523
Unavailable
57
PIN COTTER(10)
7661203
$1.49
58
NUT-5/16-18 NYLOK-Y
7542324
$1.49
59
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
60
POST,STEERING,BLK. (StarLite)
1823154-067
Unavailable
60
POST, STRG.,BLK. (Lite, Deluxe)
1823155-067
Unavailable
61
BOLT(10)
7512193
$2.39
62
RINGMOUNT,RECOIL,BLK.
5224442-067
$21.43
63
BLOCK,HANDLEBAR
5630187-067
$44.99
64
CLIP, STRG.BOOT(10)
7670073
Unavailable
65
SPEEDOMETER (Lite, Deluxe)
3280112
Unavailable
66
SPACER (Lite, Deluxe)
5410592
Unavailable
67
SPACER,SPEEDO.MTG. (Lite, Deluxe)
5810442
$10.99
68
PLATE,MTG,(SPEEDO) (Lite, Deluxe)
5211189
$12.99
69
WASHER, FLAT(10) (Lite, Deluxe)
7558201
$5.79
70
HAIRPIN, COTTER(10) (Lite, Deluxe)
7660701
$1.99
71
CABLE,SPEEDOMETER (Lite, Deluxe)
3280113
Unavailable
