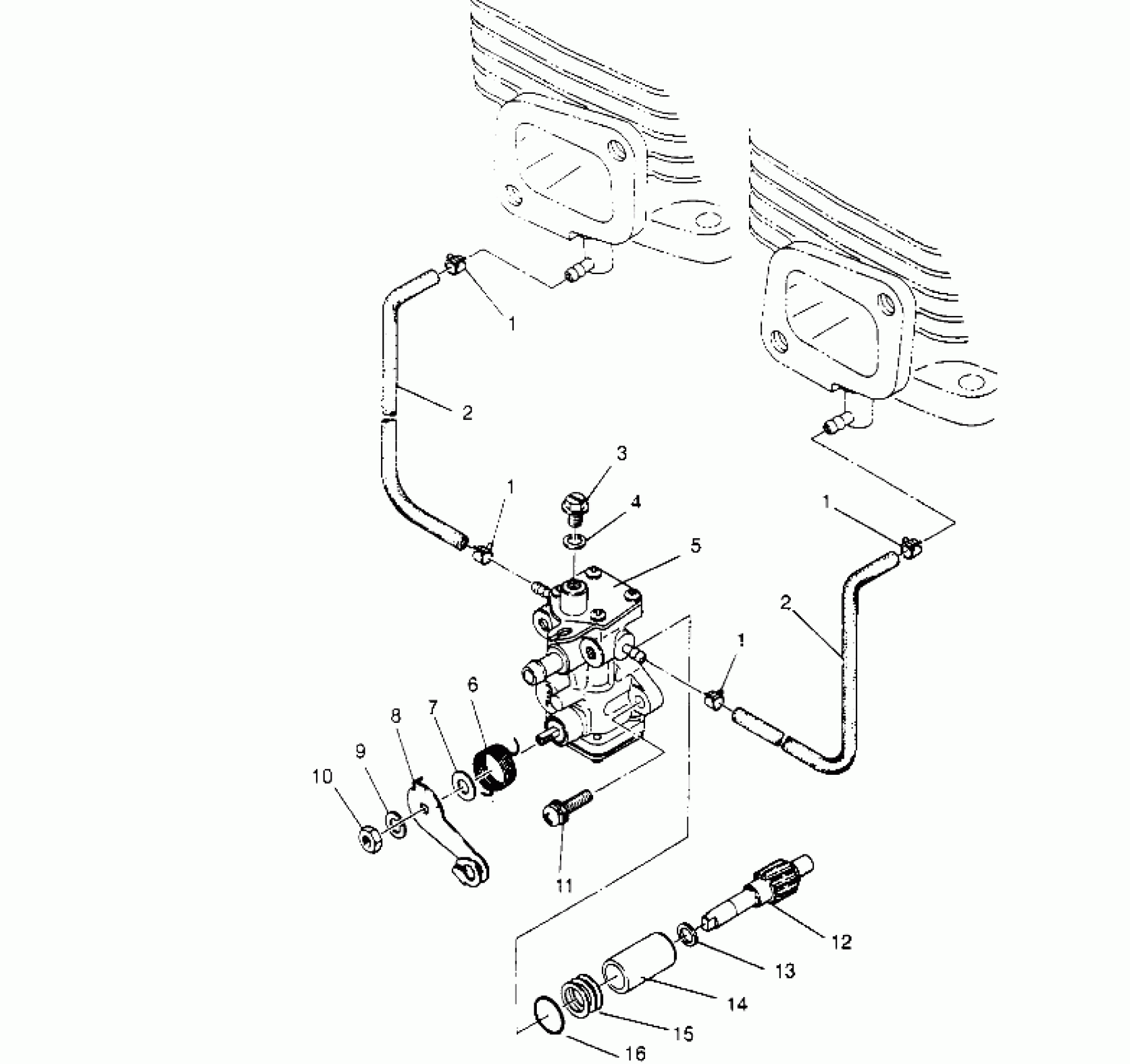

Polaris LITE - 0953433 OIL PUMP ASSEMBLY LITE 0953433 and LITE DELUXE 0953431 (4928902890D003) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE,VINYL

3084607

Unavailable

2

PIPE,VINYL

3084607

Unavailable

3

SCREW-AIR VENT

3083125

Unavailable

4

PACKING(10)

3083126

$4.03

5

PUMP, OIL (Incl. 3-10, 16)

3084255

Unavailable

6

SPRING-RETURN

3083123

Unavailable

7

COLLAR, CAMSHAFT(10)

3083445

$2.39

8

Lever, Control

3084256

$32.15

9

WASHER-SPRING(10)

3083121

$299.99

10

NUT(10)

3083120

$3.19

11

SCREW&WASHER,(10)

3083783

$2.39

12

Gear, Small

3083600

Unavailable

13

SPACER

3083130

$1.59

14

BUSHING,(OIL PUMP)

3083599

$22.39

15

SPACER #3

3083673

Unavailable

15

SPACER #2

3083672

Unavailable

15

SPACER #1

3083671

Unavailable

16

O RING

3083127

Unavailable
