NOSEPAN and CONSOLE ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUX (4928902890A008)

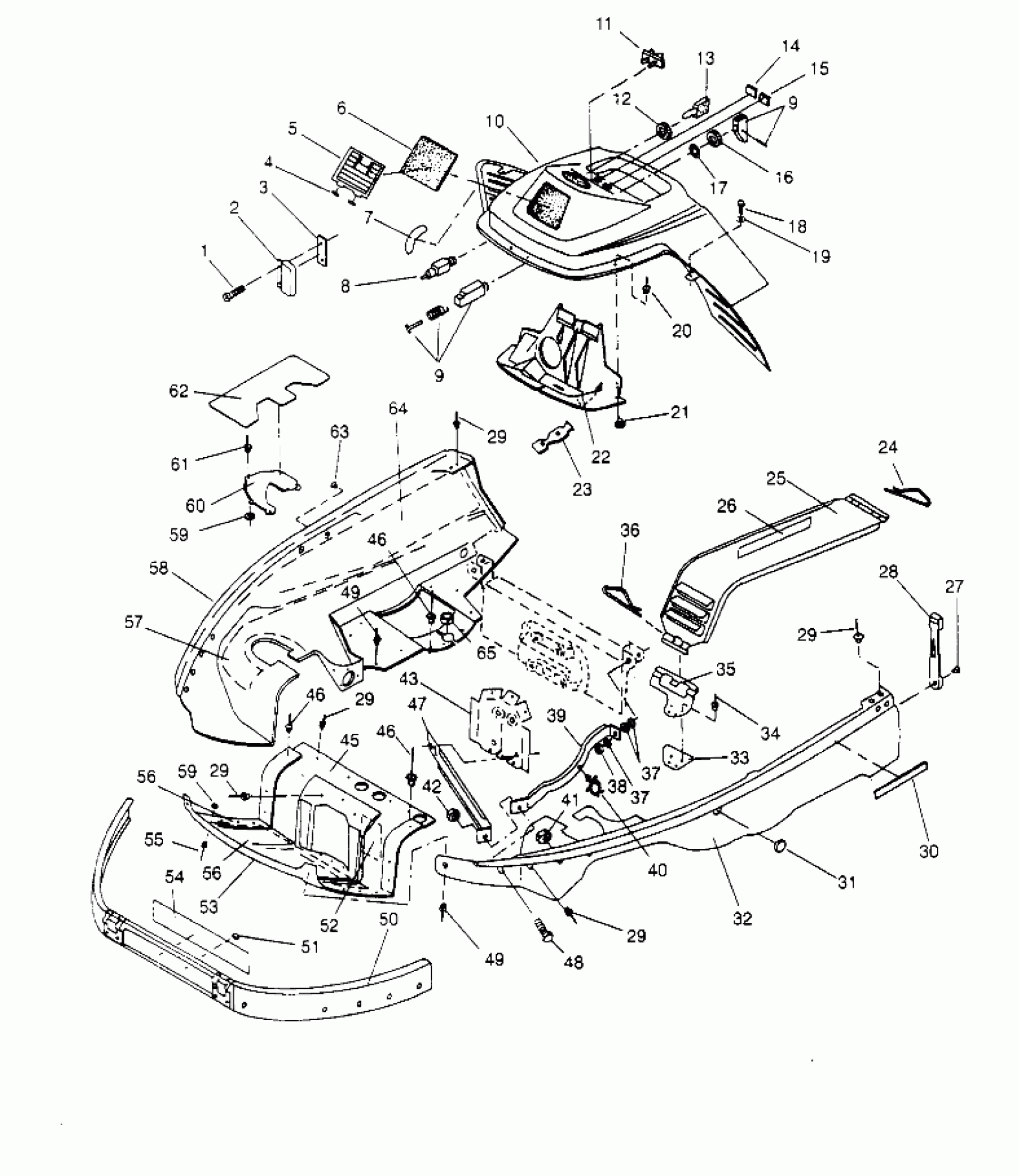

Polaris LITE - 0953433 NOSEPAN and CONSOLE ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUX (4928902890A008) Diagram
#
1
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
2
REGULATOR,14 VAC.LR-9
4060122
Unavailable
3
HEAT SINK
5210650
Unavailable
4
SEAL, O RING,(10)
5410374
$1.83
5
LOUVER, INTAKE
5431211-070
Unavailable
6
FOAM, INTAKE (Lite, Deluxe)
5810458
Unavailable
7
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
8
SWITCH IGNITION (Lite, StarLite)
4110038
$44.51
8
SWITCH-E/S (Deluxe)
4110061
Unavailable
9
KIT-CHOKE CONTROL
2200188
$24.27
9
CABLE, CHOKE(LITE) Substituted by 7080661 (Lite, Deluxe)
7080405
Unavailable
9
CABLE, CHOKE(STAR) (StarLite)
7080411
Unavailable
9
KIT-CHOKE CONTROL
2200188
$24.27
9
CABLE, CHOKE(LITE) Substituted by 7080661 (Lite, Deluxe)
7080405
Unavailable
9
CABLE, CHOKE(STAR) (StarLite)
7080411
Unavailable
10
CONSOLE (Lite, StarLite)
5431157-070
Unavailable
10
CONSOLE,BLK,(94DLX.) Substituted by 5431636-070 (Deluxe)
5431636
Unavailable
11
SWITCH,ROCKER Substituted by 4110195 (Lite, Deluxe)
4110116
Unavailable
12
NUT-IGNITION SWITCH
7542807
Unavailable
13
KEY, IGNITION
5410378
$13.75
14
INDICATOR'LOW-OIL'WARN. (Deluxe)
4040012
Unavailable
15
INDICATOR,'ACC'WARN. (Deluxe)
4040014
Unavailable
16
Nut
7080229
$19.99
17
WASHER-LOCK(10)
7571610
$3.99
18
SCREW(10)
7512253
$3.99
19
WASHER(10) Substituted by 7558301
7555776
Unavailable
20
RIVET,(50) (Lite, Deluxe)
7621336
$1.59
21
RIVET BURR(50) (Lite, Deluxe)
7555727
$1.49
22
CONSOLE, INNER (Lite, Deluxe)
5431214-070
$66.39
23
STRAP,TOOL COMPARTMENT (Lite)
5410425
Unavailable
24
PIN, FRONT
7080311
Unavailable
25
GUARD, CLUTCH Substituted by 5243761
5230124
Unavailable
26
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
27
RIVET,(50)
7621601
Unavailable
28
STRAP, HOOD
5410573
Unavailable
29
RIVET(50)
7621472
$1.49
29
RIVET(50)
7621472
$1.49
29
RIVET(50)
7621472
$1.49
29
RIVET(50)
7621472
$1.49
29
RIVET(50)
7621472
$1.49
30
REFLECTOR AMBER
2670071
Unavailable
31
PLUG,CATCH HOLE
5410582
$7.27
32
NOSEPAN,LH,BLK.
5431155-070
Unavailable
33
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
34
RIVET(50)
7621449
$3.19
35
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
36
PIN (Lite)
5224440
Unavailable
36
PIN, (STAR) (StarLite)
5224448
Unavailable
37
WASHER(10)
7555806
$1.49
37
WASHER(10)
7555806
$1.49
38
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
39
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
39
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
40
CLIP, PLASTIC(10)
4020139
$4.79
41
NUT, LOCK(10)
7542103
$5.59
42
NUT(10)
7542124
Unavailable
43
BRKT,SUPPORT,BLK.
5222356-067
$38.19
45
TAPE, FOIL
5810476
Unavailable
47
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
47
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
48
BOLT(10)
7512297
$5.59
49
RIVET, BLIND(50)
7621467
$1.49
49
RIVET, BLIND(50)
7621467
$1.49
50
HINGE,LOWER,BLK.
2635010-067
Unavailable
51
FASTENER-U TYPE CLIP
7670040
$3.99
52
TAPE, FOIL (Lite, Deluxe)
5810509
Unavailable
53
NOSEPAN, CTR. (Lite)
5431154-070
Unavailable
53
NOSEPAN,CTR,(STARLITE) (StarLite)
5431256
Unavailable
54
SCREEN
5211267-067
Unavailable
55
POP RIVET(50)
7621418
$1.49
56
TAPE, FOIL (Lite, Deluxe)
5810475
Unavailable
56
TAPE, FOIL (Lite, Deluxe)
5810475
Unavailable
57
TAPE, FOIL
5810477
Unavailable
58
NOSEPAN,RH,BLK.
5431156-070
Unavailable
59
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
59
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
60
COVER, RH SHOCK
5431253
Unavailable
60
COVER, LH SHOCK
5431252
Unavailable
61
RIVET(50)
7621457
$1.49
62
TAPE, FOIL,(PAN)
5810482
Unavailable
63
CLIP, DART (Nylon)
7670067
$3.99
64
TAPE, FOIL
5810478
Unavailable
65
SHIELD,NOSEPAN DRAIN HOLE
5811078
Unavailable
