HOOD ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 0953431 (4928902890A010)

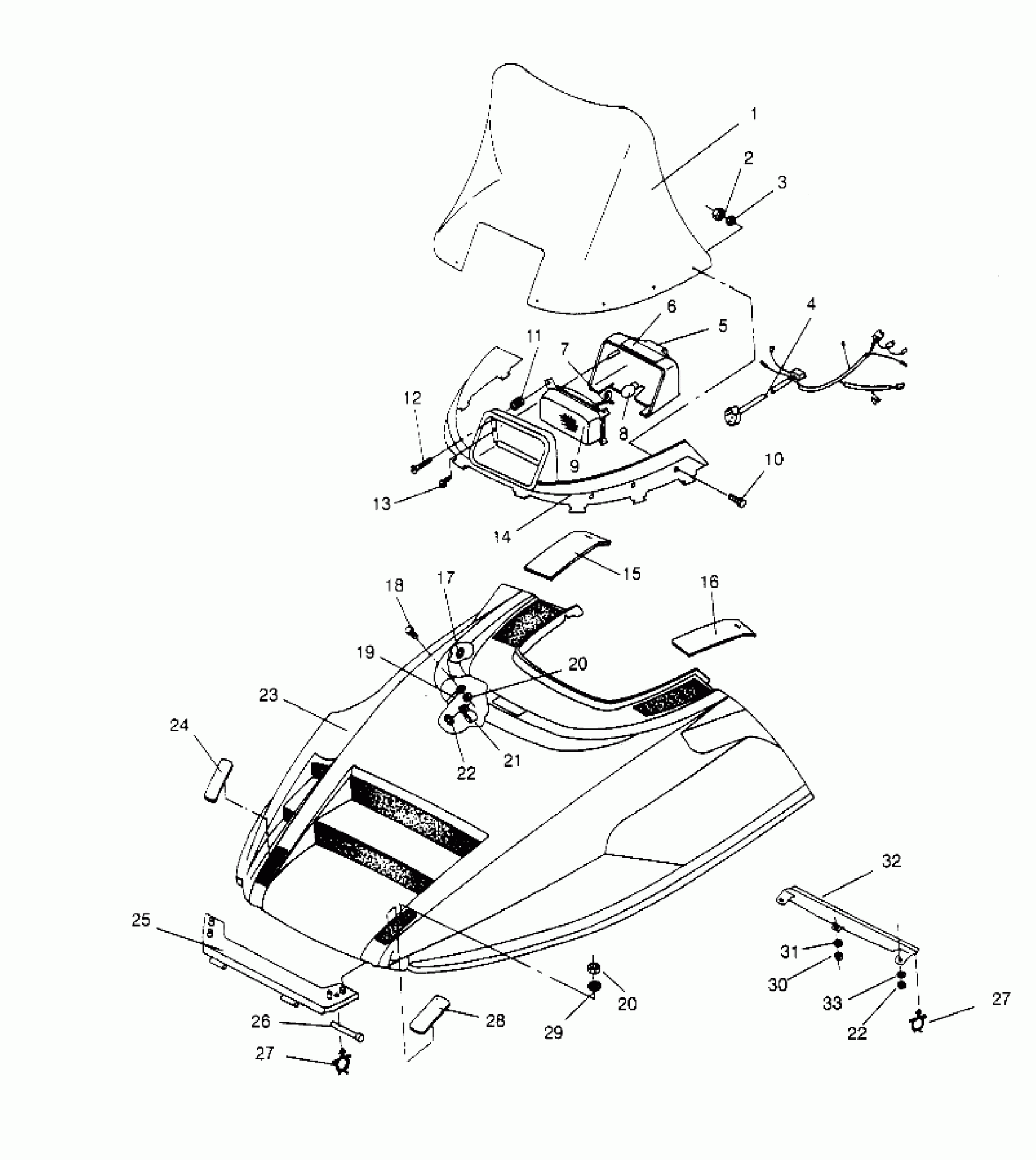

Polaris LITE - 0953433 HOOD ASSEMBLY LITE 0953433, STARLITE 0953427 and LITE DELUXE 0953431 (4928902890A010) Diagram
#
1
WINDSHIELD,LO,CLR,(LITE)
5431483
Unavailable
2
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
3
WASHER(10) Substituted by 7558201
7555799
Unavailable
4
HARNESS,HEADLIGHT (Lite, StarLite)
2460302
Unavailable
4
HARNESS,MAIN WIRE(LITE DLX'94) (Deluxe)
2460425
$54.78
5
COVER, HEADLAMP
5431209-070
Unavailable
6
DECAL,OPER.CAUTION [No Longer Available]
7072930
Unavailable
7
RETAINER,H/L BULB
4032063
Unavailable
8
BULB, H/L
4030028
$29.99
9
HEADLIGHT ASM.
4032038
Unavailable
10
SCREW(10)
7512023
Unavailable
11
SPRING-ADJ
4032002
Unavailable
12
SCREW, ADJ.(10)
4032003
Unavailable
13
SCREW(10)
7512054
$2.39
14
MOUNT,W/S,BLK.MET. (Lite)
5431208-177
Unavailable
14
MOUNT,W/S,BLUE(94LITE) Substituted by 5431208-128 (StarLite)
5431208-150
Unavailable
14
MOUNT,W/S,TEAL (Deluxe)
5431208-168
Unavailable
15
COVER ASM,LH,TOOL,BAH.BLUE (StarLite)
2652131-183
Unavailable
15
COVER ASM,LH,TOOL,BLK.MET. (Lite)
2652131-177
Unavailable
15
COVER ASM,LH,TOOL,TEAL (Deluxe)
2652131-168
Unavailable
16
COVER ASM,RH,TOOL,TEAL (Deluxe)
2652132-168
$27.22
16
COVER ASM,RH,TOOL,BLK.MET. (Lite)
2652132-177
Unavailable
16
COVER ASM,RH,TOOL,BAH.BLUE (StarLite)
2652132-183
Unavailable
17
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
18
BOLT(10)
7512261
$4.99
19
CABLE,HOOD RETAINER
7080414
Unavailable
20
NUT-LOCK(10)
7542122
$1.49
20
NUT-LOCK(10)
7542122
$1.49
21
CLAMP(10) Substituted by 7080573
7080347
Unavailable
22
PUSH-ON NUT(10) (StarLite)
7670017
$1.83
22
PUSH-ON NUT(10) (StarLite)
7670017
$1.83
23
HOOD,BLK.MET,(LITE) (Incl. Foam/Foil) (Lite)
2631571-177
Unavailable
23
HOOD ASM,S'LITE,BAH.BLUE (Incl. Foam/Foil) (StarLite)
2631572-183
$599.99
23
HOOD,TEAL,(LITE) (Incl., Foam/Foil) (Deluxe)
2631571-168
Unavailable
24
COVER,LH,HINGE,TEAL (Deluxe)
5431217-168
Unavailable
24
COVER,LH,HINGE,BLK.MET. (Lite)
5431217-177
Unavailable
24
COVER,LH,HINGE,BAH.BLUE (StarLite)
5431217-183
$15.87
25
HINGE, BLK.
2635009-067
Unavailable
26
RIVET(50)
7661626
Unavailable
27
CLIP, PLASTIC(10)
4020139
$4.79
27
CLIP, PLASTIC(10)
4020139
$4.79
28
COVER,RH,HINGE,BAH.BLUE [No Longer Available] (StarLite)
5431218-183
$18.23
28
COVER,RH,HINGE,BLK.MET (Lite)
5431218-177
Unavailable
28
COVER,RH,HINGE,TEAL (Deluxe)
5431218-168
$19.84
29
WASHER,WROUGHT(10)
7558302
$1.59
30
NUT, PUSH-ON(10)
7670068
$2.39
31
WASHER, FLAT(10)
7558201
$5.79
32
DEFLECTOR, HOOD
5222477
Unavailable
33
WASHER(10) (StarLite)
7555806
$1.49
