FRONT SUSPENSION and SKI LITE 0953433, STARLITE 0953427 and LITE DELUXE 09 (4928902890B002)

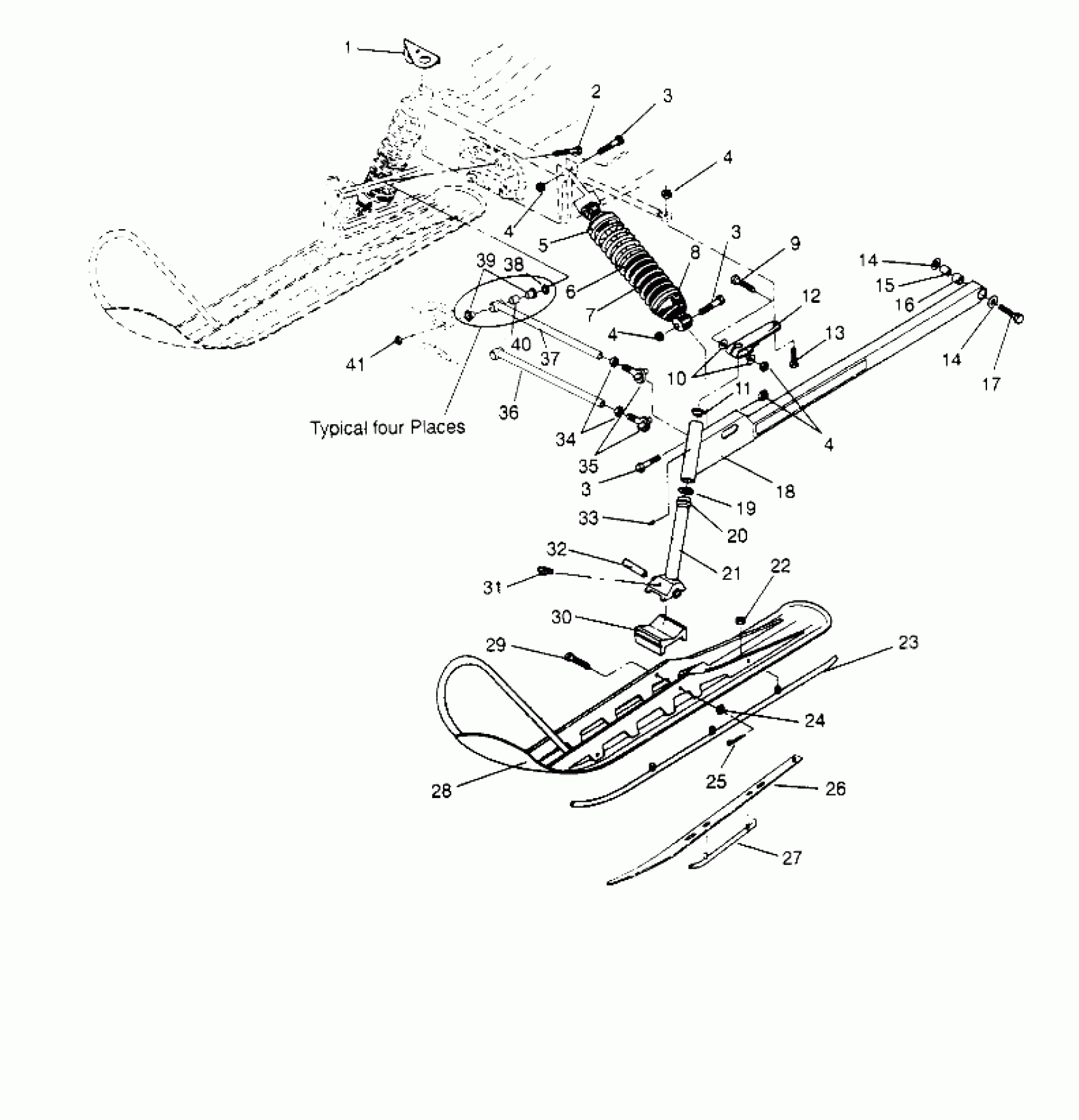

Polaris LITE - 0953433 FRONT SUSPENSION and SKI LITE 0953433, STARLITE 0953427 and LITE DELUXE 09 (4928902890B002) Diagram
#
1
BRKT,MUFF.SUPPORT (StarLite Only)
5222468-067
Unavailable
2
BOLT(10)
7515417
$4.79
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK. (Lite, StarLite)
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041284
Unavailable
9
BOLT(10) Substituted by 7517583
7515491
Unavailable
10
WASHER(10) Substituted by 7555832
7555851
Unavailable
11
BUSHING-FLANGE
3573909
$2.39
12
Arm, Steering
5220326-067
Unavailable
13
BOLT Substituted by 7512404
7515490
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM,LH TRLG,BLK.
1823136-067
Unavailable
18
ARM,RH TRLG,BLK.
1823137-067
$266.49
19
WASHER SPECIAL(10)
7556509
$1.59
20
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
21
SPINDLE, BLK.
6230073-067
Unavailable
22
NUT-5/16-18 NYLOK-Y
7542324
$1.49
23
SKAG,SHORT(20)
1820267
$23.99
24
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
25
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
26
PLATE, SKAG (Deluxe)
1011829-067
$54.99
27
SKAG Substituted by 1820318-067 (Deluxe)
1820318
$49.99
28
SKI, BLK,(LITE) Substituted by 1820333-067
1820333
Unavailable
29
BOLT(10)
7515462
$8.79
30
Stop, Rubber
5521231
Unavailable
31
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
32
BUSHING,PIVOT,(10)
5010158
$19.99
33
ZERK,FITTING,THREADED(10)
7080433
$1.49
34
NUT JAM(10)
7542520
$2.39
35
ROD END,RH,WIDEBORE Substituted by 7061069
7060157
Unavailable
36
ROD,RAD,LOW.BLK.
1822128-067
Unavailable
37
ROD,RAD,UP.,BLK.
1822129-067
Unavailable
38
WASHER(10)
7555797
$3.99
39
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
40
Bushing
5010252
$1.59
41
NUT LOCK(10)
7542403
$3.99
