ENGINE MOUNTING STARLITE 0953427 (4928902890C002)

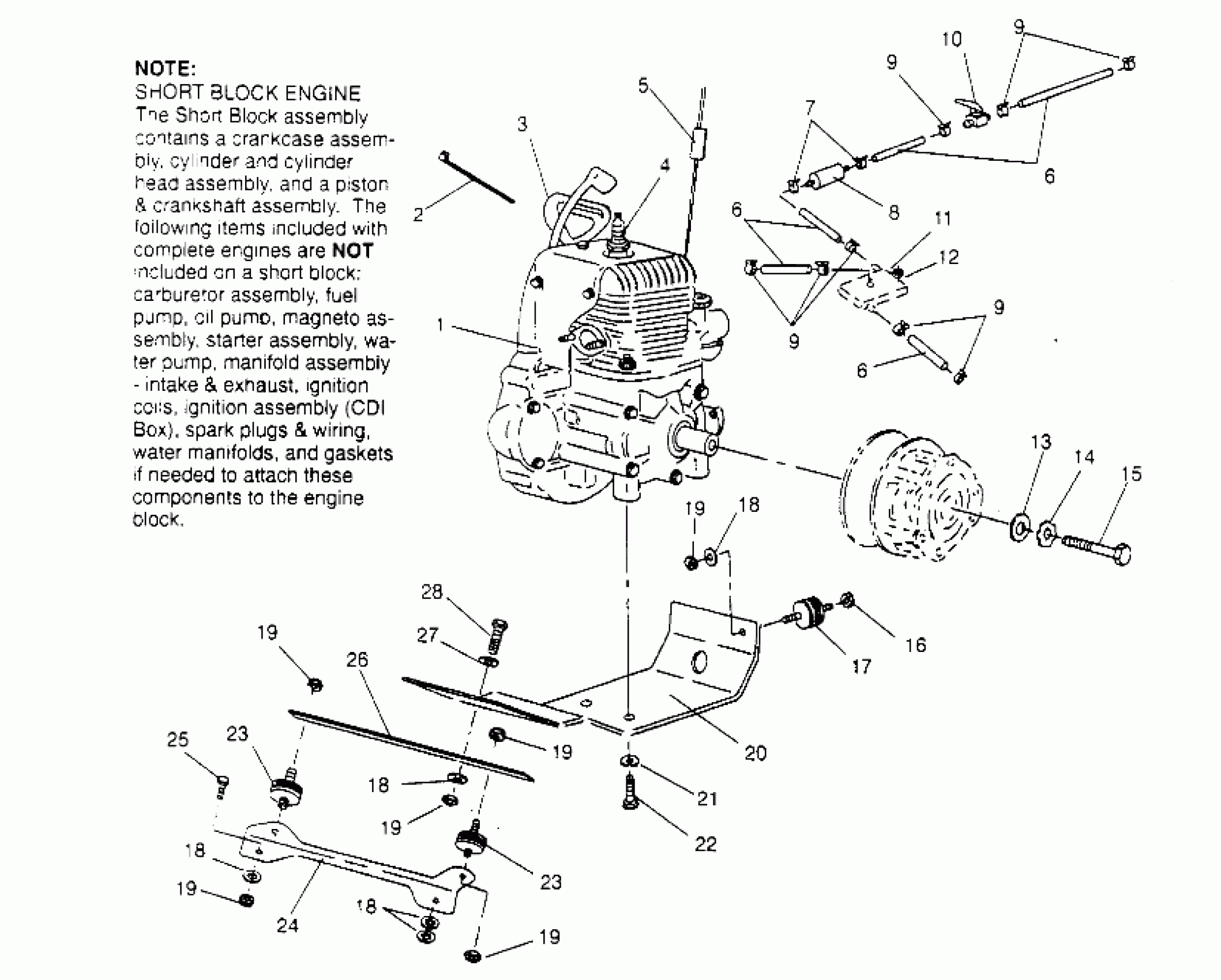

Polaris LITE - 0953433 ENGINE MOUNTING STARLITE 0953427 (4928902890C002) Diagram
#
Description
Price
1
ENG.(S.B.)EC25PS-07 [No Longer Available]
3084619
Unavailable
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
3
HANDLE-RECOIL
5430520
Unavailable
4
SPARKPLUG (10)
3070156
$3.99
5
CABLE, THROTTLE
7080556
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
7
CLAMP, HOSE
7080490
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
HOSE CLAMP, RED
7080003
$1.49
9
HOSE CLAMP, RED
7080003
$1.49
9
HOSE CLAMP, RED
7080003
$1.49
9
HOSE CLAMP, RED
7080003
$1.49
10
VALVE,FUEL SHUT-OFF
7052039
Unavailable
11
Asm., Fuel Pump (See Pg. D8, Ref. 2)
-------
Unavailable
12
NUT-LOCK(10)
7542122
$1.49
13
WASHER,CLUTCH RETAINER
5010278
Unavailable
14
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
15
BOLT(10)
7512566
$30.79
16
NUT LOCK(10)
7542411
$3.19
17
MOUNT-MTR.
3110020
Unavailable
18
WASHER(10) Substituted by 7555806
7555720
$0.79
18
WASHER(10) Substituted by 7555806
7555720
$0.79
18
WASHER(10) Substituted by 7555806
7555720
$0.79
18
WASHER(10) Substituted by 7555806
7555720
$0.79
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
19
NUT LOCK(10)
7542403
$3.99
20
PLATE,ENG.MT,BLK.
5222539-067
$59.60
21
WASHER LOCK(10)
7553101
$3.99
22
BOLT(10)
7512539
$3.99
23
MOUNT, MOTOR
3110028
Unavailable
23
MOUNT, MOTOR
3110028
Unavailable
24
CHANNEL, ENG.MT.
5222540-067
Unavailable
25
BOLT(10)
7512457
$3.99
26
STRAP,ENG.MT,BLK.
5211266-067
$17.30
27
WASHER-LOCK(10)
7571611
$3.19
28
BOLT(10)
7512405
$3.99
