STARTING MOTOR ASSEMBLY LITE DELUXE 0943431 (4924992499047A)

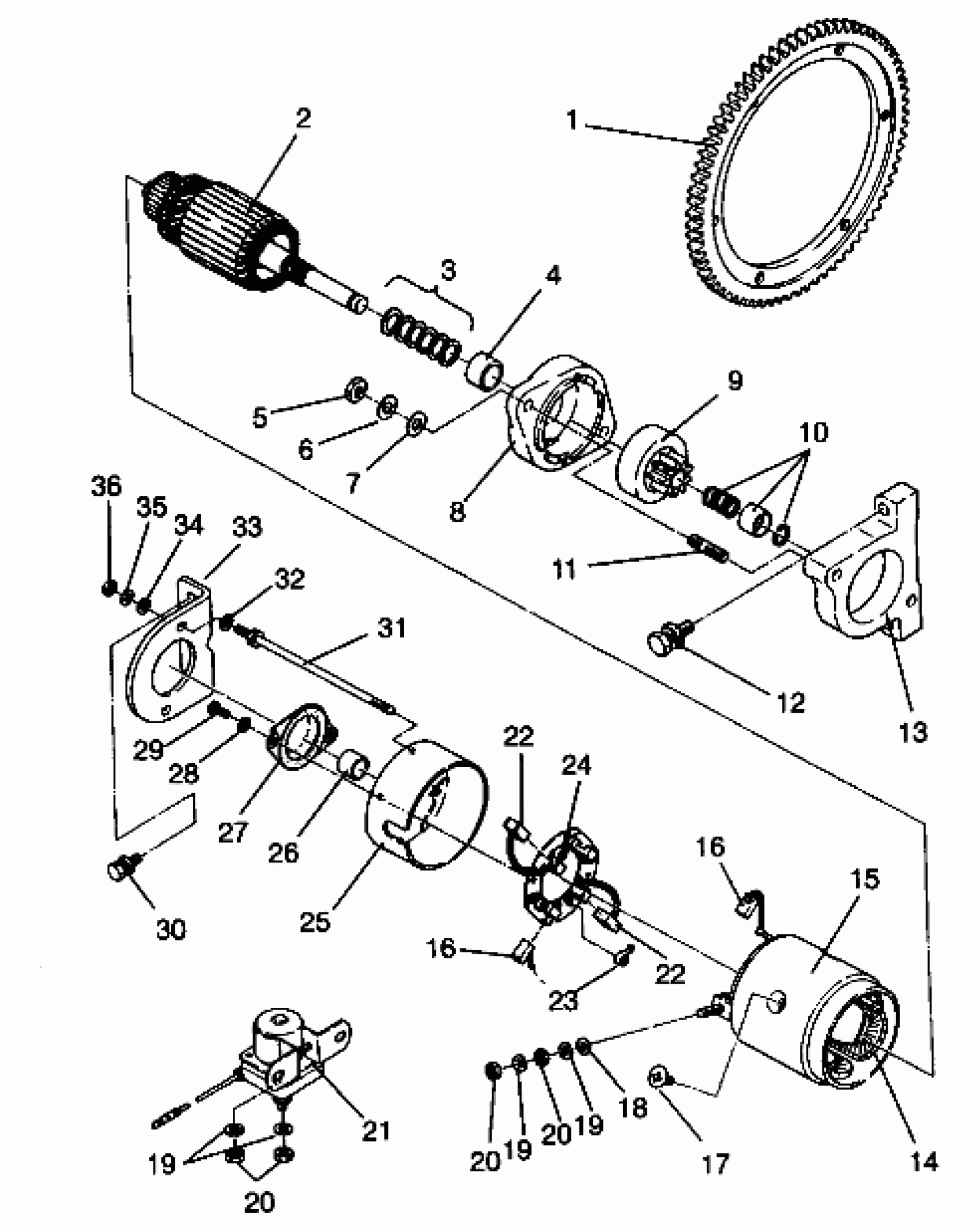

Polaris LITE - 0943433 STARTING MOTOR ASSEMBLY LITE DELUXE 0943431 (4924992499047A) Diagram
#
1
GEAR, RING
3083075
Unavailable
2
ARMATURE ASM.
3084115
Unavailable
3
KIT-WASHER
3083191
Unavailable
4
BUSHING,METAL,FRONT
3083206
Unavailable
5
NUT
3081086
Unavailable
6
WASHER LOCK ,(10)
3080530
$3.19
7
WASHER(10)
3080142
$3.99
8
COVER ASM-FRONT. (Incl. 4)
3083205
Unavailable
9
PINION ASM
3083201
Unavailable
10
STOPPER SET,(PINION)
3084116
Unavailable
11
STUD
3083210
Unavailable
12
BOLT&WASHER
3083945
Unavailable
13
BRACKET (Incl. 11)
3083535
Unavailable
14
COIL-FIELD (Incl. 16,17)
3083192
Unavailable
15
MOTOR-STARTER (Incl. 2-4, 8-10, 14-20, 22-29,31)
3083189
Unavailable
16
BRUSH, (+) (+)
3083194
Unavailable
16
BRUSH, (+) (+)
3083194
Unavailable
17
SCREW-POLE CORE SET
3083193
Unavailable
18
WASHER(10)
3080078
Unavailable
19
WASHER SPRING(10)
3080077
$2.39
19
WASHER SPRING(10)
3080077
$2.39
19
WASHER SPRING(10)
3080077
$2.39
20
NUT(10)
3082939
Unavailable
20
NUT(10)
3082939
Unavailable
20
NUT(10)
3082939
Unavailable
21
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 19,20)
3083211
Unavailable
22
BRUSH, (-) (-)
3083196
Unavailable
22
BRUSH, (-) (-)
3083196
Unavailable
23
SPRING-BRUSH
3083197
Unavailable
24
HOLDER ASM,BRUSH (Incl. 22,23)
3083195
Unavailable
25
COVER ASM-REAR (Incl. 26)
3083198
Unavailable
26
COVER-REAR METAL
3083199
Unavailable
27
COVER-DUST
3083204
Unavailable
28
WASHER-SPRING(10)
3083208
Unavailable
29
SCREW
3083207
Unavailable
30
BOLT&WASHER(10)
3083946
Unavailable
31
BOLT-THROUGH
3083203
Unavailable
32
WASHER
3083357
$2.39
33
BRACKET #1
3083213
$22.23
34
WASHER Substituted by 3083774
3083134
Unavailable
35
WASHER SPRING(10)
3083133
Unavailable
36
NUT(10)
3083042
Unavailable
