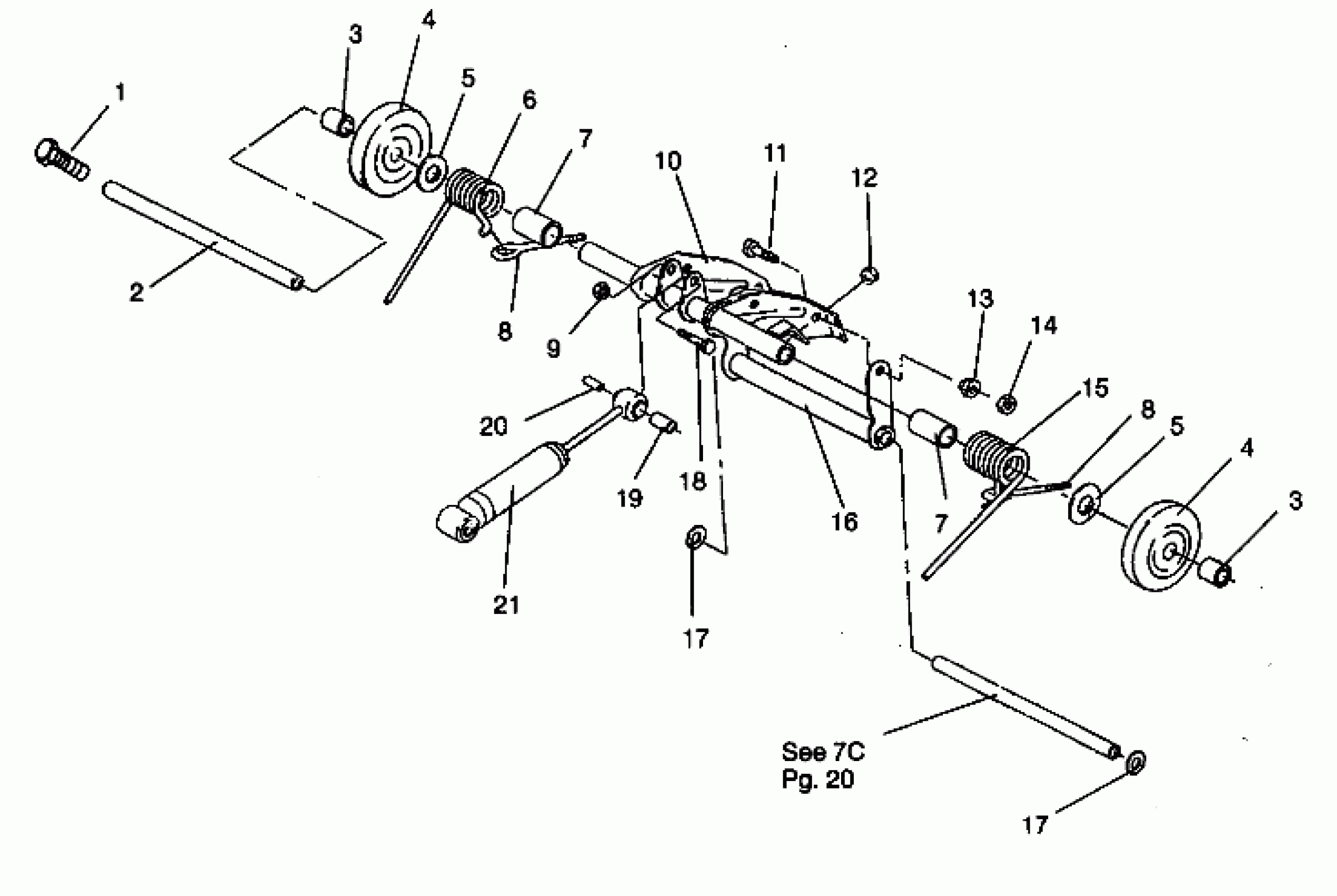

Polaris LITE - 0943433 REAR TORQUE ARM ASSEMBLY LITE 0943433,STARLITE 0943427 and LITE DELUXE 094 (4924992499022A) Diagram

#

Description
Price

1

BOLT(10)

7515432

Unavailable

2

SHAFT Substituted by 5020907

5020611

$56.65

3

SPACER-CARR.WHEEL

5332730

$14.99

3

SPACER-CARR.WHEEL

5332730

$14.99

4

WHEEL-TRACK CARRIER

1543017

$48.56

4

WHEEL-TRACK CARRIER

1543017

$48.56

5

WASHER(10)

7555726

$1.59

5

WASHER(10)

7555726

$1.59

6

SPRING,RH,BLK.

7041120-067

Unavailable

7

TUBE-SPRING

5521089

Unavailable

7

TUBE-SPRING

5521089

Unavailable

8

BOLT-EYE, SPRING ADJ.(10)

7080221

$9.59

8

BOLT-EYE, SPRING ADJ.(10)

7080221

$9.59

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

ARM,R.TORQUE,BLK.

1540712-067

Unavailable

11

BOLT(10)

7515317

$4.79

12

NUT FLEX LOC,(10)

7542402

$6.39

13

NUT, SHOULDER(10)

7542326

$19.99

14

NUT LOCK(10)

7542302

$3.99

15

SPRING,LH,BLK.

7041119-067

Unavailable

16

ARM,REAR PIVOT

1540737-067

Unavailable

17

MACHINERY BUSHING(10)

7556301

$3.19

17

MACHINERY BUSHING(10)

7556301

$3.19

18

BOLT(10)

7512329

$3.99

19

SPACER

5332631

$6.39

20

BUSHING

5430537

$3.99

21

SHOCK Substituted by 7041737

7041154

Unavailable
