HOOD ASSEMBLY LITE 0943433,STARLITE 0943427 and LITE DELUXE 0943431 (4924992499005A)

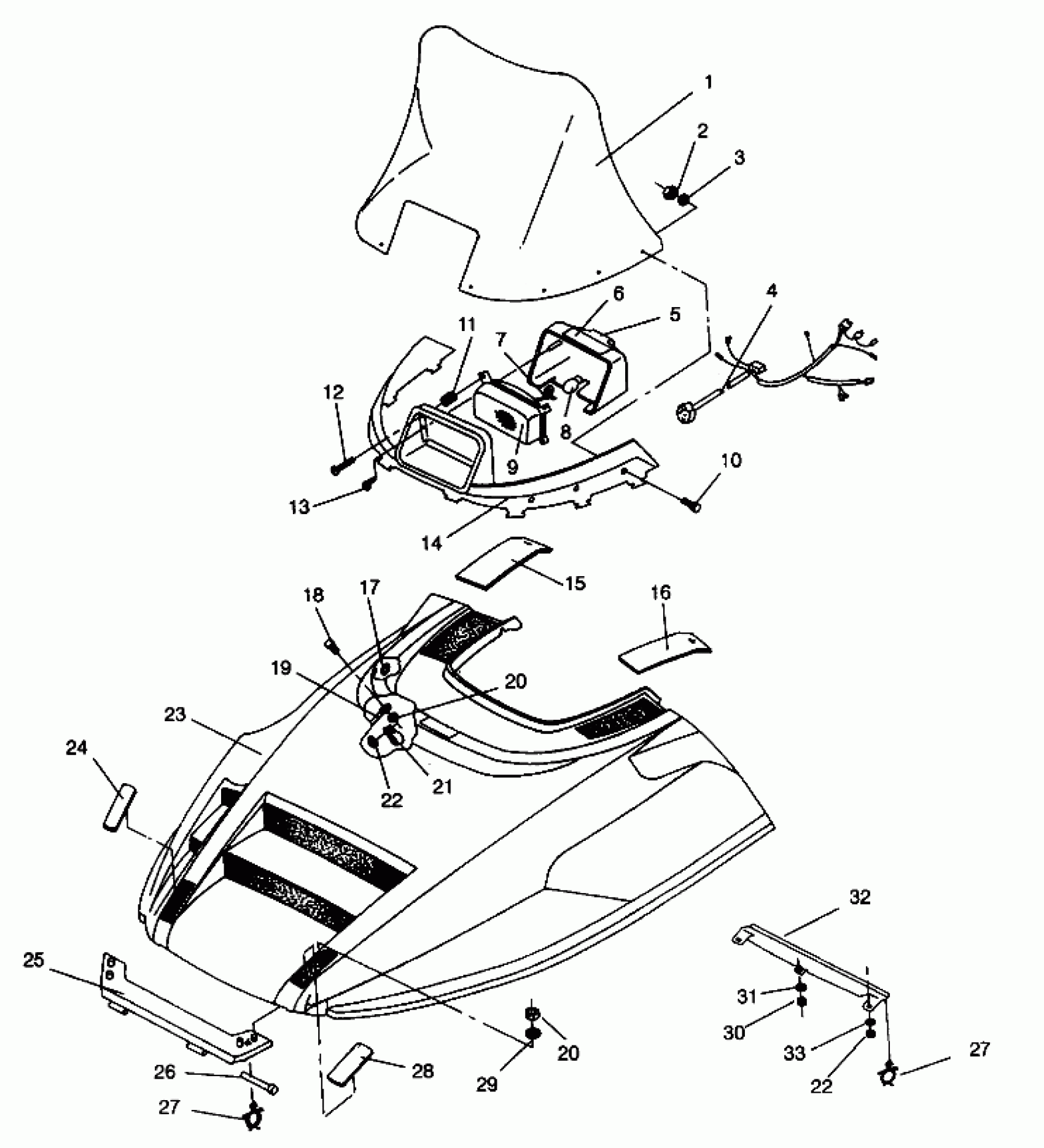

Polaris LITE - 0943433 HOOD ASSEMBLY LITE 0943433,STARLITE 0943427 and LITE DELUXE 0943431 (4924992499005A) Diagram
#
1
WINDSHIELD,LO,CLR,(LITE)
5431483
Unavailable
2
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
2
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
4
HARNESS,HEADLIGHT (Lite, StarLite)
2460302
Unavailable
4
HARNESS,MAIN WIRE(LITE DLX'94) (Deluxe)
2460425
$54.78
5
COVER, HEADLAMP
5431209-070
Unavailable
6
DECAL,OPER.CAUTION [No Longer Available]
7072930
Unavailable
7
RETAINER,H/L BULB
4032063
Unavailable
8
BULB, H/L
4030028
$29.99
9
HEADLIGHT ASM.
4032038
Unavailable
10
SCREW(10)
7512023
Unavailable
11
SPRING-ADJ
4032002
Unavailable
12
SCREW, ADJ.(10)
4032003
Unavailable
13
SCREW(10)
7512054
$2.39
14
MOUNT,W/S,BLK. (Lite)
5431208-070
Unavailable
14
MOUNT,W/S,BLUE(94LITE) Substituted by 5431208-128 (StarLite)
5431208-150
Unavailable
14
MOUNT,W/S,RED(94LITE DLX) (Deluxe)
5431208-136
Unavailable
15
COVER ASM,LH,TOOL,RED (Deluxe)
2652131-136
$23.81
15
COVER ASM,LH,TOOL,BLK. (Lite)
2652131-070
Unavailable
15
COVER ASM,LH,TOOL,BLUE (StarLite)
2652131-128
Unavailable
16
COVER ASM,RH,TOOL,RED (Deluxe)
2652132-136
$30.32
16
COVER ASM,RH,TOOL,BLK. (Lite)
2652132-070
Unavailable
16
COVER ASM,RH,TOOL,BLUE (StarLite)
2652132-128
Unavailable
17
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
18
BOLT(10)
7512261
$4.99
19
CABLE,HOOD RETAINER
7080414
Unavailable
20
NUT-LOCK(10)
7542122
$1.49
20
NUT-LOCK(10)
7542122
$1.49
21
CLAMP(10) Substituted by 7080573
7080347
Unavailable
22
PUSH-ON NUT(10) (StarLite)
7670017
$1.83
22
PUSH-ON NUT(10) (StarLite)
7670017
$1.83
23
HOOD,RED,LITE (Incl. Foam/Foil)(Deluxe)
2631571-136
Unavailable
23
HOOD,BLK,(LITE) (Incl. Foam/Foil)(Lite)
2631571-070
Unavailable
23
HOOD,BLUE,S'LITE> (Incl. Foam/Foil)(StarLite)
2631572-128
Unavailable
24
COVER,LH,HINGE,RED (Deluxe)
5431217-136
Unavailable
24
COVER,LH,HINGE,BLUE [No Longer Available] (StarLite)
5431217-128
Unavailable
24
COVER,LH,HINGE,BLK. (Lite)
5431217-070
Unavailable
25
HINGE, BLK.
2635009-067
Unavailable
26
RIVET(50)
7661626
Unavailable
27
CLIP, PLASTIC(10)
4020139
$4.79
27
CLIP, PLASTIC(10)
4020139
$4.79
28
COVER,RH,HINGE,BLUE (StarLite)
5431218-128
$18.23
28
COVER,RH,HINGE,RED (Deluxe)
5431218-136
Unavailable
28
COVER,RH,HINGE,BLK. (Lite)
5431218-070
$19.84
29
WASHER,WROUGHT(10)
7558302
$1.59
30
NUT, PUSH-ON(10)
7670068
$2.39
31
WASHER, FLAT(10)
7558201
$5.79
32
DEFLECTOR, HOOD
5222477
Unavailable
33
WASHER(10) (StarLite)
7555806
$1.49
