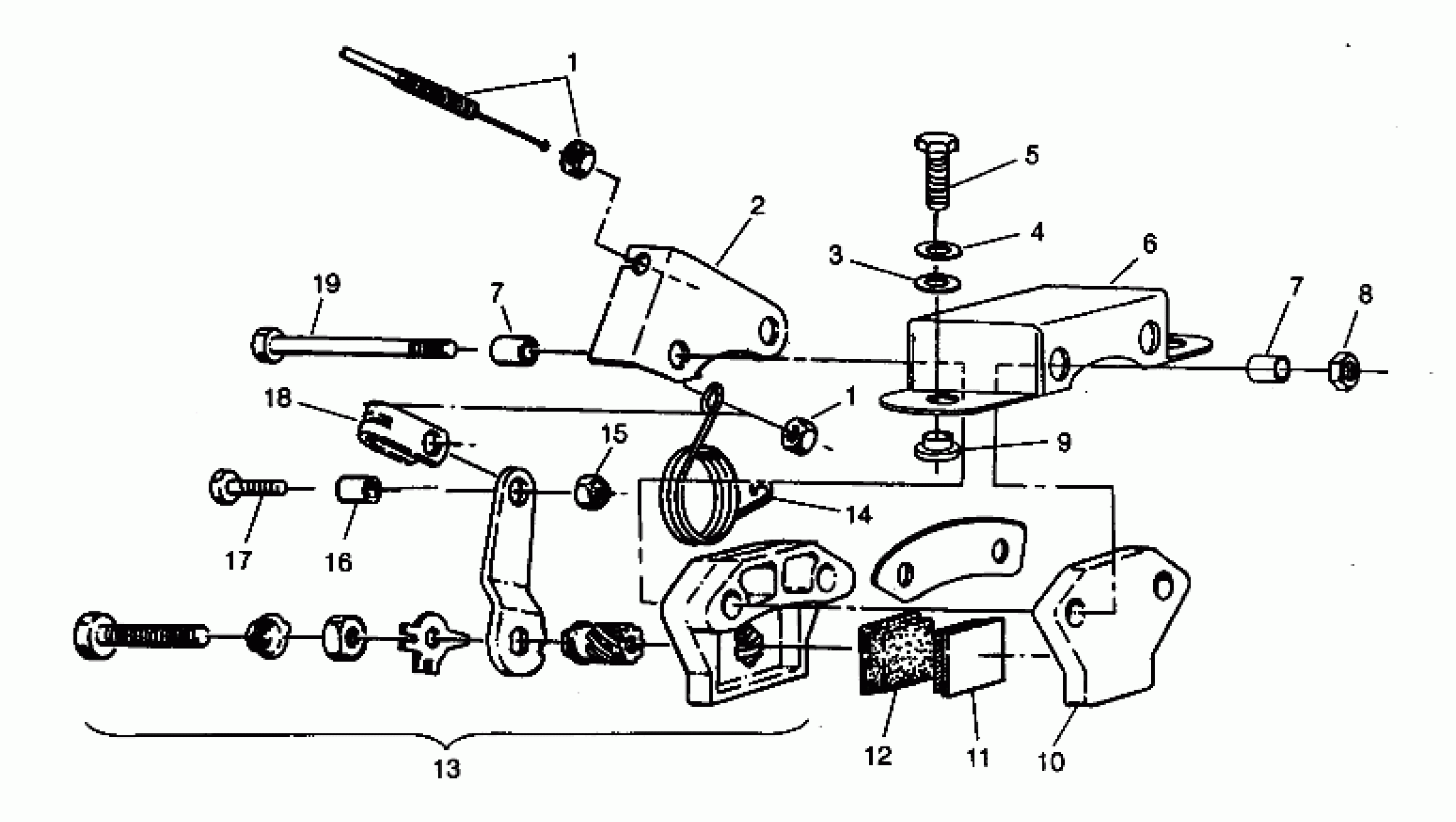

Polaris LITE - 0943433 BRAKE ASSEMBLY LITE 0943433,STARLITE 0943427 and LITE DELUXE 0943431 (4924992499016A) Diagram

#

Description
Price

1

CABLE, BRAKE

7080427

Unavailable

1

CABLE, BRAKE

7080427

Unavailable

2

BRKT,BRAKE,BLK.

5220211-067

$4.10

3

WASHER(10)

7555806

$1.49

4

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

5

BOLT(10)

7515440

$3.99

6

BRKT,BRAKE,TOP MT.

5240240-067

$19.83

7

BUSHING

1930559

Unavailable

7

BUSHING

1930559

Unavailable

8

NUT(10)

7542425

$1.75

9

SPACER,ALIGNMENT

5020695

$2.87

10

CALIPER

5630305

$36.41

11

PUCK

1930592

Unavailable

12

PAD, BRAKE,(THICK)

1930588

Unavailable

13

CALIPER

1930593

Unavailable

14

SPRING, BRAKE RETURN

7041147

Unavailable

15

NUT-LOCK(10)

7542122

$1.49

16

BUSHING

5332795

$5.56

17

BOLT(10)

7512240

$3.99

18

PIN, CLEVIS

7080316

Unavailable

19

BOLT(10)

7515478

$11.43
