TUNNEL and SEAT ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/093 (4922972297001A)

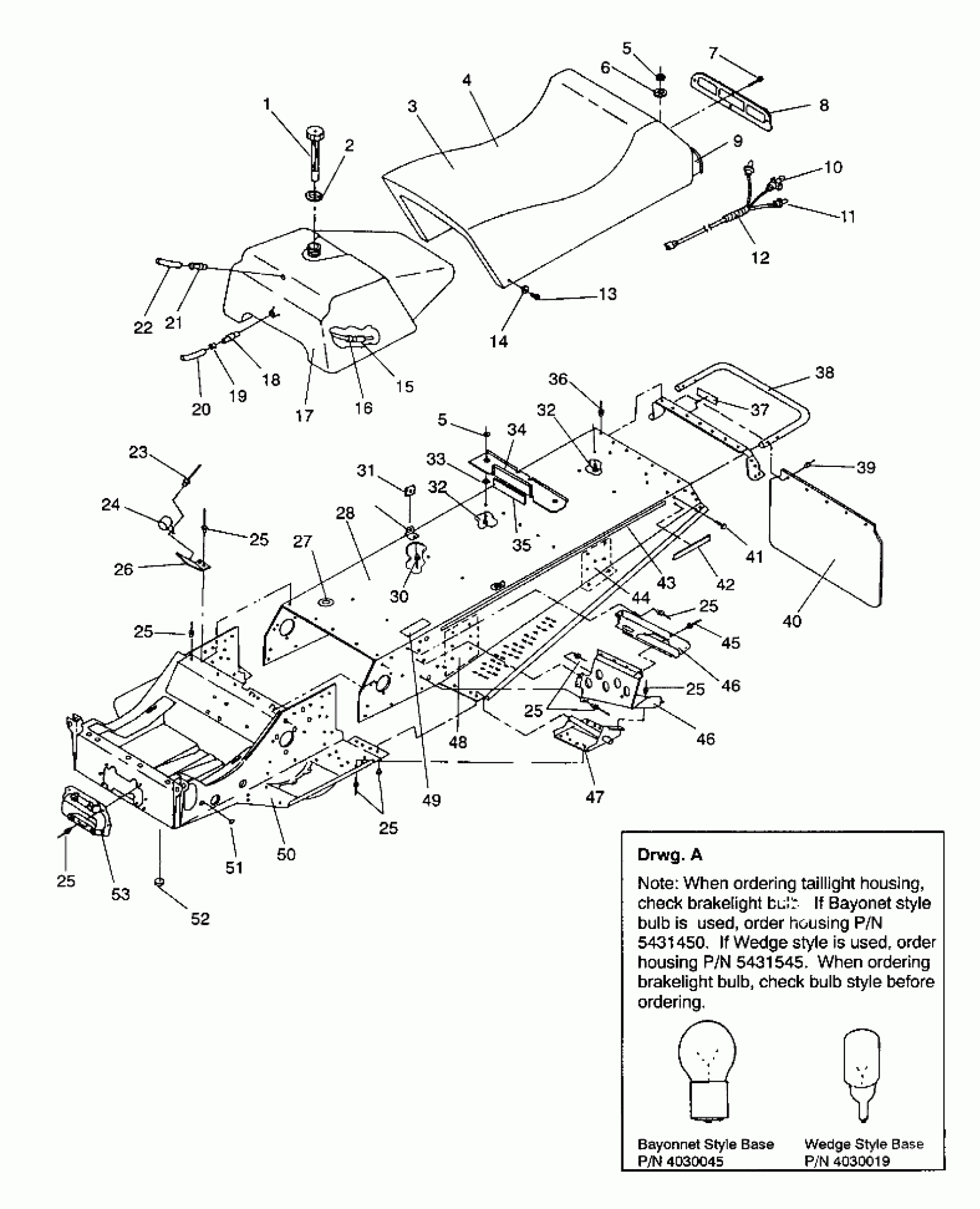

Polaris LITE - 0933433 TUNNEL and SEAT ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/093 (4922972297001A) Diagram
#
1
CAP, GAS,W/GAUGE Substituted by 2511245
2511213
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM.
2681472
Unavailable
4
COVER, SEAT
2681473
Unavailable
5
NUT-LOCK(10)
7542122
$1.49
5
NUT-LOCK(10)
7542122
$1.49
6
WASHER,WROUGHT(10)
7558302
$1.59
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Unavailable
9
HOUSING, TAILLIGHT (See Drwg. A)
5431450
$19.83
10
Bulb, Brakelight
4030045
Unavailable
11
BULB TAILLIGHT(10)
4030015
$4.03
12
HARNESS,TAILLIGHT
2460370
$31.35
13
SCREW(10)
7515111
$7.19
14
WASHER(10)
7555798
$1.49
15
FUELPICKUP,W/STRAINER
7052037
$12.94
16
RING, COMPRESSION(10)
7080402
$1.60
17
TANK, FUEL Substituted by 2511214
5431353
Unavailable
18
FITTING, OUTLET
7052056
$6.23
19
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
21
FITTING,(10)
7052077
$6.39
22
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
23
RIVET,(50) (StarLite)
7621477
$1.19
24
GUIDE, RECOIL (StarLite)
5431385
$10.51
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
26
BRKT,ROPE GUIDE,BLK. (StarLite)
5222687-067
$59.99
27
GROMMET RUBBER
5410021
Unavailable
28
TUNNEL ASM,(LITE) (Incl. 33, 44 & 48)
1011881
$420.41
30
RIVET(50)
7621470
$3.17
31
NUT, RETAINER(10) Substituted by 7670060
7670059
$3.85
32
BOLT(10)
7512193
$2.39
32
BOLT(10)
7512193
$2.39
33
SPEED NUT(10)
7670021
$6.99
34
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
35
CUSHION,TANK H.D.
5420126
Unavailable
36
RIVET Substituted by 7661829
7661828
Unavailable
37
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
38
BUMPER, REAR
5224480-067
Unavailable
39
POP RIVET(50)
7621418
$1.49
40
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
41
SCREW(10)
7512252
Unavailable
42
REFLECTOR RED
2670070
$9.91
43
DECAL,TUNNEL,(STARLITE) [No Longer Available] (StarLite)
7073547
Unavailable
43
DECAL,(42''),TUNNEL [No Longer Available] (Lite & Dlx)
7073556
Unavailable
44
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
44
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
45
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
46
FOOTREST ASM,LH
1011830
$140.79
46
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
46
FOOTREST ASM,LH
1011830
$140.79
46
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
47
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
47
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
48
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
49
Pad, Air Box
5810502
Unavailable
50
BULKHEAD,(LITE GT) (Lite & Deluxe)
1011815-067
Unavailable
50
BULKHEAD, (STARLITE) (StarLite)
1011885-067
Unavailable
51
PLUG, HOLE(10)
7080416
$5.65
52
PLUG-HOLE
7080398
$4.84
53
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
