STEERING ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/0933431 (4922972297011A)

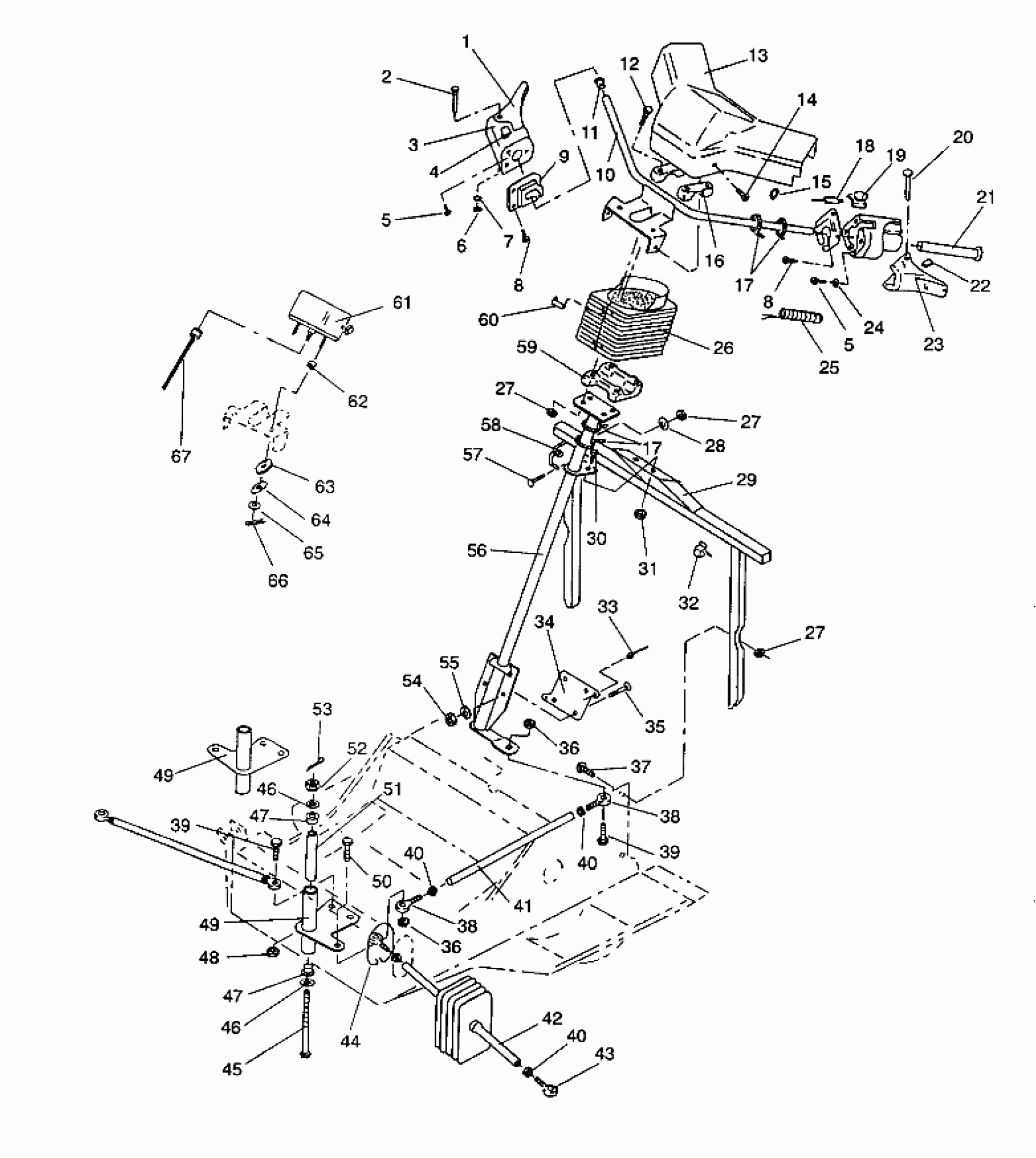

Polaris LITE - 0933433 STEERING ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/0933431 (4922972297011A) Diagram
#
1
LEVER-THROTTLE
5430601
Unavailable
2
PIN-RETAINING .186X1.780-AL
7661624
$12.79
3
BLOCK,THROTTLE/BRAKE Substituted by 5431592
5431265
$49.99
4
SWITCH,AUX.SHUT-OFF
4110106
$94.99
5
SCREW-SEMS(10)
7511848
$3.99
5
SCREW-SEMS(10)
7511848
$3.99
6
RING-RETAINING EXTERNAL
7710401
$3.99
7
WASHER(10)
7555730
$3.99
8
SCREW(10)
7512465
$3.99
9
BLOCK-ADAPTER
5430604
$13.75
10
HANDLEBAR,ADJ,BLK.
1843036-067
$43.75
11
CAPLUG(10) (Deluxe)
7080467
Unavailable
12
BOLT,(10)
7512265
$3.99
13
COVER,H'BAR W/SPEEDO
5431232-070
Unavailable
13
COVER,H'BAR(W/O SPEEDO)
5431233-070
Unavailable
14
SCREW,(10)
7512024
$4.79
15
O RING
5410591
Unavailable
16
BLOCK,H'BAR,UPPER,BLK.
5630382-067
Unavailable
17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
18
Switch, Brake Light
4110105
Unavailable
19
Switch, Dimmer
4110104
Unavailable
20
RIVET,(50)
7661617
$4.03
21
GRIP,H'BAR,BLACK Substituted by 5432634 (StarLite)
5410272-067
$24.27
21
GRIP,H'BAR,RED Substituted by 5410272-067 (Lite & Deluxe)
5410272-093
$24.27
22
CLIP-SPEED.(10)
7670044
$4.79
23
LEVER-BRAKE
5430602
$36.41
24
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
25
HEATER GRIP ASM. (Deluxe)
2460313
Unavailable
26
BOOT,STRG.POST
5431234-070
Unavailable
27
NUT-LOCK(10)
7542122
$1.49
27
NUT-LOCK(10)
7542122
$1.49
27
NUT-LOCK(10)
7542122
$1.49
28
WASHER,WROUGHT(10)
7558302
$1.59
29
HOOP,STRG,BLK.
1011863-067
$38.71
30
BOLT(10) Substituted by 7512269
7515101
Unavailable
31
NUT(10)
7542124
Unavailable
32
CLIP ,(10)
5222672
Unavailable
33
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
34
BRKT, BOLT RETAINER
5222421
$5.52
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
36
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
37
BOLT(10)
7512298
$3.99
38
ROD END, LH Substituted by 7060166
7060151
$48.56
38
ROD END, RH Substituted by 7060167
7060152
$48.56
38
ROD END, LH Substituted by 7060166
7060151
$48.56
38
ROD END, RH Substituted by 7060167
7060152
$48.56
39
BOLT(10)
7512404
$3.99
39
BOLT(10)
7512404
$3.99
40
NUT HEX(10)
7542401
$2.39
40
NUT
7542424
$1.49
40
NUT HEX(10)
7542401
$2.39
40
NUT
7542424
$1.49
40
NUT HEX(10)
7542401
$2.39
40
NUT
7542424
$1.49
41
ROD, DRAG LINK
5333005
Unavailable
42
ROD,TIE,BLK.
5333006-067
Unavailable
43
ROD END,LH Substituted by 7060164
7060124
$48.56
43
ROD END RH Substituted by 7060165
7060125
$48.56
44
RETAINER, BOOT
5222283
Unavailable
45
BOLT(10)
7512572
$13.19
46
WASHER(10)
7555817
Unavailable
46
WASHER(10)
7555817
Unavailable
47
BUSHING
5630371
$5.03
47
BUSHING
5630371
$5.03
48
NUT LOCK(10)
7542403
$3.99
49
STRG.CTR.WELD,RH,BLK. (StarLite)
1823146-067
$42.68
49
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067 (Lite & Dlx)
1823141-067
$49.21
49
STRG.CTR.WELD,RH,BLK. (StarLite)
1823146-067
$42.68
49
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067 (Lite & Dlx)
1823141-067
$49.21
50
SCREW(10)
7515434
Unavailable
51
BUSHING, SPACER
5333009
$11.99
52
NUT, CASTLE(10)
7542523
Unavailable
53
PIN COTTER(10)
7661203
$1.49
54
NUT-5/16-18 NYLOK-Y
7542324
$1.49
55
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
56
POST,STEERING,BLK. (StarLite)
1823154-067
Unavailable
56
POST, STRG.,BLK. (Lite & Deluxe)
1823155-067
Unavailable
57
BOLT(10)
7512193
$2.39
58
RINGMOUNT,RECOIL,BLK.
5224442-067
$21.43
59
BLOCK,HANDLEBAR
5630187-067
$44.99
60
CLIP, STRG.BOOT(10)
7670073
Unavailable
61
SPEEDOMETER
3280112
Unavailable
62
SPACER
5410592
Unavailable
63
SPACER,SPEEDO.MTG.
5810442
$10.99
64
PLATE,MTG,(SPEEDO)
5211189
$12.99
65
WASHER, FLAT(10)
7558201
$5.79
66
HAIRPIN, COTTER(10)
7660701
$1.99
67
CABLE,SPEEDOMETER
3280113
Unavailable
