NOSEPAN and CONSOLE ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE (4922972297003A)

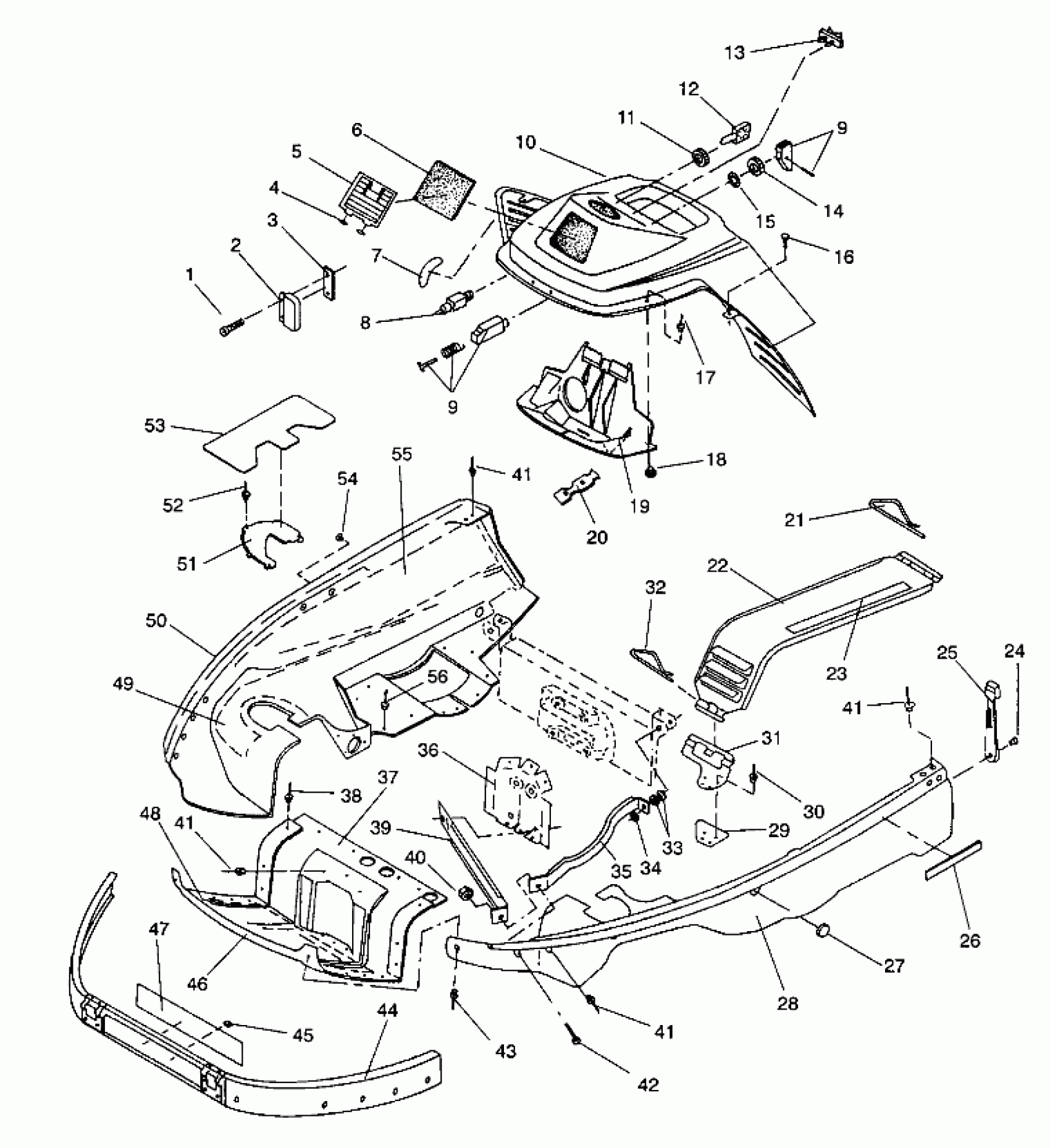

Polaris LITE - 0933433 NOSEPAN and CONSOLE ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE (4922972297003A) Diagram
#
1
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
2
REGULATOR, VOLTAGE
4060092
Unavailable
3
HEAT SINK
5210650
Unavailable
4
SEAL, O RING,(10)
5410374
$1.83
5
LOUVER, INTAKE
5431211-070
Unavailable
6
FOAM, INTAKE (Lite)
5810458
Unavailable
7
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
8
SWITCH IGNITION (Lite & StarLite)
4110038
$44.51
8
SWITCH-E/S (Deluxe)
4110061
Unavailable
9
CABLE, CHOKE(LITE) Substituted by 7080661 (Lite & Dlx)
7080405
Unavailable
9
CABLE, CHOKE(STAR) (StarLite)
7080411
Unavailable
9
CABLE, CHOKE(LITE) Substituted by 7080661 (Lite & Dlx)
7080405
Unavailable
9
CABLE, CHOKE(STAR) (StarLite)
7080411
Unavailable
10
CONSOLE
5431157-070
Unavailable
11
NUT-IGNITION SWITCH
7542807
Unavailable
12
KEY IGNITION Substituted by 5410378
4110012
$13.75
13
SWITCH,ROCKER Substituted by 4110195 (Lite Deluxe)
4110116
Unavailable
14
Nut
7080229
$19.99
15
WASHER-LOCK(10)
7571610
$3.99
16
SCREW(10)
7512253
$3.99
17
RIVET,(50)
7621336
$1.59
18
RIVET BURR(50)
7555727
$1.49
19
CONSOLE, INNER
5431214-070
$66.39
20
STRAP,TOOL COMPARTMENT (Lite)
5410425
Unavailable
21
PIN, FRONT
7080311
Unavailable
22
GUARD, CLUTCH Substituted by 5243761
5230124
Unavailable
23
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
24
RIVET,(50)
7621601
Unavailable
25
STRAP, HOOD
5410573
Unavailable
26
REFLECTOR AMBER
2670071
Unavailable
27
PLUG,CATCH HOLE
5410582
$7.27
28
NOSEPAN,LH,BLK.
5431155-070
Unavailable
29
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
30
RIVET(50)
7621449
$3.19
31
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
32
PIN (Lite)
5224440
Unavailable
32
PIN, (STAR) (StarLite)
5224448
Unavailable
33
WASHER WROUGHT(10)
7558403
$4.79
34
WASHER(10)
7555806
$1.49
35
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
35
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
36
BRKT,SUPPORT,BLK.
5222356-067
$38.19
37
TAPE, FOIL
5810476
Unavailable
38
POP RIVET(50)
7621418
$1.49
39
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
39
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
40
NUT(10)
7542124
Unavailable
41
RIVET(50)
7621472
$1.49
41
RIVET(50)
7621472
$1.49
41
RIVET(50)
7621472
$1.49
41
RIVET(50)
7621472
$1.49
42
BOLT(10)
7512297
$5.59
43
RIVET, BLIND(50)
7621467
$1.49
44
HINGE,LOWER,BLK.
2635010-067
Unavailable
45
FASTENER-U TYPE CLIP
7670040
$3.99
46
NOSEPAN, CTR. (Lite)
5431154-070
Unavailable
46
NOSEPAN,CTR,(STARLITE) (StarLite)
5431256
Unavailable
47
SCREEN
5211267-067
Unavailable
48
TAPE, FOIL (Lite & Deluxe)
5810475
Unavailable
49
TAPE, FOIL
5810477
Unavailable
50
NOSEPAN,RH,BLK.
5431156-070
Unavailable
51
COVER, RH SHOCK
5431253
Unavailable
51
COVER, LH SHOCK
5431252
Unavailable
52
RIVET(50)
7621457
$1.49
52
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
53
TAPE, FOIL,(PAN)
5810482
Unavailable
54
CLIP, DART (Nylon)
7670067
$3.99
55
KIT-CHOKE CONTROL
2200188
$24.27
55
TAPE, FOIL
5810478
Unavailable
