FRONT SUSPENSION and SKI LITE/0933433,STARLITE/0933427 and LITE DELUXE/093 (4922972297010A)

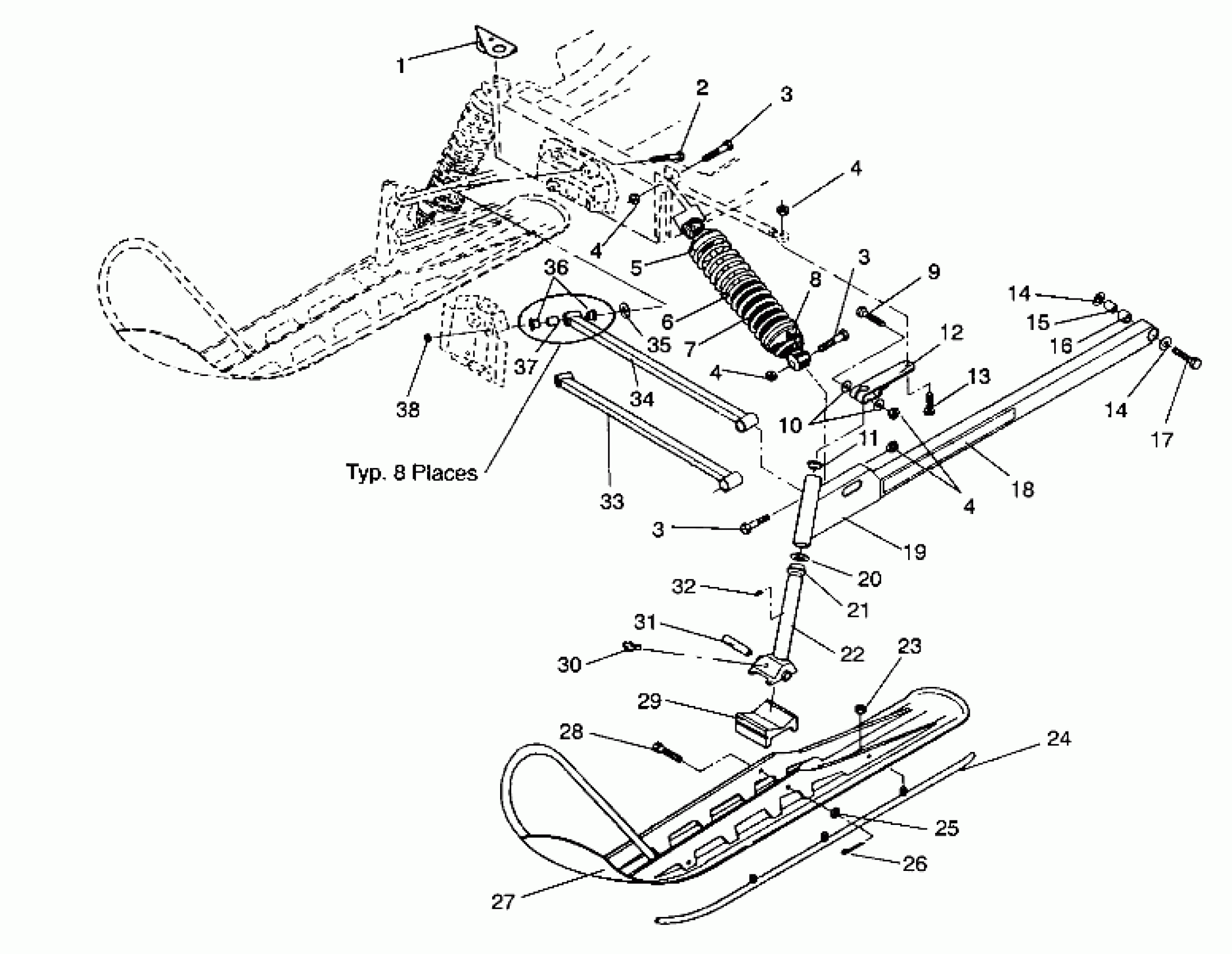

Polaris LITE - 0933433 FRONT SUSPENSION and SKI LITE/0933433,STARLITE/0933427 and LITE DELUXE/093 (4922972297010A) Diagram
#
1
BRKT,MUFF.SUPPORT
5222468-067
Unavailable
2
BOLT(10)
7515417
$4.79
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
4
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041284
Unavailable
9
BOLT(10) Substituted by 7517583
7515491
Unavailable
10
WASHER(10) Substituted by 7555832
7555851
Unavailable
11
BUSHING-FLANGE
3573909
$2.39
12
Arm, Steering
5220326-067
Unavailable
13
BOLT Substituted by 7512404
7515490
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
DECAL,LH,IFS,RED [No Longer Available] (Lite & Deluxe)
7072950
Unavailable
18
DECAL,RH,IFS,RED [No Longer Available] (Lite & Deluxe)
7072951
Unavailable
18
DECAL,RH,IFS,BLUE [No Longer Available] (StarLite)
7072953
Unavailable
18
DECAL,LH,IFS,BLUE [No Longer Available] (StarLite)
7072952
Unavailable
19
ARM,LH TRLG,BLK.
1823136-067
Unavailable
19
ARM,RH TRLG,BLK.
1823137-067
$266.49
20
WASHER SPECIAL(10)
7556509
$1.59
21
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
22
SPINDLE,BLK. Substituted by 5130919-067
6230055-067
Unavailable
23
NUT-5/16-18 NYLOK-Y
7542324
$1.49
24
SKAG,SHORT(20) (Pair)
1820267
$23.99
25
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
26
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
27
SKI, BLK,(LITE) Substituted by 1820333-067
1820333
Unavailable
28
BOLT(10)
7515462
$8.79
29
Stop, Rubber
5521231
Unavailable
30
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
31
BUSHING,PIVOT,(10)
5010158
$19.99
32
ZERK,FITTING,THREADED(10)
7080433
$1.49
33
ROD,RADIUS,BLK,BOTT.
1822083-067
Unavailable
34
ROD,RADIUS,BLK.TOP
1822082-067
Unavailable
35
WASHER(10)
7555797
$3.99
36
BUSHING, FLANGE
5431132
Unavailable
37
Bushing
5010252
$1.59
38
NUT LOCK(10)
7542403
$3.99
