ENGINE MOUNTING STARLITE/0933427 (4922972297022A)

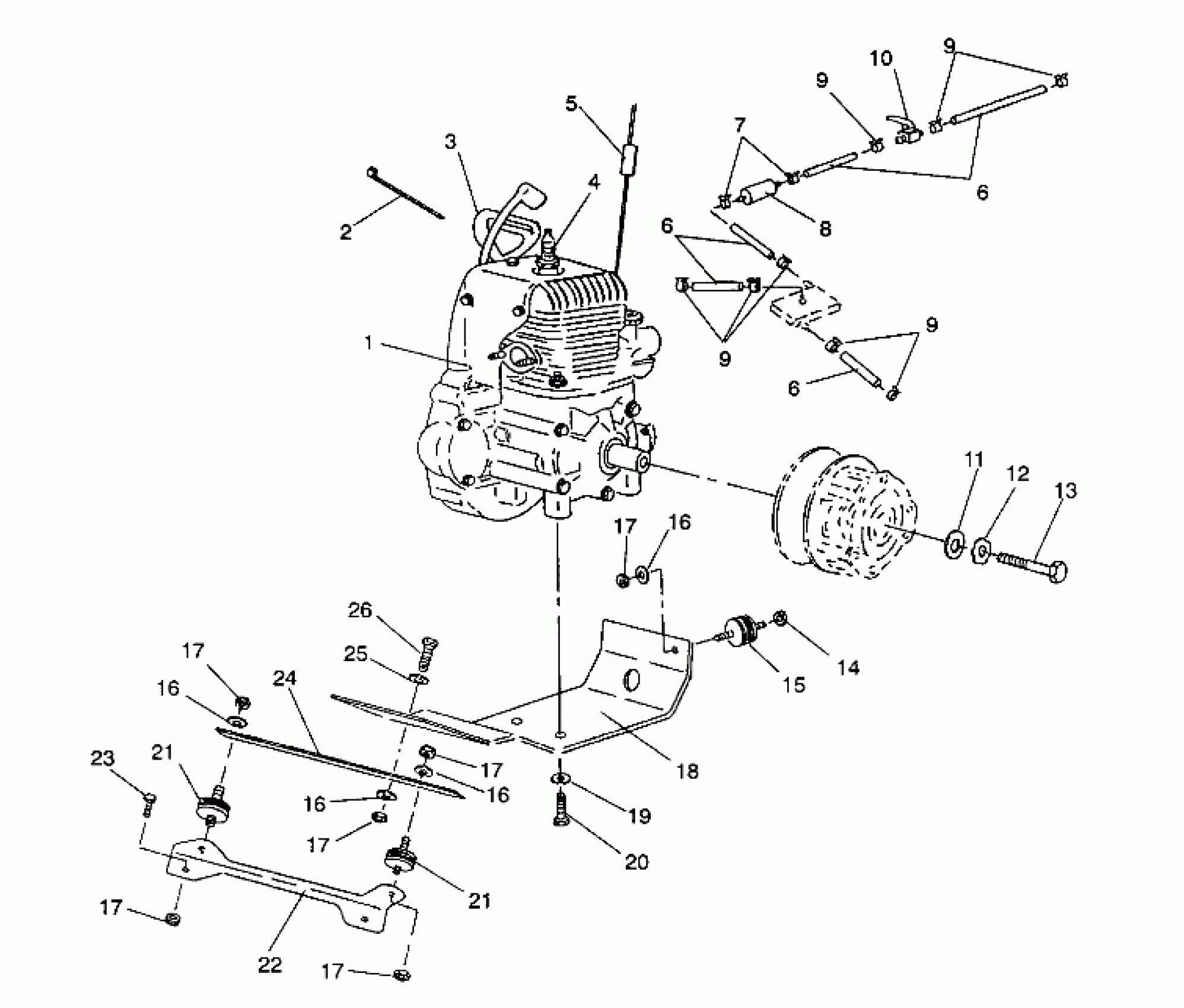

Polaris LITE - 0933433 ENGINE MOUNTING STARLITE/0933427 (4922972297022A) Diagram
#
Description
Price
1
ENG.EC25PS-07 [No Longer Available]
1211520
Unavailable
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
3
HANDLE-RECOIL
5430520
Unavailable
4
SPARKPLUG (10)
3070156
$3.99
5
CABLE, THROTTLE Substituted by 7080556
7080410
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
7
CLAMP, HOSE
7080490
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
HOSE CLAMP, RED
7080003
$1.49
9
HOSE CLAMP, RED
7080003
$1.49
9
HOSE CLAMP, RED
7080003
$1.49
9
HOSE CLAMP, RED
7080003
$1.49
10
VALVE,FUEL SHUT-OFF
7052039
Unavailable
11
WASHER,CLUTCH RETAINER
5010278
Unavailable
12
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
13
BOLT(10)
7512566
$30.79
14
NUT LOCK(10)
7542411
$3.19
15
MOUNT-MTR.
3110020
Unavailable
16
WASHER(10) Substituted by 7555806
7555720
$0.79
16
WASHER(10) Substituted by 7555806
7555720
$0.79
16
WASHER(10) Substituted by 7555806
7555720
$0.79
16
WASHER(10) Substituted by 7555806
7555720
$0.79
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
PLATE,ENG.MT,BLK.
5222539-067
$59.60
19
WASHER LOCK(10)
7553101
$3.99
20
BOLT(10)
7512539
$3.99
21
MOUNT, MOTOR
3110028
Unavailable
21
MOUNT, MOTOR
3110028
Unavailable
22
CHANNEL, ENG.MT.
5222540-067
Unavailable
23
BOLT(10)
7512457
$3.99
24
STRAP,ENG.MT,BLK.
5211266-067
$17.30
25
WASHER-LOCK(10)
7571611
$3.19
26
BOLT(10)
7512405
$3.99
