ENGINE MOUNTING LITE/0933433 and LITE DELUXE/0933431 (4922972297021A)

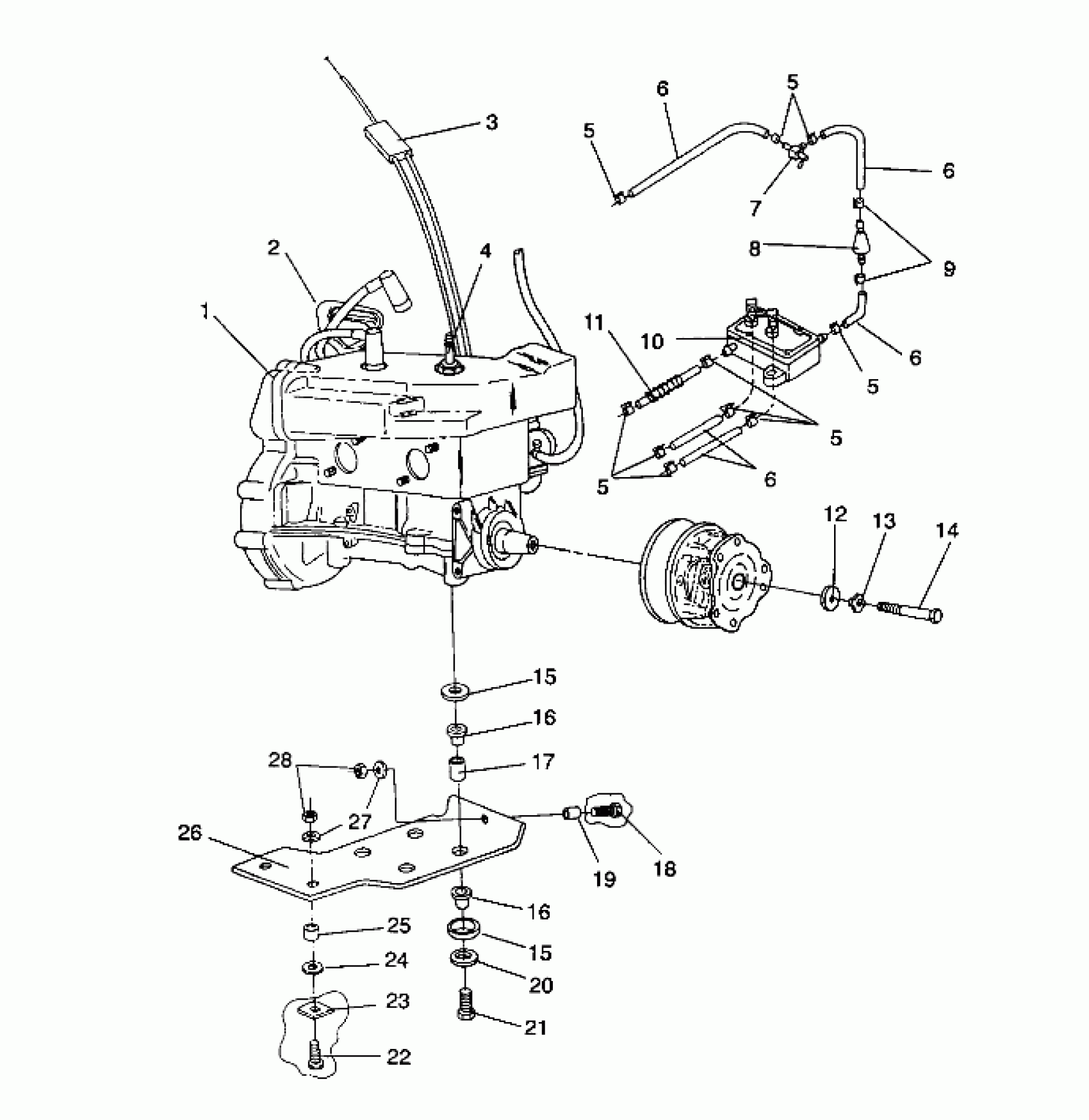

Polaris LITE - 0933433 ENGINE MOUNTING LITE/0933433 and LITE DELUXE/0933431 (4922972297021A) Diagram
#
Description
Price
1
ENG.EC34PM-02 (Deluxe)
1211522
Unavailable
1
ENG,EC34PM-04 [No Longer Available] (Lite)
1211523
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE, THROTTLE Substituted by 7080557
7080426
$154.99
4
SPARKPLUG (10)
3070156
$3.99
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
5
HOSE CLAMP, RED
7080003
$1.49
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
6
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
7
VALVE,FUEL SHUT-OFF (Lite)
7052039
Unavailable
7
VALVE,FUEL SHUT-OFF (Deluxe)
7052060
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
CLAMP, HOSE
7080490
Unavailable
10
Fuel Pump (See pg. A40)
-------
Unavailable
11
TUBE,CONVOLUTED,SVC. (Lite Deluxe)
5521278
Unavailable
12
WASHER,CLUTCH RETAINER
5010278
Unavailable
13
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
14
BOLT(10)
7512566
$30.79
15
CAP
5221901
Unavailable
15
CAP
5221901
Unavailable
16
DAMPNER-VIB.
5410320
Unavailable
16
DAMPNER-VIB.
5410320
Unavailable
17
BUSHING-MOTOR MT.
5010163
Unavailable
18
BOLT(10)
7515503
$5.43
19
BUSHING
5020397
Unavailable
20
WASHER LOCK(10)
7553101
$3.99
21
BOLT(10)
7512515
$3.19
22
BOLT(10)
7515510
$3.59
23
Plate, Spacer
5211201
$4.95
24
WASHER(10)
7555823
$3.99
25
BUSHING,THREADED
5020562
$3.83
26
PLATE,MOTOR MOUNT Substituted by 5224836
5222292
Unavailable
28
NUT LOCK(10)
7542403
$3.99
