DRIVE TRAIN ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/0933431 (4922972297015A)

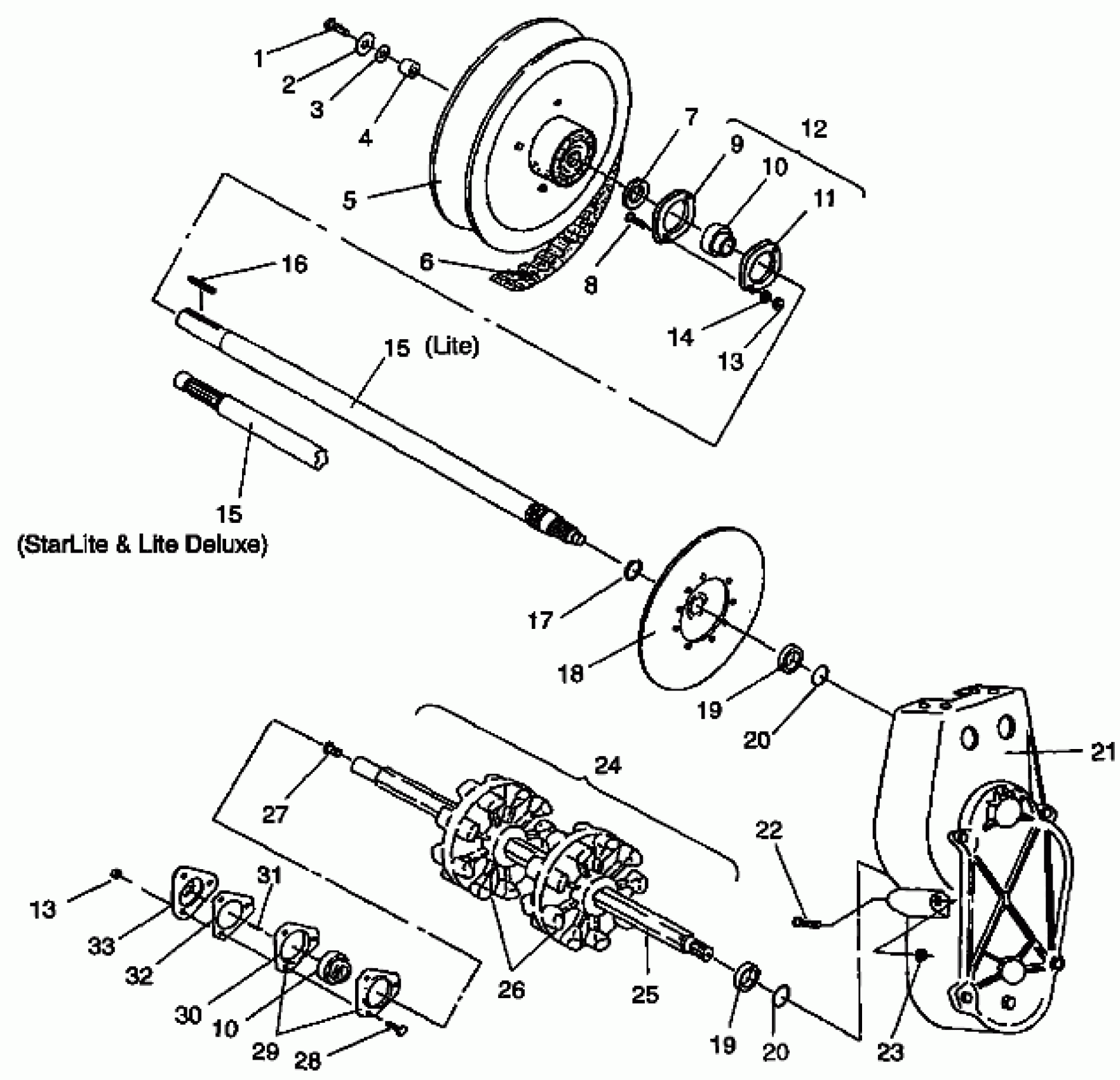

Polaris LITE - 0933433 DRIVE TRAIN ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/0933431 (4922972297015A) Diagram
#
1
BOLT(10) (StarLite & Deluxe)
7515369
$4.79
1
BOLT(10) (Lite)
7515356
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH (StarLite & Dlx)
5020645
Unavailable
4
SPACER (Lite)
5020566
$9.83
5
CLUTCH, DRIVEN,SPLINED (StarLite & Dlx)
1322145
Unavailable
5
CLUTCH, DRIVEN (Lite) (See pg. A21)
1322141
Unavailable
6
BELT, DRIVE(5) (Lite & Deluxe)
3211058
$79.99
6
BELT, DRIVE (StarLite)
3211060
Unavailable
7
WASHER SPECIAL(10) (StarLite & Deluxe)
7556509
Unavailable
7
BUSHING,MACHINERY(10) (Lite)
7555790
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,(GREASABLE) (Greasable)
5222647
$24.27
10
FLANGETTE, (2-BOLT)
5222393
Unavailable
10
FLANGETTE, (2-BOLT)
5222393
Unavailable
11
BEARING Substituted by 3514518
3514513
$64.99
12
BEARING,RELUBE,WELD. (Incl. 9-11)
1590235
Unavailable
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
15
Asm., Jackshaft (See Page A15)
-------
Unavailable
15
Asm., Jackshaft (See Page A15)
-------
Unavailable
16
KEY-SQUARE(10)
7721204
$3.19
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
Asm., Chaincase (See pg. A15)
-------
Unavailable
22
BOLT(10)
7515428
$4.79
23
NUT(10)
7542423
$3.99
24
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 24 - 26)
1590230
$285.70
25
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
26
SPROCKET, 9T
5430571
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
BOLT(10)
7512331
$3.99
29
FLANGETTE Substituted by 5222751 (Lite & Deluxe)
5222591
Unavailable
30
FLANGETTE,W/GREASE GROOVE Substituted by 5240252 (StarLite)
5222581
Unavailable
31
KEY,SPEEDO,RH DRIVE (Lite & Deluxe)
3280117
Unavailable
32
GASKET,DRIVE ADAPTOR,(10) (Lite & Dlx)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK (Lite & Dlx)
3280116
$101.17
