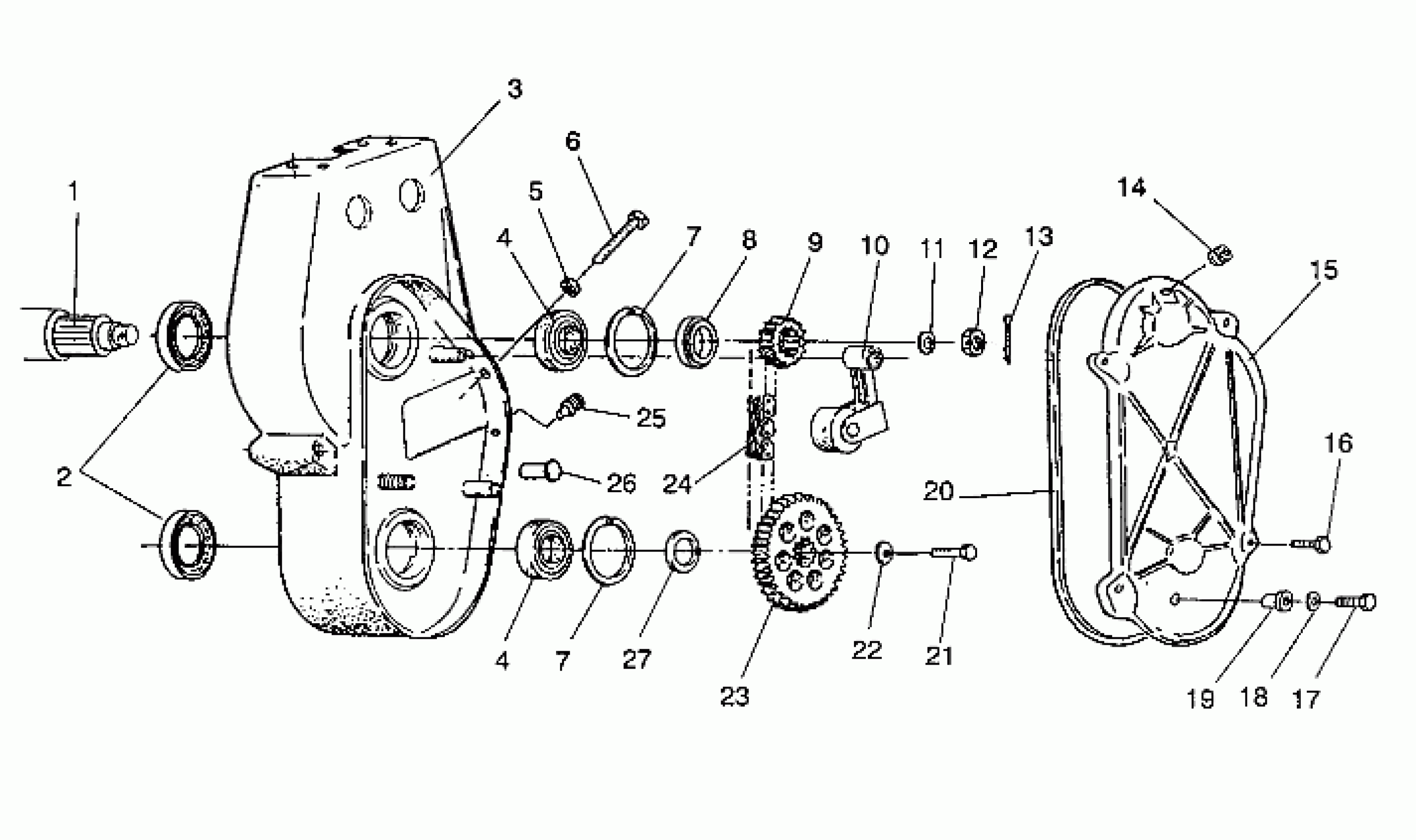

Polaris LITE - 0933433 CHAINCASE ASSEMBLY LITE/0933433,STARLITE/0933427 and LITE DELUXE/0933431 (4922972297014A) Diagram

#

Description
Price

1

JACKSHAFT ASM. (StarLite & Deluxe)

1332146-067

Unavailable

1

SHAFT ASM, INPUT (Lite)

1332134-067

$202.98

2

SEAL-OIL

3610030

$20.22

3

CHAINCASE

5130795

Unavailable

4

BEARING,CHAINCASE

3514306

Unavailable

4

BEARING,CHAINCASE

3514306

Unavailable

5

NUT(10)

7542404

$1.59

6

SCREW(10)

7515511

$3.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

SPACER, SPROCKET

5010270

Unavailable

9

SPROCKET 16 T

3221032

Unavailable

9

SPROCKET 15 T (StarLite)

3221031

Unavailable

10

TIGHTENER ASM. Substituted by 1332213

1332078

$159.99

11

WASHER, SLOTTED(10)

7571620

$7.19

12

NUT, SLOTTED(10)

7542810

$3.19

13

COTTER PIN(10)

7661401

$1.49

14

PLUG(10)

7051520

$8.79

15

COVER

5130817

$33.33

16

SCREW(10)

7512242

$2.39

17

SCREW(10)

7511909

$3.99

18

WASHER, FLAT(10)

7558201

$5.79

19

NUT-WELL(10)

7541918

Unavailable

20

GASKET-CHAINCASE

5410277

$24.99

21

SCREW(10)

7515350

$3.97

22

WASHER(10)

7571618

$6.39

23

SPROCKET 39 T (Lite & Deluxe)

3222034

Unavailable

23

SPROCKET-41T (StarLite)

3222037

Unavailable

24

CHAIN 64 PITCH (Lite & Deluxe)

3224023

Unavailable

24

CHAIN 66 PITCH (StarLite)

3224024

Unavailable

25

PLUG, MAGNETIC

7051518

$12.35

26

CAP, STUD COVER

5020569

Unavailable

27

BUSHING(10)

7555864

$2.39
