SUSPENSION Indy Lite/Star Lite (4921332133013A)

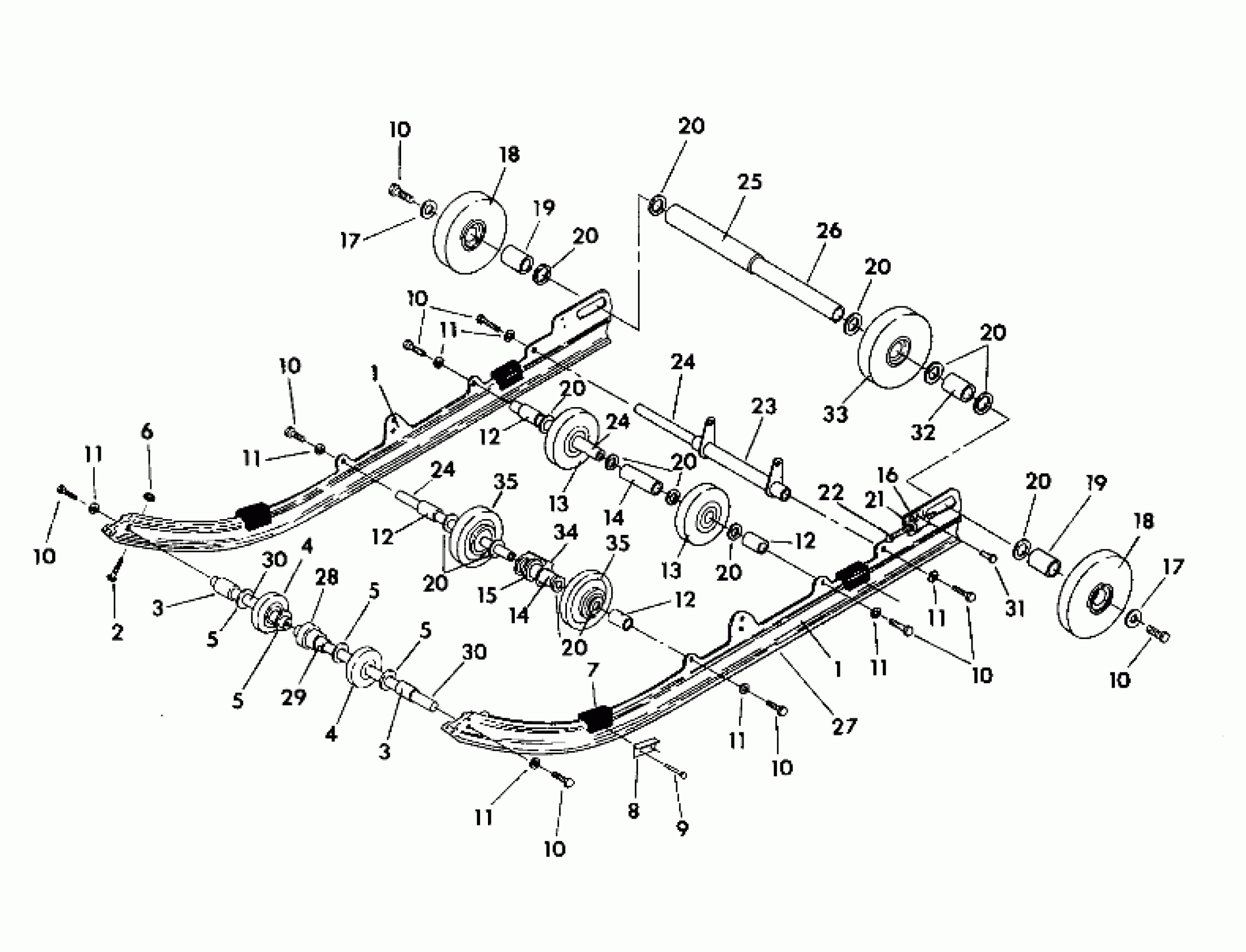

Polaris LITE - 0923033 SUSPENSION Indy Lite/Star Lite (4921332133013A) Diagram
#
1
RAIL ASM, RH
1540674
Unavailable
1
RAIL ASM, LH
1540673
Unavailable
1
RAIL ASM, RH
1540674
Unavailable
1
RAIL ASM, LH
1540673
Unavailable
2
SCREW(10)
7512227
$3.19
2
SCREW(10)
7512227
$3.19
3
TUBE, BLK.
5332845-067
Unavailable
3
TUBE, BLK.
5332845-067
Unavailable
4
WHEEL, BOGIE
1594036
Unavailable
4
WHEEL, BOGIE
1594036
Unavailable
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
6
NUT-LOCK(10)
7542122
$1.49
7
BUMPER, RAIL
5810554
$7.27
8
REINF., BUMPER
5222629
$13.75
9
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
13
WHEEL, IDLER
1543018
$56.65
13
INSERT, WHEEL,(10)
5431531
$9.70
13
WHEEL, IDLER
1543018
$56.65
13
INSERT, WHEEL,(10)
5431531
$9.70
14
TUBE, SUSPENSION
5332783
Unavailable
14
TUBE, SUSPENSION
5332783
Unavailable
15
ROLLER-SPRING BOGIE
5430629
Unavailable
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
17
WASHER FLAT(10)
7555732
Unavailable
17
WASHER FLAT(10)
7555732
Unavailable
18
WHEEL, IDLER (Star)
1594037
Unavailable
18
WHEEL, IDLER, RED Substituted by 1594039 (Indy)
1594041
Unavailable
18
WHEEL, IDLER (Star)
1594037
Unavailable
18
WHEEL, IDLER, RED Substituted by 1594039 (Indy)
1594041
Unavailable
19
SPACER
5330153
Unavailable
19
SPACER
5330153
Unavailable
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
20
MACHINERY BUSHING(10)
7556301
$3.19
21
NUT(10)
7542404
$1.59
22
BOLT(10)
7515459
$5.59
23
ARM,REAR PIVOT
1540493-067
Unavailable
24
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
24
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
24
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
25
SPACER Substituted by 5330152-067 (Star)
5330152
Unavailable
25
TUBESPACER,CTR.IDLER (Indy)
5330170
Unavailable
26
SHAFT,REAR IDLER
5020416
Unavailable
27
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
28
LIMITER,ROLL.SPRING
5431283
Unavailable
29
TUBE
5332844-067
Unavailable
30
SHAFT, PIVOT ARM
5020410
$8.73
30
SHAFT, PIVOT ARM
5020410
$8.73
31
RIVET,(50)
7621501
$2.39
32
TUBESPACER,CTR,OUTSIDE (Lite)
5330171-067
$16.99
33
WHEEL, IDLER Substituted by 1594079-070 (Lite)
1594021
Unavailable
34
RETAINER,SPRING,BLK.
5222369-067
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
35
TRACK Substituted by 5410614
5410579
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
35
TRACK Substituted by 5410614
5410579
Unavailable
