Description

Price

1

PUMP, OIL (Incl. 2-9)

3084255

Unavailable

2

NUT(10)

3083120

$3.19

3

WASHER-SPRING(10)

3083121

$299.99

4

Lever, Control

3084256

$32.15

5

SPRING-RETURN

3083123

Unavailable

6

COLLAR, CAMSHAFT(10)

3083445

$2.39

7

SCREW-AIR VENT

3083125

Unavailable

8

PACKING(10)

3083126

$4.03

9

O RING

3083127

Unavailable

10

BUSHING,(OIL PUMP)

3083599

$22.39

11

SPACER

3083130

$1.59

12

Gear, Small

3083600

Unavailable

13

SCREW&WASHER,(10)

3083783

$2.39

14

PIPE, RUBBER Substituted by 3083446

3083139

Unavailable

14

PIPE, RUBBER Substituted by 3083446

3083139

Unavailable

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

16

SPACER #3

3083673

Unavailable

16

SPACER #2

3083672

Unavailable

16

SPACER #1

3083671

Unavailable

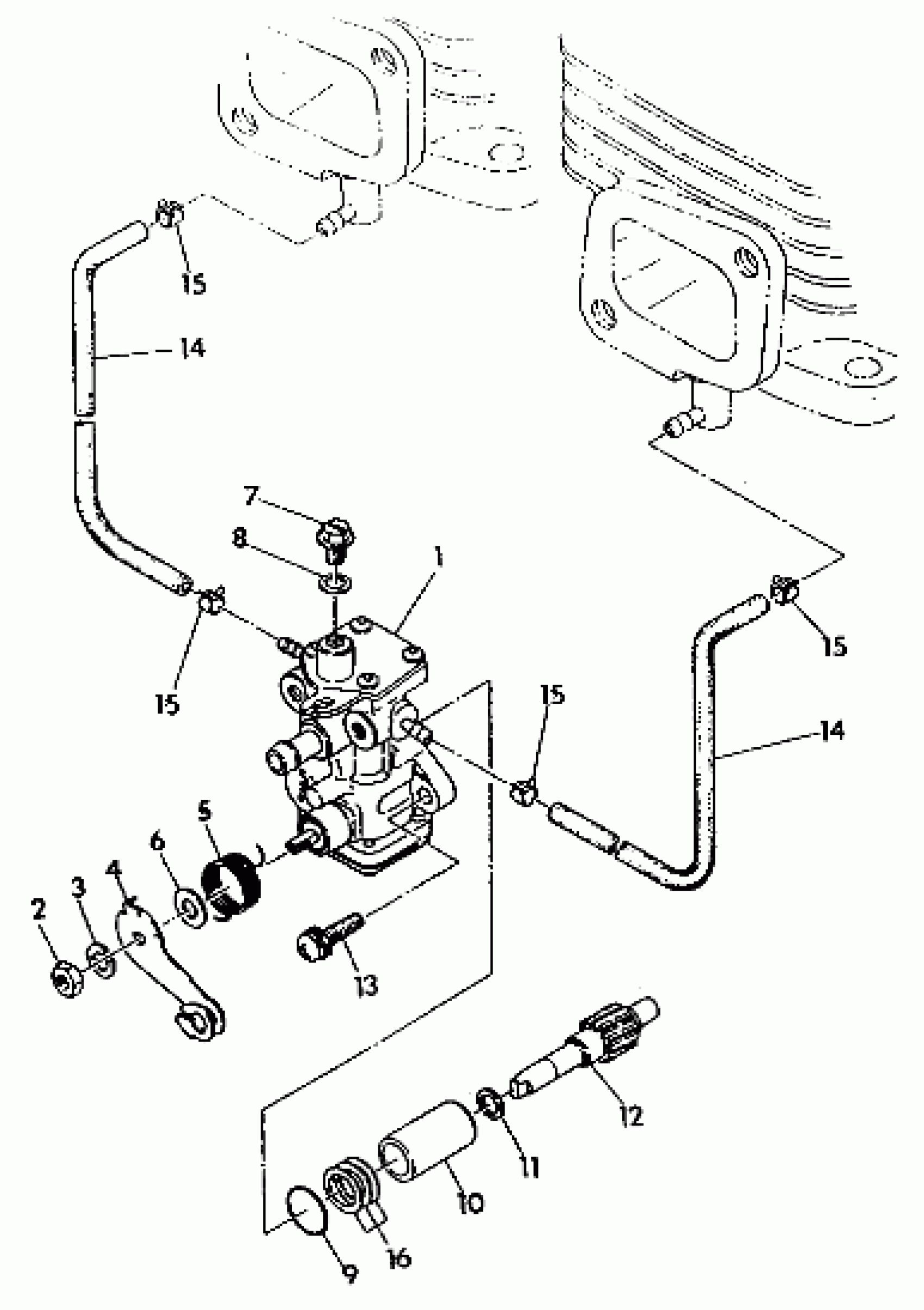

Polaris LITE - 0923033 OIL PUMP Indy Lite (4921332133033A) Diagram

PUMP, OIL (Incl. 2-9)

NUT(10)

WASHER-SPRING(10)

Lever, Control

SPRING-RETURN

COLLAR, CAMSHAFT(10)

SCREW-AIR VENT

PACKING(10)

O RING

BUSHING,(OIL PUMP)

SPACER

Gear, Small

SCREW&WASHER,(10)

PIPE, RUBBER Substituted by 3083446

PIPE, RUBBER Substituted by 3083446

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

SPACER #3

SPACER #2

SPACER #1
