Description

Price

1

PLATE ASM. (Incl. 1-9,13-15)

3084294

Unavailable

2

COIL,LIGHT(STATOR 1)

3083976

Unavailable

3

Coil, Exciting

3083422

Unavailable

4

SCREW & WASHER

3083423

$3.19

5

SCREW&WASHER ASM.(10)

3083736

$1.49

6

Clamp

3081296

Unavailable

7

SCREW&WASHER ASM(10)

3081256

$3.19

8

HARNESS, WIRE

3084295

Unavailable

9

Grommet

3082969

Unavailable

10

FLYWHEEL (Incl. 11-12)

3083997

Unavailable

11

BLOWER

3081269

$73.02

12

BOLT W/WASHER

3081270

Unavailable

13

SCREW&WASHER,(10)

3081260

$3.19

14

COUPLER,MALE

3081513

$19.99

15

COUPLER, 3P

3083323

Unavailable

16

SCREW & WASHER ASSY(10)

3081972

Unavailable

17

CDI UNIT

3083722

Unavailable

18

CAP SPARK PLUG,(10)

4020129

$9.70

19

NUT-RUBBER

3083240

Unavailable

20

SCREW&WASHER,(10)

3083784

$2.39

21

CLAM(10)

3083187

Unavailable

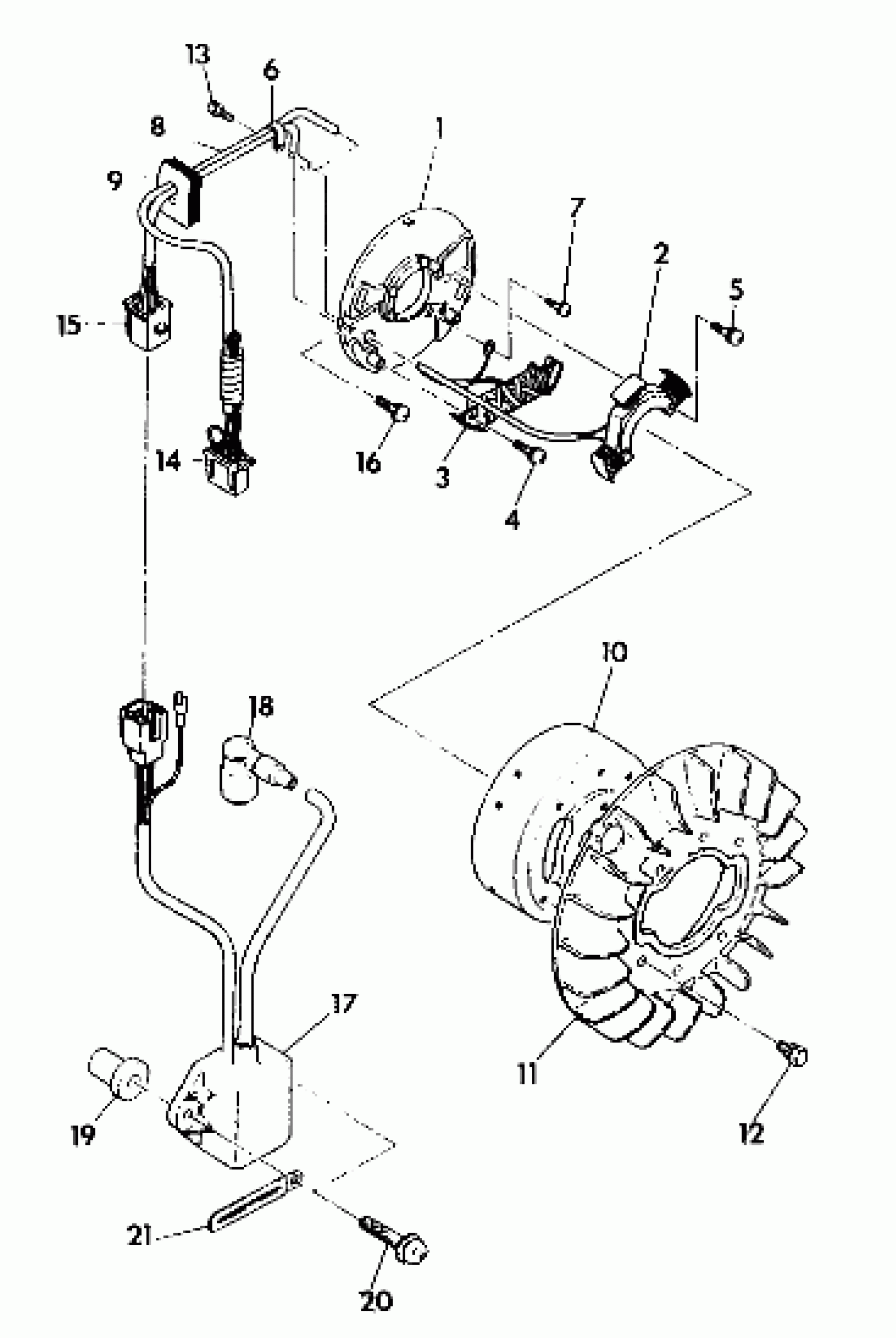

Polaris LITE - 0923033 MAGNETO Star Lite (4921332133036A) Diagram

PLATE ASM. (Incl. 1-9,13-15)

COIL,LIGHT(STATOR 1)

Coil, Exciting

SCREW & WASHER

SCREW&WASHER ASM.(10)

Clamp

SCREW&WASHER ASM(10)

HARNESS, WIRE

Grommet

FLYWHEEL (Incl. 11-12)

BLOWER

BOLT W/WASHER

SCREW&WASHER,(10)

COUPLER,MALE

COUPLER, 3P

SCREW & WASHER ASSY(10)

CDI UNIT

CAP SPARK PLUG,(10)

NUT-RUBBER

SCREW&WASHER,(10)

CLAM(10)
